Plan 36674

Morris Ferry Overlook 2

My Favorites
Write a Review
  • Modern House Plan - Morris Ferry Overlook 2 36674 - Right Exterior Icon_ionic-ios-expand
  • Modern House Plan - Morris Ferry Overlook 2 36674 - Front Exterior Icon_ionic-ios-expand
  • Modern House Plan - Morris Ferry Overlook 2 36674 - Rear Exterior Icon_ionic-ios-expand
  • Modern House Plan - Morris Ferry Overlook 2 36674 - Left Exterior Icon_ionic-ios-expand
  • Modern House Plan - Morris Ferry Overlook 2 36674 - Right Exterior Icon_ionic-ios-expand
  • Modern House Plan - Morris Ferry Overlook 2 36674 - 1st Floor Plan Icon_ionic-ios-expand
  • Secondary Image - Modern House Plan - Morris Ferry Overlook 2 36674 - 2nd Floor Plan Icon_ionic-ios-expand

Photographs may show modifications made to plans. Copyright owned by designer.

  • Modern House Plan - Morris Ferry Overlook 2 36674 - Right Exterior
  • Modern House Plan - Morris Ferry Overlook 2 36674 - Front Exterior
  • Modern House Plan - Morris Ferry Overlook 2 36674 - Rear Exterior
  • Modern House Plan - Morris Ferry Overlook 2 36674 - Left Exterior
  • Modern House Plan - Morris Ferry Overlook 2 36674 - Right Exterior
  • Modern House Plan - Morris Ferry Overlook 2 36674 - 1st Floor Plan
  • Secondary Image - Modern House Plan - Morris Ferry Overlook 2 36674 - 2nd Floor Plan
  • At a glance
  • Square Footage: Total Living 893 Square Feet
  • Bedrooms 1 Bedrooms
  • Baths Full 1 Full Baths
  • Floors 2 Floors
  • Garage Bays Min 2 Car Garage

Floor plan

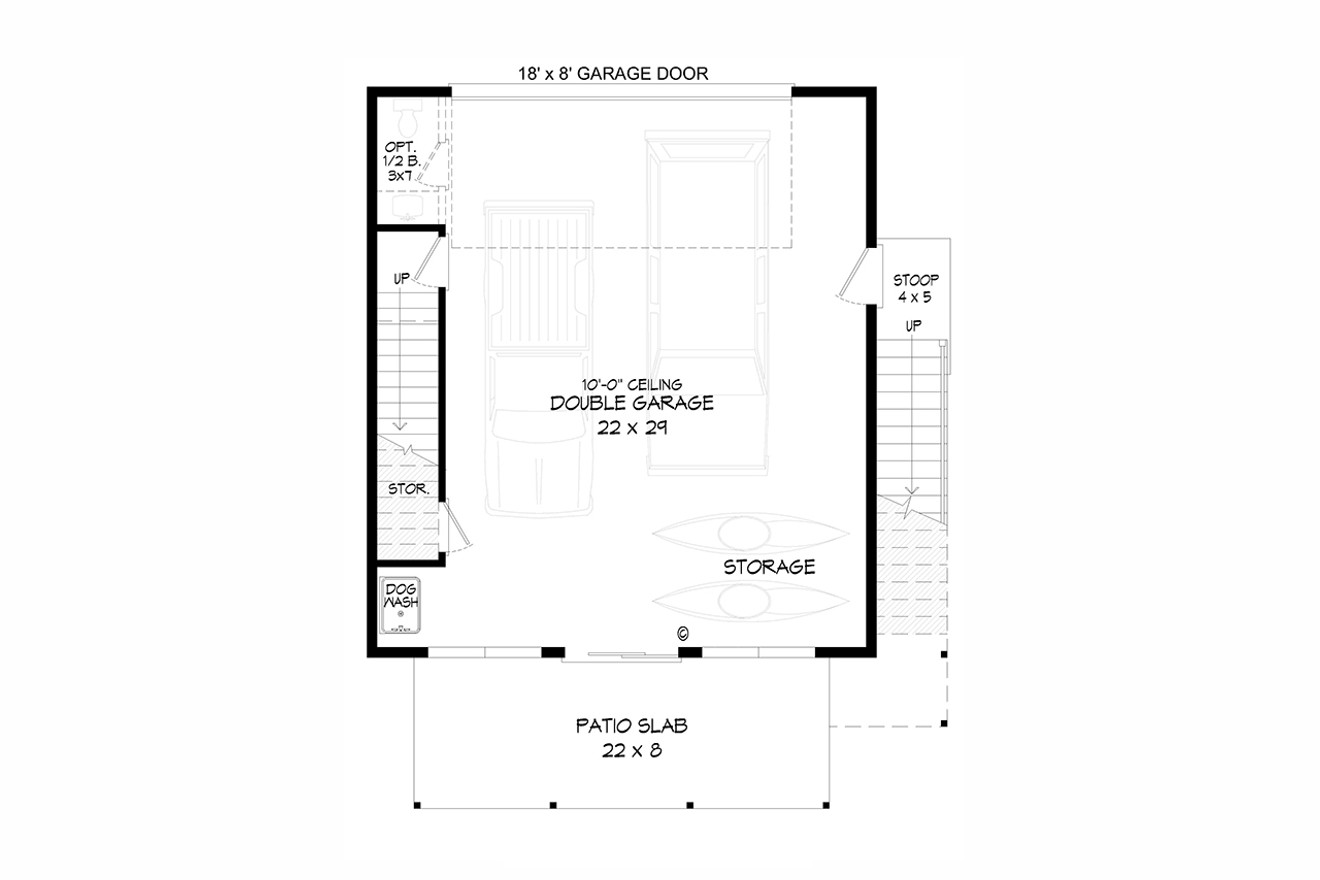

Modern House Plan - Morris Ferry Overlook 2 36674 - 1st Floor Plan Icon_ionic-ios-expand

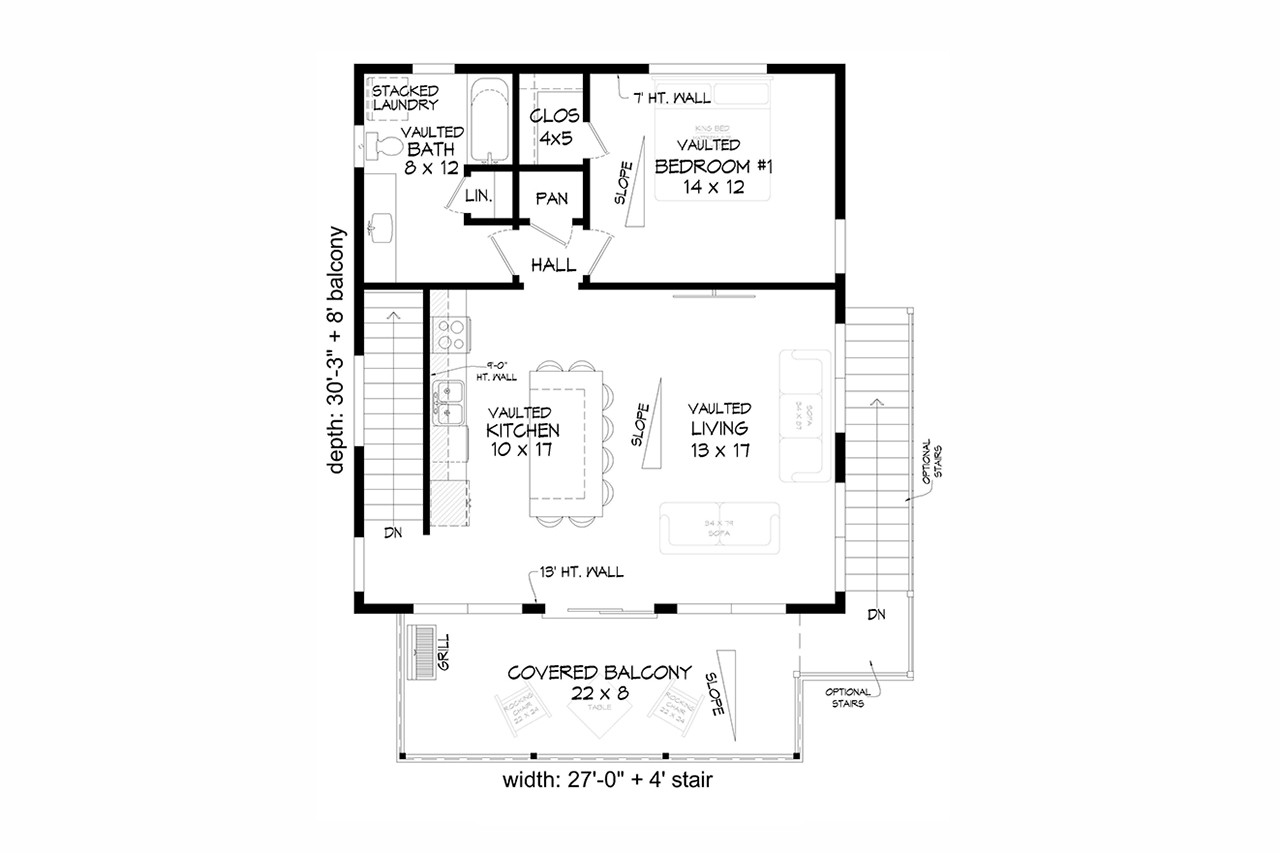

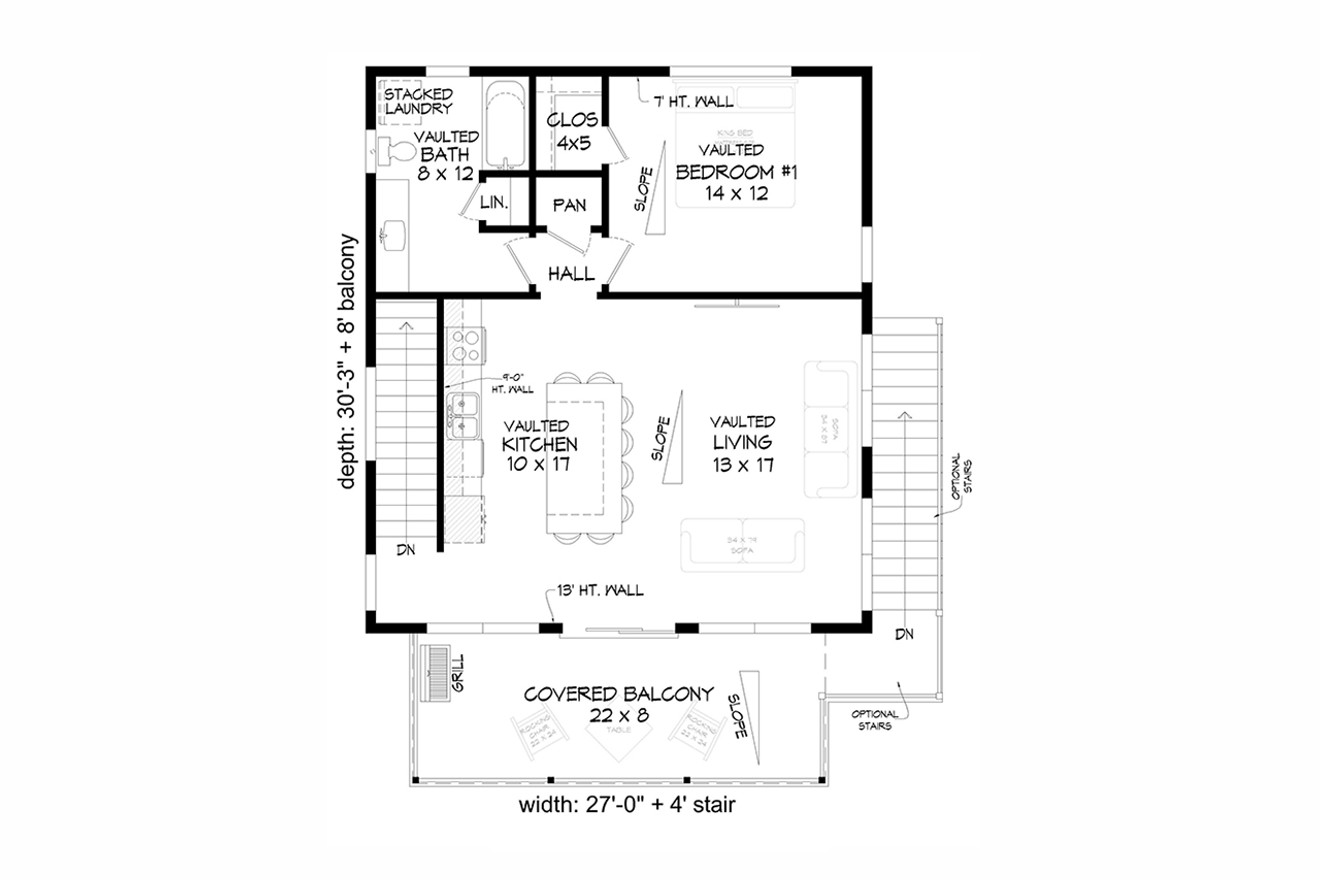

Secondary Image - Modern House Plan - Morris Ferry Overlook 2 36674 - 2nd Floor Plan Icon_ionic-ios-expand

Contact HPC Experts

Have questions? Help from our plan experts
is just a click away.

To help us answer your questions promptly, please copy and paste the following information in the fields below.

Plan Number: 36674
Plan Name: Morris Ferry Overlook 2
Your submission has been received!
item-icon

Free modification quote

Call Us 866-688-6970 or fill out our form.

Get Started
item-icon

Cost to build report

How Much Will This Plan Cost To Build?

Find Out
GetQuote

Free modification quote

Are you looking for additional plan options?

Get a Quote

Have questions? Prefer to order by phone? Give us a call: 1-866-688-6970

Adding to Cart The item has been added

Plan details

Basic Details

Building Details

Interior Details

Garage

What's Included in a Plan Set?

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.

Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.

Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.

Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.

New to Plan Buying?

What You Need to Know About Purchasing Plans



You are about to embark on an exciting process, enjoy it!



Here is what you need to know about purchasing house plans from HPC:

 • Each designer and architect plans are created with their own unique style and content. Please be sure to read the "What's included in a Plan Set" tab, and if you don't see what you are looking for, be sure to give us a call.
 • The designs are not engineered. Check with the building department where the structure is being constructed to find out if an engineer's review is required. We can help facilitate engineering for your plan if you are unable to find a local professional who can assist you.
 • Your building department may also require a site plan of your lot be included with your submittal for a building permit. A local design

professional in your area should be able to help you with this as well as evaluating your chosen plan to make sure it meets the local building requirements for weather and seismic conditions.
 • Please read and understand your licensing agreement. This will clearly define what you can and can not do with your construction documents.
 • Electronic formats of packages sales (PDF & CAD Files) are final. Printed construction documents may be exchanged with an exchange fee within 30 days of purchase.
 • Unless purchasing an additional build license (one time additional or multi-build additional) you may build the structure one time. Ownership of the construction documents can not be transferred or sold.
 • Unless purchasing a printable package, you may not make additional copies of the plan without the permission of the designer.

Plan Packages Explained



Ready to purchase plans and unsure which construction package to choose? We hope the following can help you decide. Please note: Plan packages vary and may not be available on all plans.



1 Set Study Package


This is a single set of prints will allow you to completely review the plan, get accurate quotes for construction costs, and contemplate custom design changes you may wish to make. Study sets are marked Not For Construction and without the license necessary to legally build the home. Don't worry though, we allow a 100% upgrade credit towards a buildable licensed construction package within one year of your 1 Set Study Package purchase.



5 and 8 Set Print Packages


These are licensed print packages of the construction documents printed and shipped to you.



PDF Print Package


This PDF package is a non-modifiable, print only PDF file that saves time, gas, money, and paper! Many contractors and building jurisdictions are working with digital formats of the construction documents. The PDF print package allows for you or your contractor to distribute the construction documents to sub-contractors, use electronic submittals to apply for the building permit, and print the sets you need when you need them.



Plans Now

Don't wait - get your plans NOW! This digital plan package is a downloadable Print PDF Package (non-modifiable, print only). Includes a single build license - electronically signed and emailed to you immediately after placing your order - with permissions to make copies of the plan locally as needed.



PDF Master


An unlocked modifiable PDF file. Same conveniences as the PDF print package with the added benefit which allows your local professional to make engineering mark-ups or design changes using compatible software.



CAD Electronic Files


By using CAD compatible software that use .dwg or .dxf file formats enables you or a local professional to modify the construction documents and integrate those changes throughout the entire plan. Once the modifications or engineering is incorporated into your design, you can reproduce as many copies of the plan needed to build the structure.





Still unsure which package to choose? You may want to discuss this with your builder or give us a call.

How to Evaluate a Plan



When looking at plans, most often it's the exterior profile that will first grab your attention. You love the exterior, it's exactly what you envisioned, but what about the inside of the design? It's important to spend some time and digest the design's interior elements. Here are a few considerations to think about when evaluating if this is the right plan for you.



 • First off, think about how you live in your home.
 • Do you or your family prefer to have one or two places to gather all together, or do you prefer to have more private places within your home.
 • Consider how you move through the home in your day to day life. Visually walk through the front door, what do you walk through or by? Do the same from your back door and garage entrances.
 • Is your family life more formal or casual and do the living spaces of the design complement your lifestyle?
 • Will your existing furniture fit within the spaces?
 • If you have a family, do you want the master suite close to the secondary bedrooms or separated?
 • Do you entertain? Are there elements within the floor plan that allow for entertaining with ease?
 • How do you take care of laundry? Would you prefer the laundry room to be close by the kitchen, garage, or close to the bedrooms?
 • Storage space? Is there enough?
 • Consider your access to the outside? Do you want to extend your indoor living to the outside? Is there adequate porches or patios for how you want to enjoy your yard? Where will you place your grill or patio furniture?
 • The view? What are you going to see when you look out your windows? Need more privacy or need more accessibility to a view?
 • Make sure your garage will accommodate your cars, RV, or boat. Adequate storage? Do you want or need a door to the exterior beyond the opening garage doors? Utility sink? Space for an additional refrigerator or freezer?
 • Consider things about your current home/residence that you don't like. By pin pointing these areas of your current home that you don't care for, you can make sure they are addressed in the next.


After reviewing giving it careful consideration you may find that the plan would be perfect with a few design changes. HPC can certainly help you with that with our customization services.

The Customization Process



So you've found that almost perfect design, and find yourself saying, "if only". Whether it's changing the size of a room, adding space or features, or moving things around, we can help you take that almost perfect design and make it perfect for you.



It's exciting to create a plan to fit your exact needs and wants whether it's your home, garage or even a potential investment property.



When you locate your plan, select the "Get Started" button located on the plan detail page. Here you will be able to share with us the changes to the interior and/or the exterior of the design. You can even upload a sketch if you have one. Complete the necessary contact information and select "Submit Request".



HPC will then forward your request to a designer to evaluate your changes and provide a quote within two business days. HPC is a "true quote" plan website. That means HPC will not mark-up the modification quote, we want to help keep costs down for you!

Morris Ferry Overlook 2 - 36674

Legacy Home Plans

$695.00
(No reviews yet) Write a Review
SKU:
107 - 0076-817-917
Plan Number:
36674
Date Added:
11/01/2024
Date Modified:
11/01/2024
Designer:
orders@legacyhomeplans.com
Designer Plan Title:
0076-817-917
Plan SKU:
0076-817-917
Plan Name:
Morris Ferry Overlook 2
Note Plan Packages: Plans Now:
PDF Download!
Max Price:
1225.00
Min Price:
695.00
Pricing Set Title:
A (0-1000)
Structure Type:
Single Family
Square Footage: Total Living:
893
Square Footage: 1st Floor:
76
Square Footage: 2nd Floor:
817
Square Footage: Garage:
741
Square Footage: Balcony:
176
Floors:
2
FLOORS_filter:
2
Bedrooms:
1
BEDROOMS_filter:
1
Baths Full:
1
FULL BATHROOMS_filter:
1
Ridge Height:
26'6"
Overall Exterior Depth:
30.3
Overall Exterior Width:
31
Main Floor Ceiling Height:
10'
Second Floor Ceiling Height:
13'
Available Foundations:
Concrete Slab
Default Foundation:
Concrete Slab
Available Walls:
2x6 Wood Frame
Default Wall:
2x6 Wood Frame
Ext Wall Material:
Lap Siding
Lot Type:
Front View
Lot Type:
Side View
Lot Slope:
Level Lot
Lot Type:
View Lot
Roof Framing:
Stick
Snow Roof Load:
20.00
Roof Pitch:
2.50/12
Primary Style:
Modern
Secondary Styles:
Contemporary
Secondary Styles:
Saltbox
Collections:
Tiny House Plans
Collections:
Accessory Structures
Master Suite Features:
Second Floor Master Suite
Master Suite Features:
Walk In Closet
Interior Features:
Casual or Open Style Living Room
Interior Features:
Great Room
Kitchen Features:
Eating Bar or Peninsula
Kitchen Features:
Kitchen Island
Kitchen Features:
Walk-In or Wall Pantry
Utility Room Features:
Close to Bedrooms
Utility Room Features:
Close to Kitchen or Garage
Utility Room Features:
Second Floor Utility Room
Garage Type:
Attached
Garage Orientation:
Rear Entry
Garage Bays Min:
2
Garage Bays Max:
2
GARAGE BAYS_filter:
2
Garage Features:
Oversized
Garage Features:
Storage
Exterior & Porch Features:
Covered Patio
Exterior & Porch Features:
Balcony
Search Keywords:
Dog Friendly
Styles:
Modern House Plans
Styles:
Contemporary House Plans
Styles:
Saltbox House Plans
Collections:
2 Story House Plans
Collections:
View Lot House Plans
Collections:
Small House Plans
Product Rank:
524
Regions:
Southeast House Plans/Tennessee Home Plans

Morris Ferry Overlook 2 is a modern style house plan, masterfully designed to combine form and function in a compact yet captivating two-story layout. With an impressive exterior of sleek lap siding and large windows that allow natural light to flood the interior spaces, this home stands out in any environment. The front facade is graced by a covered patio and a charming upper balcony, with central doors inviting you in, creating a visually appealing entrance that hints at the design marvels inside.

Step through the front doors, and you’re greeted by the main level's cleverly arranged layout. Here, an oversized, rear-load two-car garage offers not only generous parking but also ample storage options. In fact, extra storage space is thoughtfully included, with a dedicated storage room tucked beneath the stairs. Practicality meets innovation in this ground floor design, as the garage also boasts an optional half bathroom and a dedicated dog wash station. This pet-friendly feature ensures furry family members feel just as welcome as their human counterparts, making Morris Ferry Overlook 2 an ideal choice for pet lovers.

For those who appreciate options, there are two ways to ascend to the second level: a set of interior stairs from the garage, or an optional exterior staircase that leads directly to the covered balcony. This flexibility in design is perfect for entertaining, providing guests with easy access to the upper level while keeping the garage a private space for the homeowner.

Upstairs, the second floor transforms into a stunning open concept living space, defined by a sloped ceiling that adds a sense of grandeur and airiness. Large windows continue the theme of inviting the outdoors in, bathing the room in light and framing scenic views. The heart of this home is the kitchen, which stands as a testament to smart, multifunctional design. A spacious central island seats up to eight people comfortably, making it both a dining area and a practical workspace. Whether hosting a casual dinner with friends or preparing meals for yourself, the island is the true centerpiece of this modern floor plan, ensuring social interaction and functionality in equal measure.

Adjacent to the main living space is a hallway that leads you to the private quarters. At the end of the hallway, you’ll find a neatly tucked-away pantry, ideal for keeping the kitchen clutter-free and organized. To one side of the pantry is a well-appointed bathroom, which includes a large vanity and a linen cabinet for convenience. The shower and tub combination provide a touch of luxury, and there's also room for a stacked washer and dryer, transforming this compact house plan into a highly efficient home design.

The bedroom across from the bathroom serves as a serene retreat. It features two windows that flood the space with natural light, enhancing the airy ambiance created by the high ceilings. A small walk-in closet adds a functional and stylish storage solution, making the most of the available space without sacrificing comfort.

Morris Ferry Overlook 2 encapsulates modern living with a focus on efficiency, elegance, and adaptability. This 893 sq ft, one-bedroom floor plan is a testament to thoughtful design, proving that a smaller footprint can still offer the amenities and luxuries of a larger home. Whether you’re a first-time homeowner, a couple looking for a retreat, or someone seeking a modern, minimalist lifestyle, this home plan delivers everything you need with style and sophistication.

Second Floor Ceiling Height: Vaulted 7'-13' Secondary Roof Pitch: 1/12

1 Set Package

One printed set of construction drawings. Includes a single build license.

1 Set Study Package

A single review set of the construction drawings marked Not For Construction and do not include a license to build. Upgrade to a licensed construction package or sign on for modifications within 1 year of purchase and received a 100% upgrade credit.

3 Sets

Three printed sets of construction drawings. Includes a single build license.

3 Set Package

Three printed sets of construction drawings. Includes a single-build license.

4 Sets

Four printed sets of construction drawings. Includes a single build license.

3 Sets + PDF Print

Three printed sets of construction drawings plus a Print PDF (non-modifiable). Includes a single build license.

4 Set Package

Four printed sets of construction drawings. Includes a single build license.

5 Set + Print PDF

Five printed sets of construction drawings plus a Print PDF (non-modifiable, print only). Includes a single build license.

5 Sets + Print PDF

Five printed sets of construction drawings plus a Print PDF (non-modifiable, print only). Includes a single build license.

5 Set Package

Five printed sets of construction drawings. Includes a single build license.

5 Set with PDF

Five printed sets of construction drawings plus a PDF copy of the construction drawings.

5 Sets with PDF

Five printed sets of construction drawings plus a PDF copy of the construction drawings.

6 Set Package

Six printed sets of construction drawings. Includes a single build license.

8 Set + Print PDF

Eight printed sets of construction drawings plus a Print PDF (non-modifiable, print only). Includes a single build license.

8 Set Package

Eight printed sets of construction drawings. Includes a single build license.

8 Sets with PDF

Eight printed sets of construction drawings plus a PDF copy of the construction drawings.

CAD + PDF

A digital plan package which includes both CAD (DWG) and PDF Files. Includes a single build license which allow the plans to be modified and reproduced locally.

CAD + PDF Unlimited

A digital plan package which includes both CAD (DWG) and PDF Files and includes an unlimited build license.

CAD Masters

A digital copy of the construction drawings in a DWG file format. Includes a single build license with permissions which allow the plan to be modified and reproduced locally. CAD Masters are emailed saving shipping costs and time.

CAD Package

A digital copy of the construction drawings in a DWG file format. Includes a single build license with permissions which allow the plan to be modified and reproduced locally. CAD Packages are emailed saving shipping costs and time.

CAD w/Multi-Use License

A digital copy of the construction drawings in a DWG file format. Includes a multiple build license with permissions which allow the plan to be modified and reproduced locally. CAD Packages are emailed saving shipping costs and time.

Concept Plan Package

Includes both PDF and DWG files of the Elevations, Floor Plan(s), and Roof Outline which can be used by a local design professional to complete the construction documents to site specific requirements, conditions and building practices. Includes a non-transferable unlimited build license.

Construction Package

Five printed sets of construction drawings that include a material list and a PDF (small size).

Master Builder CAD Set

A digital plan package which includes both the PDF Master and CAD Master (DWG) and includes an unlimited build license.

PDF Bid Set

A digital review set for bidding and personal study in a PDF format. Marked Not For Construction and does not include a license to build. Upgrade to a licensed construction package or proceed with plan customization services and receive a 100% credit (valid within 1 year of purchase).

PDF File

A digital copy of the construction drawings in a PDF format. Includes a single build license with modification permissions so a local professional with compatible software can make changes to the plan. PDF Files are emailed saving shipping costs and time.

PDF Master

A digital copy of the construction drawings in a PDF format. Includes a single build license with modification permissions so a local professional with compatible software can make changes to the plan. PDF Files are emailed saving shipping costs and time.

PDF Print Package

A digital copy of the construction drawings in a PDF format (non-modifiable, print only). Includes a single build license with permissions to make copies of the plan locally as needed. The PDF Print Package is emailed saving shipping costs and time.

PDF Print Package + 1 Set

One printed set of construction drawings plus a PDF Print Package (non-modifiable, print only). Includes a single build license.

PDF Print Package + 2 Sets

Two printed sets of construction drawings plus a PDF Print Package (non-modifiable, print only). Includes a single build license.

PDF Print Package + 3 Sets

Three printed sets of construction drawings plus a PDF Print Package (non-modifiable, print only). Includes a single build license.

PDF Print Package + 4 Sets

Four printed sets of construction drawings plus a PDF Print Package (non-modifiable, print only). Includes a single build license.

PDF Print Package + 5 Sets

Five printed sets of construction drawings plus a PDF Print Package (non-modifiable, print only). Includes a single build license.

PDF Study Set

A digital review set for bidding and personal study in a PDF format. Marked Not For Construction and does not include a license to build. Upgrade to a licensed construction package or proceed with plan customization services and receive a 100% credit (valid within 1 year of purchase).

PDF Unlimited

A digital copy of the construction drawings in a PDF format that includes an unlimited build license.

PDF w/Multi-Use License

A digital copy of the construction drawings in a PDF format. Includes a multiple build license with permissions which allow the plan to be modified and reproduced locally. This package is emailed saving shipping costs and time.

Plan Package

A digital plan package which includes the PDF Master, CAD Master (DWG), and Sketchup Pro Files (.layout). This package is emailed saving shipping costs and time.

Plans Now

Don’t wait – get your plans NOW! This digital plan package is a downloadable Print PDF Package (non-modifiable, print only). Includes a single build license – signed during check out – with permissions to make copies of the plan locally as needed.

Preliminary Set

One printed set of the elevations and floor plan(s) for study and review. Marked Not For Construction and does not include a license to build. Upgrade to a licensed construction package or proceed with plan customization services and receive a 100% credit (valid within 1 year of purchase).

Pricing Package

One printed set of the elevations and floor plan(s) plus a material list.

Reproducible Vellums

One printed set of construction drawings on transparent paper. Includes a single build license with permissions to modify and reproduce the plans. Modifications to this plan package are made by hand.

Review Set

A digital study set of the elevations and floor plan(s) only. The review set is not to scale. Upgrade to a licensed construction package or proceed with plan customization services and receive a 100% credit (valid within 1 year of purchase).

Study Set via Email

A digital review set for bidding and personal study in a PDF format. Marked Not For Construction and does not include a license to build. Upgrade to a licensed construction package or proceed with plan customization services and receive a 100% credit (valid within 1 year of purchase).

Study Set via email

A digital review set for bidding and personal study in a PDF format. Marked Not For Construction and does not include a license to build. Upgrade to a licensed construction package or proceed with plan customization services and receive a 100% credit (valid within 1 year of purchase).

5 Set Package Kit

Bundled savings! Includes 5 Print Sets of construction drawings, a PDF formatted to print 11’x17”, and a material list. Please note that the PDF may not be to scale.
