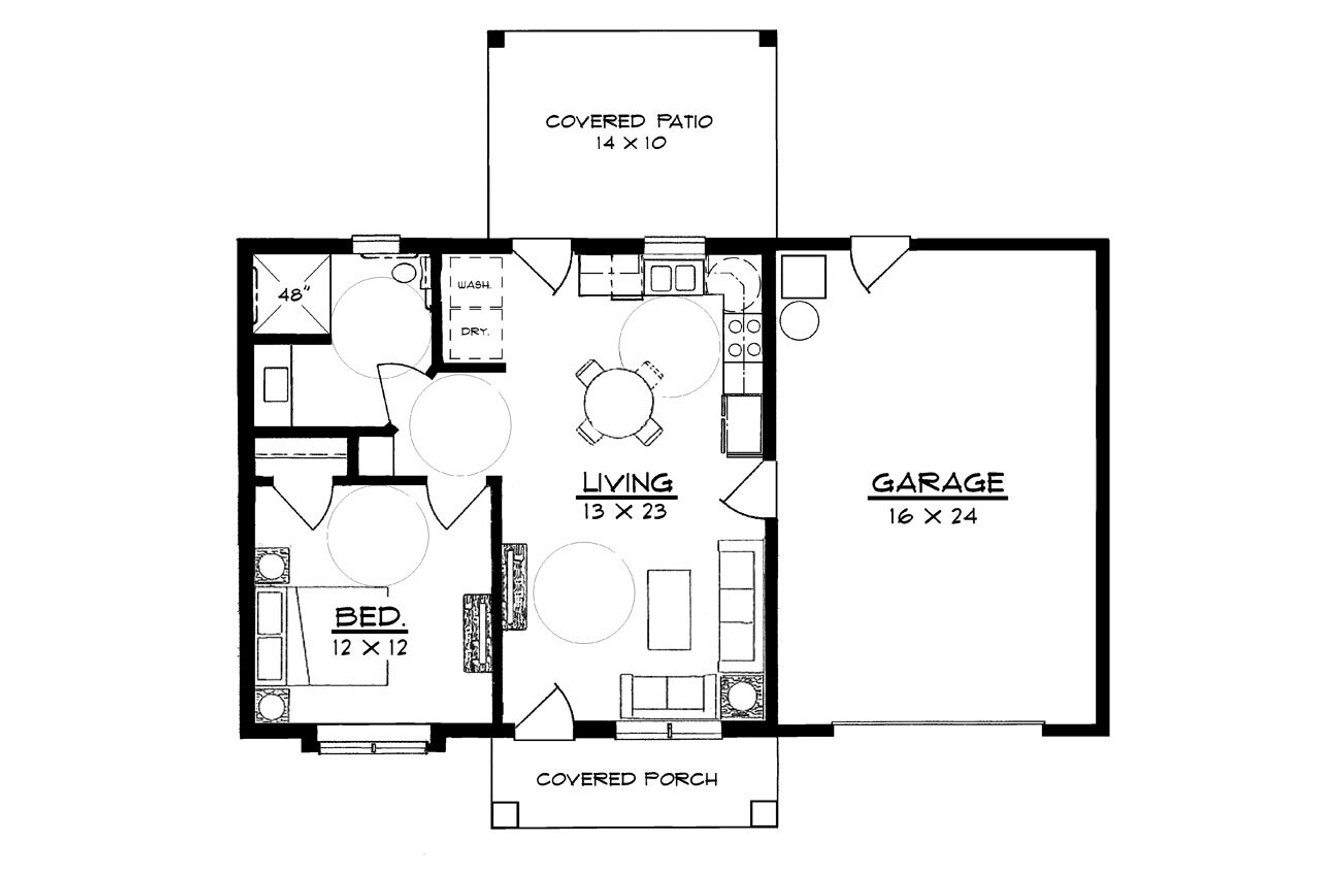

  • Craftsman House Plan - 78201 - 1st Floor Plan
  • At a glance
  • Square Footage: Total Living 624 Square Feet
  • Bedrooms 1 Bedrooms
  • Baths Full 1 Full Baths
  • Floors 1 Floors
  • Garage Bays Min 1 Car Garage

Floor plan
