Plan 72283

Summers

Name: Summers - 72283
Brand: Page Drafting & Design
SKU: 203 - Summers
Availability: InStock

Photographs may show modifications made to plans. Copyright owned by designer.

At a glance
4075 Square Feet
3 Bedrooms
2 Full Baths
1 Floors
3 Car Garage

Floor plan

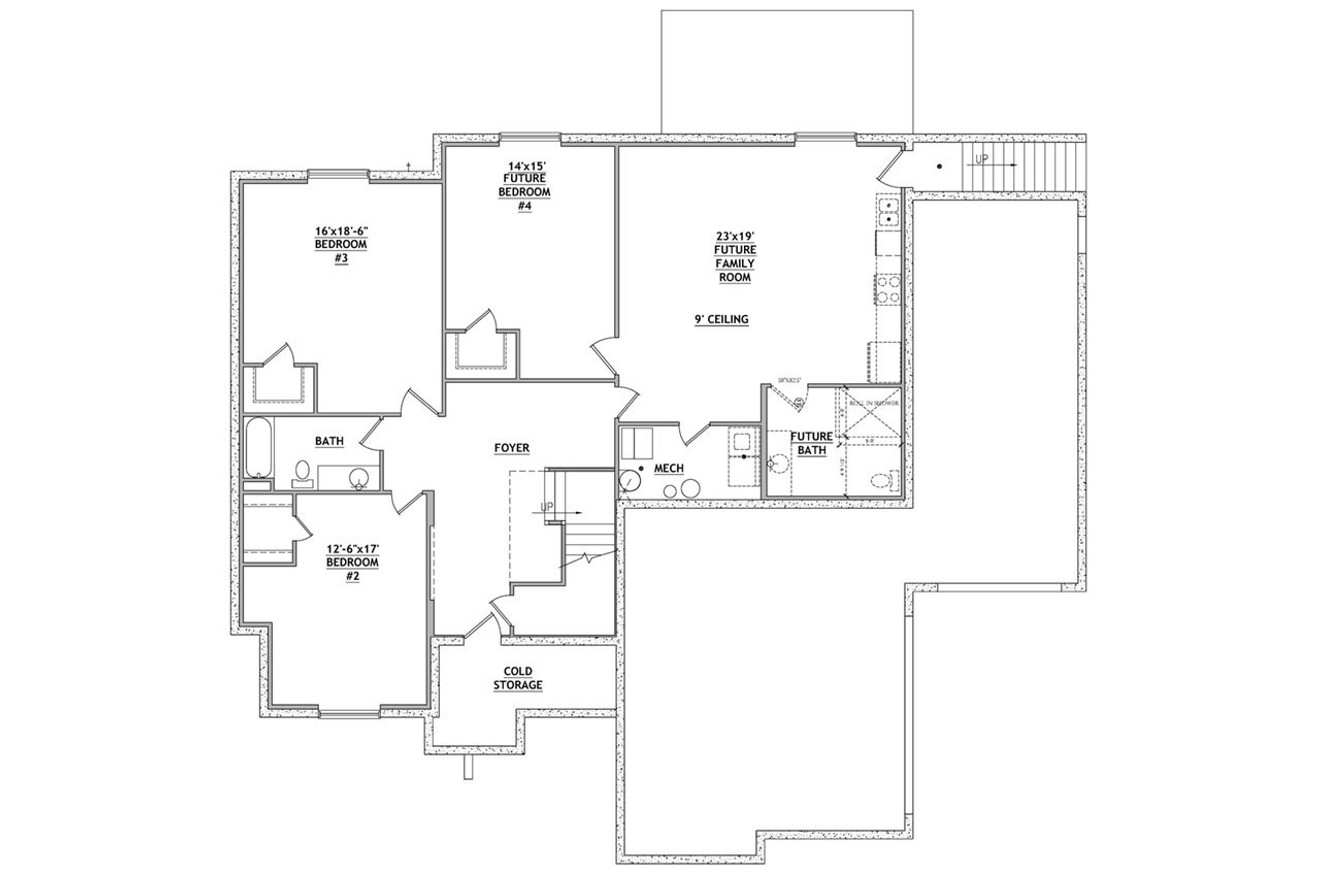

Secondary Image - Craftsman House Plan - Summers 72283 - Basement Floor Plan

Free modification quote

Call Us 866-688-6970 or fill out our form.

Get Started

Cost to build report

How Much Will This Plan Cost To Build?

Find Out

Plan details

Basic Details

Building Details

Interior Details

Garage

What's Included in a Plan Set?

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, ceiling heights, etc.

Second Floor Plan (if any): Shows the second floor in the same detail as the main floor.

Foundation Plan: Shows the location of all concrete footings, and foundation details. If there is a basement, a basement plan is included which shows all basement details.

Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.

Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.

Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Electrical Plan: A schematic layout of all lighting and electrical outlets.

New to Plan Buying?

What You Need to Know About Purchasing Plans

You are about to embark on an exciting process, enjoy it!

Here is what you need to know about purchasing house plans from HPC:

• Each designer and architect plans are created with their own unique style and content. Please be sure to read the "What's included in a Plan Set" tab, and if you don't see what you are looking for, be sure to give us a call.
• The designs are not engineered. Check with the building department where the structure is being constructed to find out if an engineer's review is required. We can help facilitate engineering for your plan if you are unable to find a local professional who can assist you.
• Your building department may also require a site plan of your lot be included with your submittal for a building permit. A local design

professional in your area should be able to help you with this as well as evaluating your chosen plan to make sure it meets the local building requirements for weather and seismic conditions.
• Please read and understand your licensing agreement. This will clearly define what you can and can not do with your construction documents.
• Electronic formats of packages sales (PDF & CAD Files) are final. Printed construction documents may be exchanged with an exchange fee within 30 days of purchase.
• Unless purchasing an additional build license (one time additional or multi-build additional) you may build the structure one time. Ownership of the construction documents can not be transferred or sold.
• Unless purchasing a printable package, you may not make additional copies of the plan without the permission of the designer.

Plan Packages Explained

Ready to purchase plans and unsure which construction package to choose? We hope the following can help you decide. Please note: Plan packages vary and may not be available on all plans.

1 Set Study Package

This is a single set of prints will allow you to completely review the plan, get accurate quotes for construction costs, and contemplate custom design changes you may wish to make. Study sets are marked Not For Construction and without the license necessary to legally build the home. Don't worry though, we allow a 100% upgrade credit towards a buildable licensed construction package within one year of your 1 Set Study Package purchase.

5 and 8 Set Print Packages

These are licensed print packages of the construction documents printed and shipped to you.

PDF Print Package

This PDF package is a non-modifiable, print only PDF file that saves time, gas, money, and paper! Many contractors and building jurisdictions are working with digital formats of the construction documents. The PDF print package allows for you or your contractor to distribute the construction documents to sub-contractors, use electronic submittals to apply for the building permit, and print the sets you need when you need them.

Plans Now

Don't wait - get your plans NOW! This digital plan package is a downloadable Print PDF Package (non-modifiable, print only). Includes a single build license - electronically signed and emailed to you immediately after placing your order - with permissions to make copies of the plan locally as needed.

PDF Master

An unlocked modifiable PDF file. Same conveniences as the PDF print package with the added benefit which allows your local professional to make engineering mark-ups or design changes using compatible software.

CAD Electronic Files

By using CAD compatible software that use .dwg or .dxf file formats enables you or a local professional to modify the construction documents and integrate those changes throughout the entire plan. Once the modifications or engineering is incorporated into your design, you can reproduce as many copies of the plan needed to build the structure.

Still unsure which package to choose? You may want to discuss this with your builder or give us a call.

How to Evaluate a Plan

When looking at plans, most often it's the exterior profile that will first grab your attention. You love the exterior, it's exactly what you envisioned, but what about the inside of the design? It's important to spend some time and digest the design's interior elements. Here are a few considerations to think about when evaluating if this is the right plan for you.

• First off, think about how you live in your home.
• Do you or your family prefer to have one or two places to gather all together, or do you prefer to have more private places within your home.
• Consider how you move through the home in your day to day life. Visually walk through the front door, what do you walk through or by? Do the same from your back door and garage entrances.
• Is your family life more formal or casual and do the living spaces of the design complement your lifestyle?
• Will your existing furniture fit within the spaces?
• If you have a family, do you want the master suite close to the secondary bedrooms or separated?
• Do you entertain? Are there elements within the floor plan that allow for entertaining with ease?
• How do you take care of laundry? Would you prefer the laundry room to be close by the kitchen, garage, or close to the bedrooms?
• Storage space? Is there enough?
• Consider your access to the outside? Do you want to extend your indoor living to the outside? Is there adequate porches or patios for how you want to enjoy your yard? Where will you place your grill or patio furniture?
• The view? What are you going to see when you look out your windows? Need more privacy or need more accessibility to a view?
• Make sure your garage will accommodate your cars, RV, or boat. Adequate storage? Do you want or need a door to the exterior beyond the opening garage doors? Utility sink? Space for an additional refrigerator or freezer?
• Consider things about your current home/residence that you don't like. By pin pointing these areas of your current home that you don't care for, you can make sure they are addressed in the next.

After reviewing giving it careful consideration you may find that the plan would be perfect with a few design changes. HPC can certainly help you with that with our customization services.

The Customization Process

So you've found that almost perfect design, and find yourself saying, "if only". Whether it's changing the size of a room, adding space or features, or moving things around, we can help you take that almost perfect design and make it perfect for you.

It's exciting to create a plan to fit your exact needs and wants whether it's your home, garage or even a potential investment property.

When you locate your plan, select the "Get Started" button located on the plan detail page. Here you will be able to share with us the changes to the interior and/or the exterior of the design. You can even upload a sketch if you have one. Complete the necessary contact information and select "Submit Request".

HPC will then forward your request to a designer to evaluate your changes and provide a quote within two business days. HPC is a "true quote" plan website. That means HPC will not mark-up the modification quote, we want to help keep costs down for you!

Summers - 72283

Page Drafting & Design

$1,300.00

(No reviews yet) Write a Review

SKU:: 203 - Summers
UPC:
Plan Number:: 72283
Date Added:: 04/10/2024
Date Modified:: 05/29/2024
Designer:: edoug.page@gmail.com
Designer Plan Title:: Summers
Plan SKU:: Summers
Max Price:: 2025.00
Min Price:: 1300.00
Pricing Set Title:: 2001-2500 sq. ft.
Structure Type:: Single Family
Square Footage: Total Living:: 4075
Square Footage: 1st Floor:: 2083
Square Footage: Basement:: 1992
Square Footage: Garage:: 1059
Floors:: 1
FLOORS_filter:: 1
Bedrooms:: 3
BEDROOMS_filter:: 3
Baths Full:: 2
FULL BATHROOMS_filter:: 2
Baths Half:: 1
HALF BATHROOMS_filter:: 1
Ridge Height:: 23'
Overall Exterior Depth:: 59
Overall Exterior Width:: 69.2
Main Floor Ceiling Height:: 9'
Available Foundations:: Crawl Space
Available Foundations:: Concrete Slab
Available Foundations:: Basement
Available Foundations:: Daylight/Walk-out Basement
Default Foundation:: Basement
Available Walls:: 2x6 Wood Frame
Default Wall:: 2x6 Wood Frame
Ext Wall Material:: Batt & Board/Stone/Shakes
Lot Slope:: Level Lot
Roof Framing:: Truss
Roof Pitch:: 8/12
Primary Style:: Craftsman
Secondary Styles:: Ranch
Secondary Styles:: Traditional
Collections:: House Plans with Photos
Master Suite Features:: Main Floor Master Suite
Master Suite Features:: Separate From Other Bedrooms
Master Suite Features:: Walk In Closet
Master Suite Features:: Walk-In Shower
Master Suite Features:: Separate Tub & Shower
Interior Features:: Casual or Open Style Living Room
Interior Features:: Den, Office, Library, or Study
Interior Features:: Family Room
Interior Features:: Great Room
Interior Features:: Storage
Interior Features:: Fireplace/Wood Stove
Kitchen Features:: Breakfast Nook/Dining Area
Kitchen Features:: Kitchen Island
Kitchen Features:: Large Kitchen
Kitchen Features:: Walk-In or Wall Pantry
Kitchen Features:: Luxurious Kitchen
Utility Room Features:: Mudroom or Mudhall
Utility Room Features:: Main Floor Utility Room
Garage Type:: Attached
Garage Orientation:: Front Entry
Garage Orientation:: Side Entry
Garage Bays Min:: 3
Garage Bays Max:: 3
GARAGE BAYS_filter:: 3
Garage Features:: RV Garage
Exterior & Porch Features:: Covered Patio
Collections:: 1 Story House Plans
Collections:: 3 Bedroom House Plans
Styles:: Craftsman House Plans
Styles:: Ranch House Plans
Styles:: Traditional House Plans
Plan Name:: Summers
Product Rank:: 1824
Regions:: Southwest House Plans/Utah Home Plans

Plan Description

Welcome to "The Summers," a stunning Craftsman-style home that seamlessly blends traditional elegance with modern comfort. As you approach the residence, the captivating exterior greets you with its charming combination of Batten & Board, stone, and shakes. The unique architectural details, including a side entry two-car garage and a front entry RV garage bay, enhance both the aesthetic appeal and functionality of the home.

Stepping through the front door, you're immediately drawn into the welcoming ambiance of the main level. To your right, you'll find a private office, perfect for working from home or managing personal affairs. The thoughtfully designed space offers plenty of natural light, ensuring a productive and pleasant environment.

Continuing into the heart of the home, you'll discover the master suite, a true retreat featuring a beautiful bay window that floods the room with light and offers picturesque views of the surrounding landscape. The suite includes a luxurious master bathroom, complete with dual vanities, a soaking tub, a separate shower, and an expansive walk-in closet, providing ample space for storage and relaxation.

The great room, a central gathering place for family and friends, boasts a cozy corner fireplace, ideal for warming up on chilly evenings. This inviting space is designed for comfort and connection, making it perfect for both everyday living and entertaining.

Adjacent to the great room is the spacious, L-shaped kitchen, a culinary enthusiast’s dream. It features a large center island with seating, perfect for casual meals or socializing while cooking. The kitchen is equipped with top-of-the-line appliances and finishes, and the substantial walk-in pantry offers generous storage, ensuring you have everything you need at your fingertips.

Conveniently located off the kitchen is a well-appointed mudroom, providing a practical space to store outerwear and shoes, keeping the rest of the home neat and tidy. The nearby laundry room is designed for efficiency and ease, making household chores a breeze.

Descend to the basement level, where the home's versatility continues. This lower level features two additional bedrooms, perfect for children, guests, or even a home gym or hobby room. A full bathroom services these bedrooms, ensuring convenience and comfort.

The basement also includes a dedicated cold storage area, ideal for preserving perishables and other essentials. The unfinished space offers boundless potential for customization. You can envision a future family room, perfect for movie nights or game days, an additional full bathroom, and even another bedroom, providing ample space for a growing family or visiting guests.

"The Summers" is designed with both style and functionality in mind, creating a harmonious balance between luxury and practicality. The Craftsman charm, combined with thoughtful modern touches, ensures this home is not only a beautiful place to live but also a space that adapts to the changing needs of its occupants. Whether you’re enjoying the warmth of the fireplace, preparing a meal in the expansive kitchen, or relaxing in the master suite, "The Summers" offers a living experience that is both elegant and inviting.
