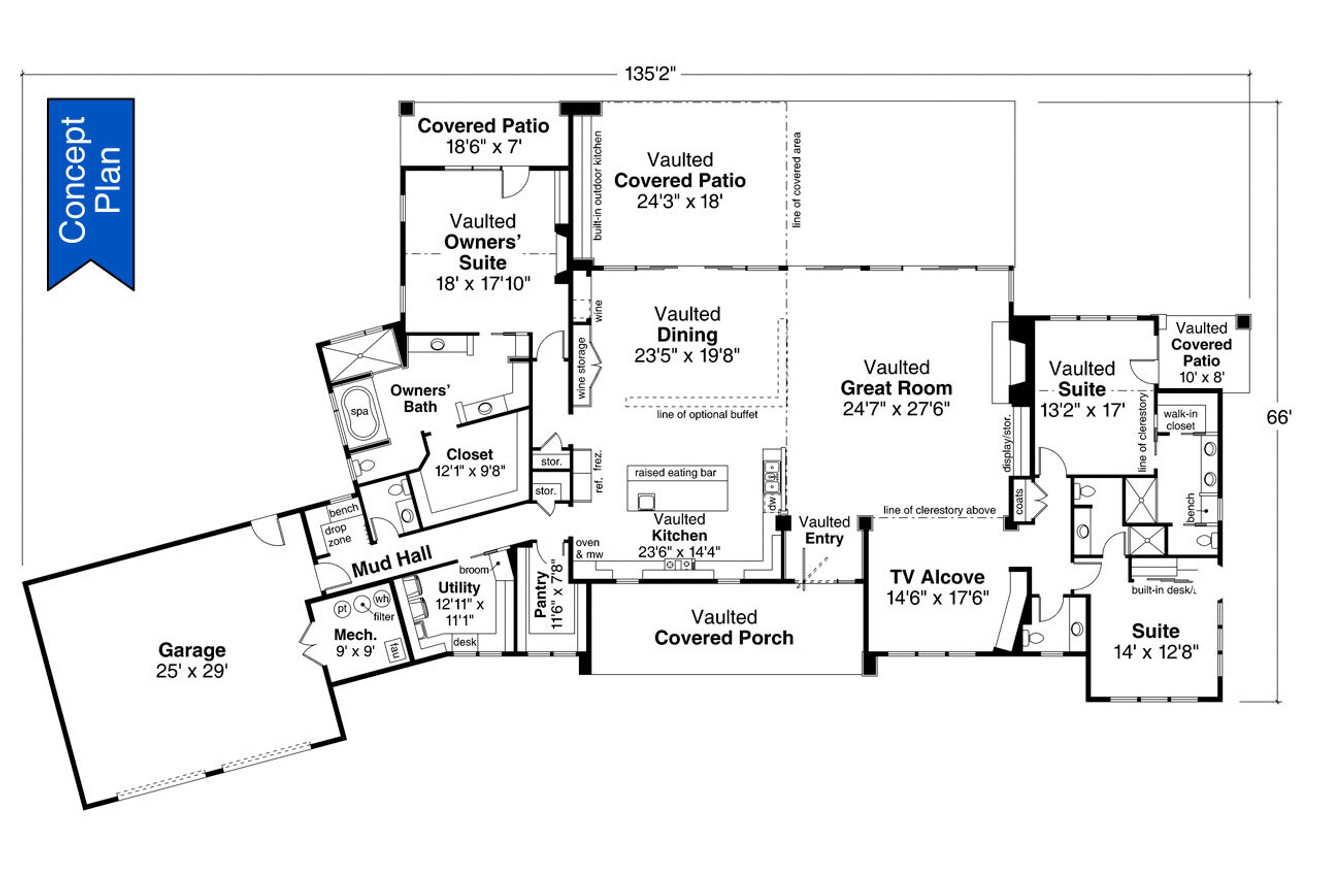

  • Modern House Plan - Syncline 92824 - 1st Floor Plan
  • At a glance
  • Square Footage: Total Living 3990 Square Feet
  • Bedrooms 3 Bedrooms
  • Baths Full 3 Full Baths
  • Floors 1 Floors
  • Garage Bays Min 2 Car Garage
