Bringing that country home feel is easier than ever with the Shelburn house plan. This Farmhouse style house plan features 3737 sq. ft. of living space comprised of 4 bedrooms and 5 bathrooms. The first floor hosts the luxurious master suite with it’s own fireplace, convenient outdoor access and separate bathtub and shower. The vaulted family room and dining room encapsulate the open concept floor plan with an angled eating bar in the kitchen that is perfect for hosting guests – or a quick bite. The parlor offers the formal space needed for holidays and family gatherings while across the hallway the office allows for a secluded work-from home space. The 3 car garage has 3 separate garage doors, each measuring 9’ x 7’. Upstairs is the loft that looks down to the Family Room below. Out of the three upstairs bedrooms, two of them are vaulted. The storage area upstairs makes for easy placement of all your holiday decorations.
Plan 93888
Shelburn
Photographs may show modifications made to plans. Copyright owned by designer.
- At a glance
-
3737
Square Feet
-
4
Bedrooms
-
3
Full Baths
-
2
Floors
-
3
Car Garage
- More about the plan
- Pricing
- Basic Details
- Building Details
- Interior Details
- Garage Details
- See All Details
Contact HPC Experts
Have questions? Help from our plan experts
is just a click away.
To help us answer your questions promptly, please copy and paste the following information in the fields below.
Let’s be social
Connect with us for the latest from HPC
Plan details
Basic Details
Building Details
Interior Details
Garage
What's Included in a Plan Set?
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

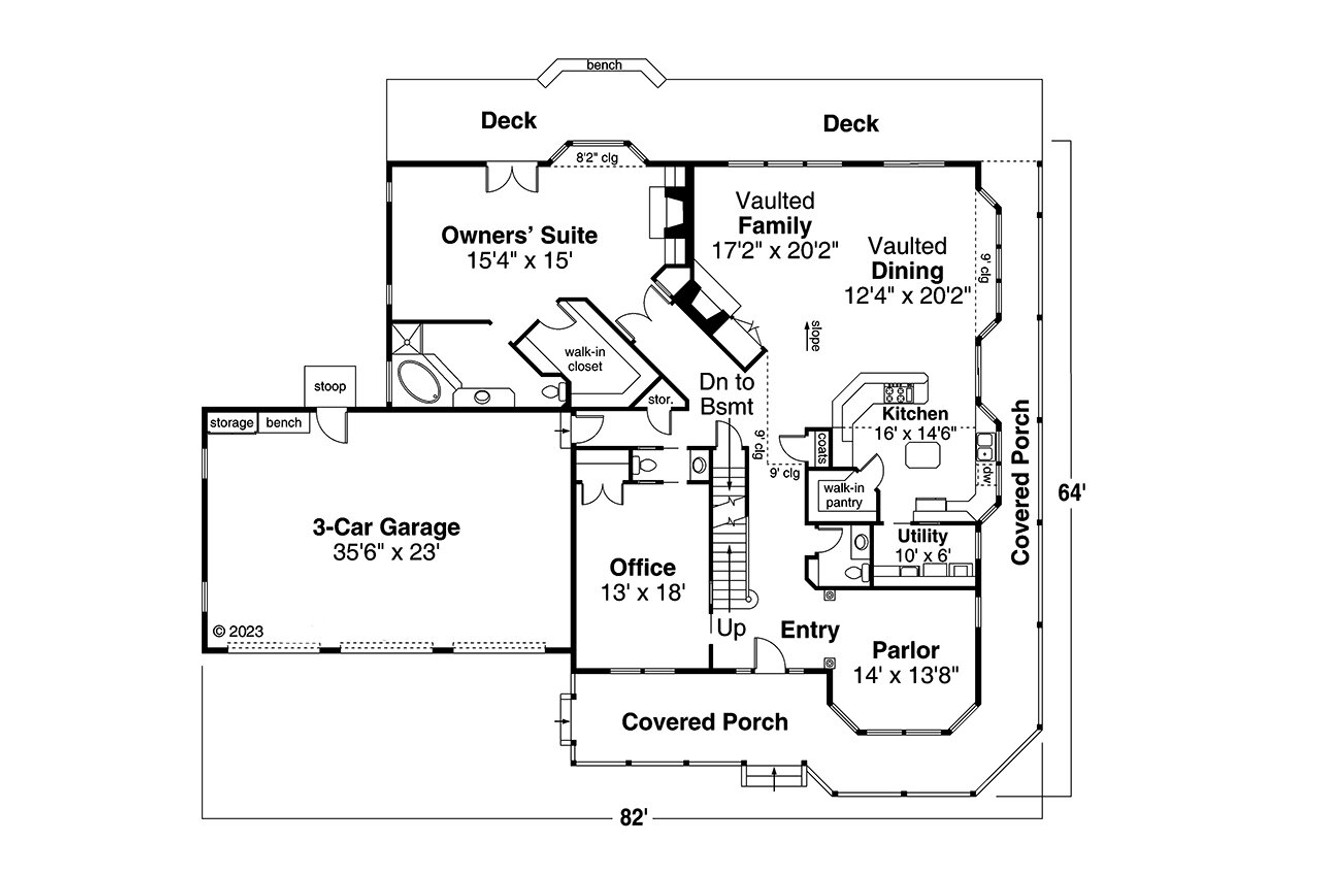

Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

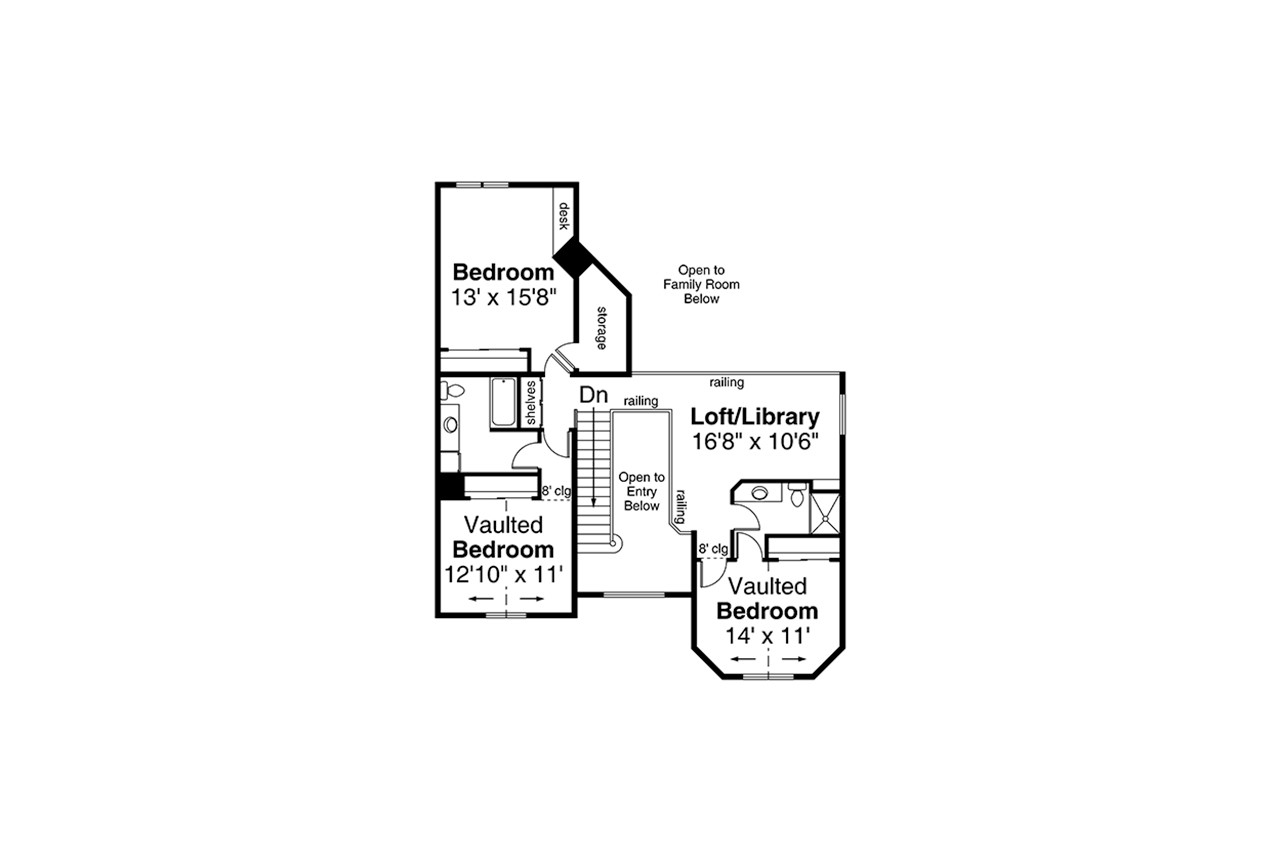

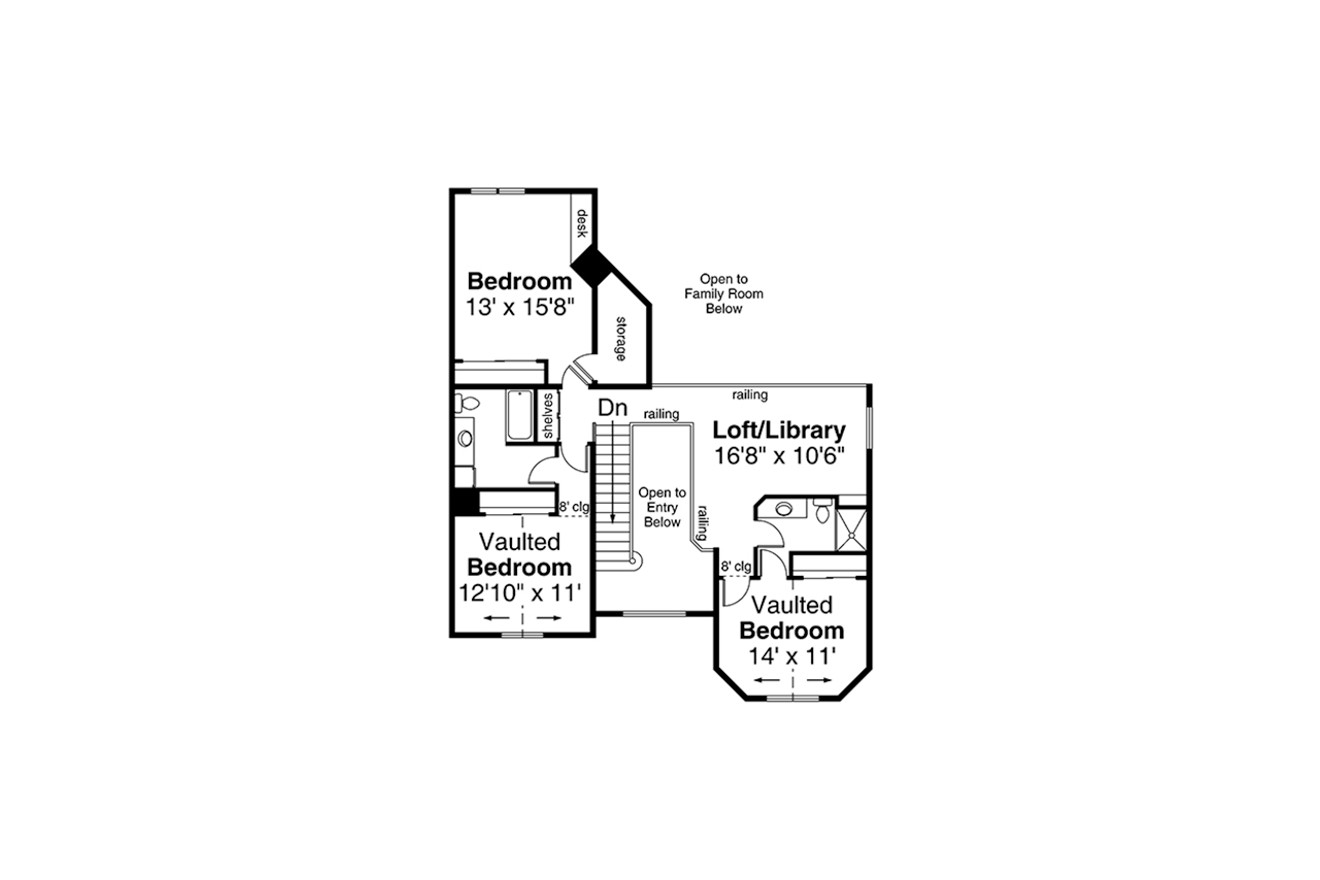

Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Concept Plan Packages:
Includes PDF and DWG files of the:
Elevations
Floor Plan (s)
Roof Outline
The concept plan package can save you valuable time and resources by providing the essentials of the design allowing for a local designer, architect, or engineer to complete the construction documents to the building practices, requirements, and site conditions in your area. Concept plans include an unlimited build license (non-transferable).
New to Plan Buying?
Shelburn - 93888
Associated Designs
$1,325.00
- SKU:
- 101 - 30-035
- Plan Number:
- 93888
- Pricing Set Title:
- J [3500 - 3999]
- Designer Plan Title:
- 30-035
- Date Added:
- 03/14/2023
- Date Modified:
- 02/27/2024
- Designer:
- info@associateddesigns.com; jessica@associateddesigns.com
- Plan Name:
- Shelburn
- Note Plan Packages: Plans Now:
- Digital Download!
- Note Plan Packages: PDF Print Package:
- Best Value!
- Note Plan Packages: Master Builder CAD Set:
- Unlimited Builds!
- Family Plan:
- 10-059
- Structure Type:
- Single Family
- Square Footage: Total Living:
- 3737
- Square Footage: 1st Floor:
- 2584
- Square Footage: 2nd Floor:
- 1153
- Square Footage: Garage:
- 855
- Floors:
- 2
- FLOORS_filter:
- 2
- Bedrooms:
- 4
- BEDROOMS_filter:
- 4
- Baths Full:
- 3
- FULL BATHROOMS_filter:
- 3
- Baths Half:
- 2
- HALF BATHROOMS_filter:
- 2
- Ridge Height:
- 28'8"
- Overall Exterior Depth:
- 64
- Overall Exterior Width:
- 82
- Main Floor Ceiling Height:
- 9'
- Second Floor Ceiling Height:
- 8'
- Available Foundations:
- Crawl Space
- Available Foundations:
- Concrete Slab
- Available Foundations:
- Basement
- Default Foundation:
- Basement
- Available Walls:
- 2x4 Wood Frame
- Available Walls:
- 2x6 Wood Frame
- Default Wall:
- 2x6 Wood Frame
- Lot Type:
- Front View
- Lot Type:
- View Lot
- Lot Slope:
- Level Lot
- Lot Type:
- Side View
- Ext Wall Material:
- Lap Siding
- Roof Framing:
- Truss
- Snow Roof Load:
- 35.00
- Roof Pitch:
- 8/12
- Primary Style:
- Farmhouse
- Secondary Styles:
- Country
- Master Suite Features:
- Exterior Access
- Master Suite Features:
- Main Floor Master Suite
- Master Suite Features:
- Separate From Other Bedrooms
- Master Suite Features:
- Separate Tub & Shower
- Master Suite Features:
- Walk In Closet
- Master Suite Features:
- Fireplace
- Master Suite Features:
- Sitting Room
- Interior Features:
- Casual or Open Style Living Room
- Interior Features:
- Den, Office, Library, or Study
- Interior Features:
- Family Room
- Interior Features:
- Fireplace/Wood Stove
- Interior Features:
- Loft
- Interior Features:
- Formal Living Room or Parlor
- Kitchen Features:
- Eating Bar or Peninsula
- Kitchen Features:
- Breakfast Nook/Dining Area
- Kitchen Features:
- Walk-In or Wall Pantry
- Kitchen Features:
- Kitchen Island
- Utility Room Features:
- Close to Kitchen or Garage
- Utility Room Features:
- Main Floor Utility Room
- Garage Type:
- Attached
- Garage Orientation:
- Front Entry
- Garage Bays Min:
- 3
- Garage Bays Max:
- 3
- GARAGE BAYS_filter:
- 3
- Garage Features:
- Workshop or Workbench
- Garage Features:
- Storage
- Exterior & Porch Features:
- Deck
- Exterior & Porch Features:
- Wrap Around Porch
- Exterior & Porch Features:
- Covered Patio
- Styles:
- Country House Plans
- Collections:
- 2 Story House Plans
- Collections:
- 4 Bedroom House Plans
- Collections:
- View Lot House Plans
- Styles:
- Farmhouse Plans
- Product Rank:
- 5580
- Plan SKU:
- 30-035
- Max Price:
- 3800.00
- Min Price:
- 1325.00
- Regions:
- Northwest House Plans/Oregon Home Plans
