Plan 51064

Coral

My Favorites
Write a Review
  • Cape Cod House Plan - Coral 51064 - Front Exterior Icon_ionic-ios-expand
  • Cape Cod House Plan - Coral 51064 - Rear Exterior Icon_ionic-ios-expand
  • Cape Cod House Plan - Coral 51064 - Front Exterior Icon_ionic-ios-expand
  • Cape Cod House Plan - Coral 51064 - Left Exterior Icon_ionic-ios-expand
  • Cape Cod House Plan - Coral 51064 - Right Exterior Icon_ionic-ios-expand
  • Cape Cod House Plan - Coral 51064 - 1st Floor Plan Icon_ionic-ios-expand
  • Secondary Image - Cape Cod House Plan - Coral 51064 - 2nd Floor Plan Icon_ionic-ios-expand
  • Cape Cod House Plan - Coral 51064 - Other Floor Plan Icon_ionic-ios-expand

Photographs may show modifications made to plans. Copyright owned by designer.

  • Cape Cod House Plan - Coral 51064 - Front Exterior
  • Cape Cod House Plan - Coral 51064 - Rear Exterior
  • Cape Cod House Plan - Coral 51064 - Front Exterior
  • Cape Cod House Plan - Coral 51064 - Left Exterior
  • Cape Cod House Plan - Coral 51064 - Right Exterior

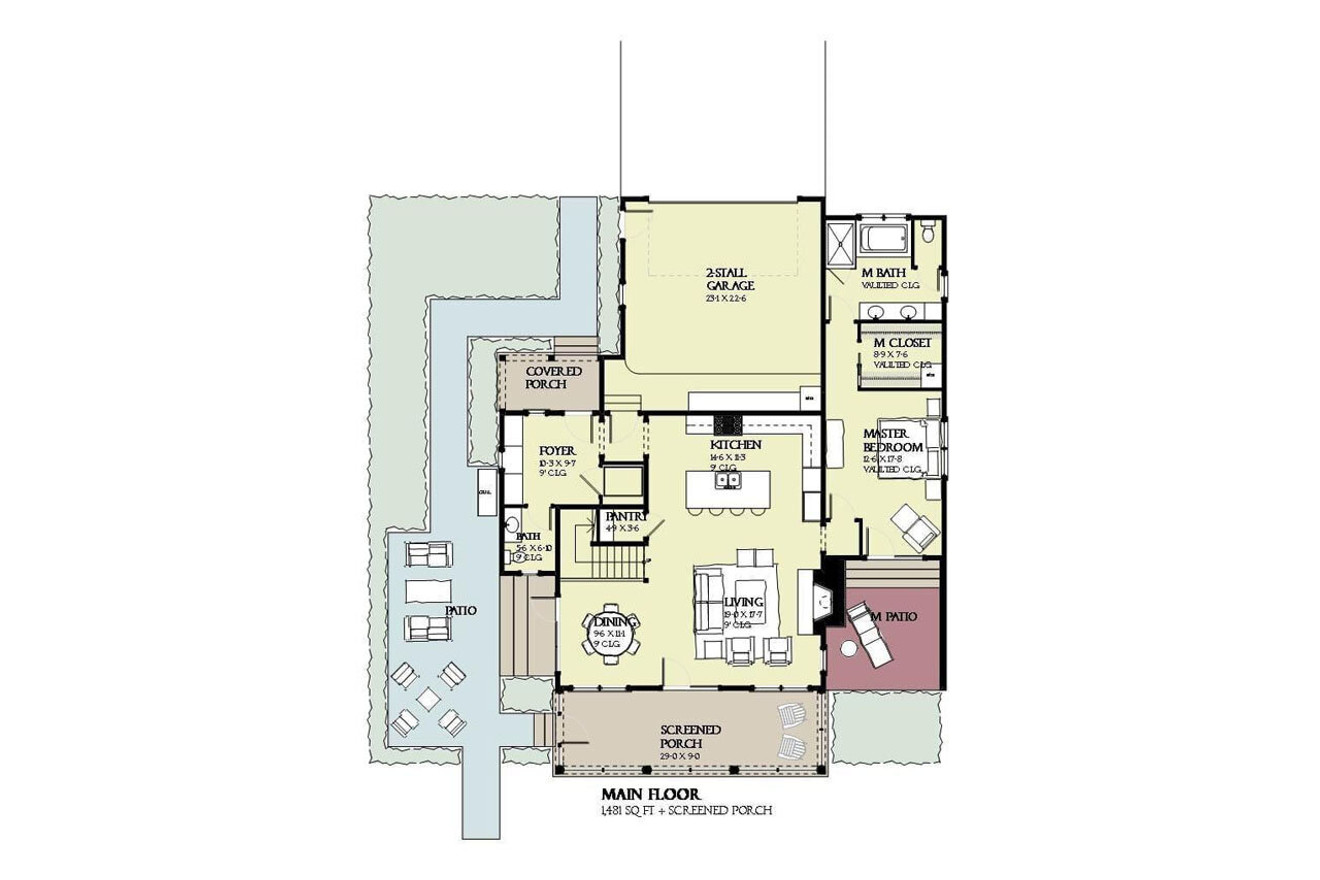

  • Cape Cod House Plan - Coral 51064 - 1st Floor Plan

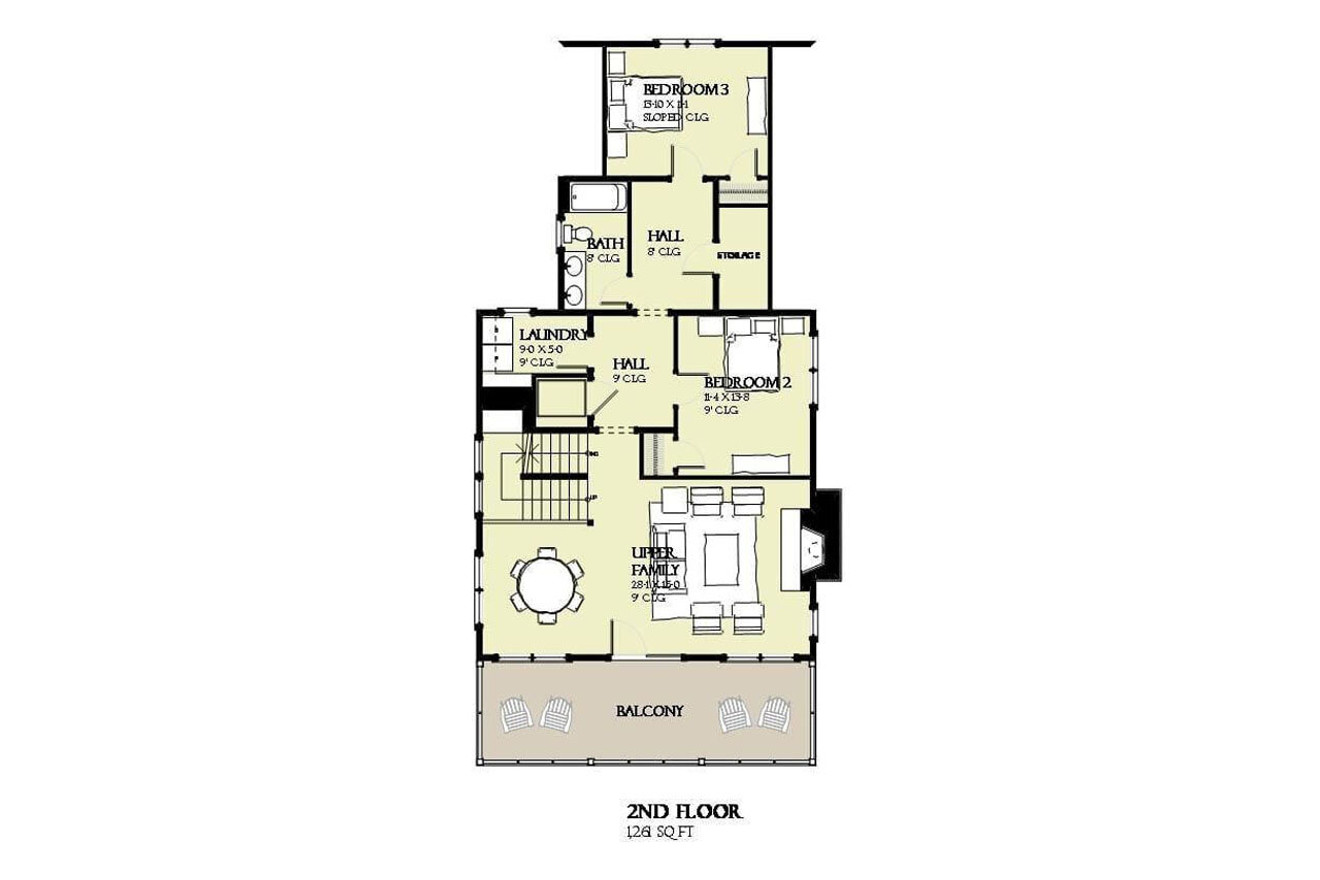

  • Secondary Image - Cape Cod House Plan - Coral 51064 - 2nd Floor Plan

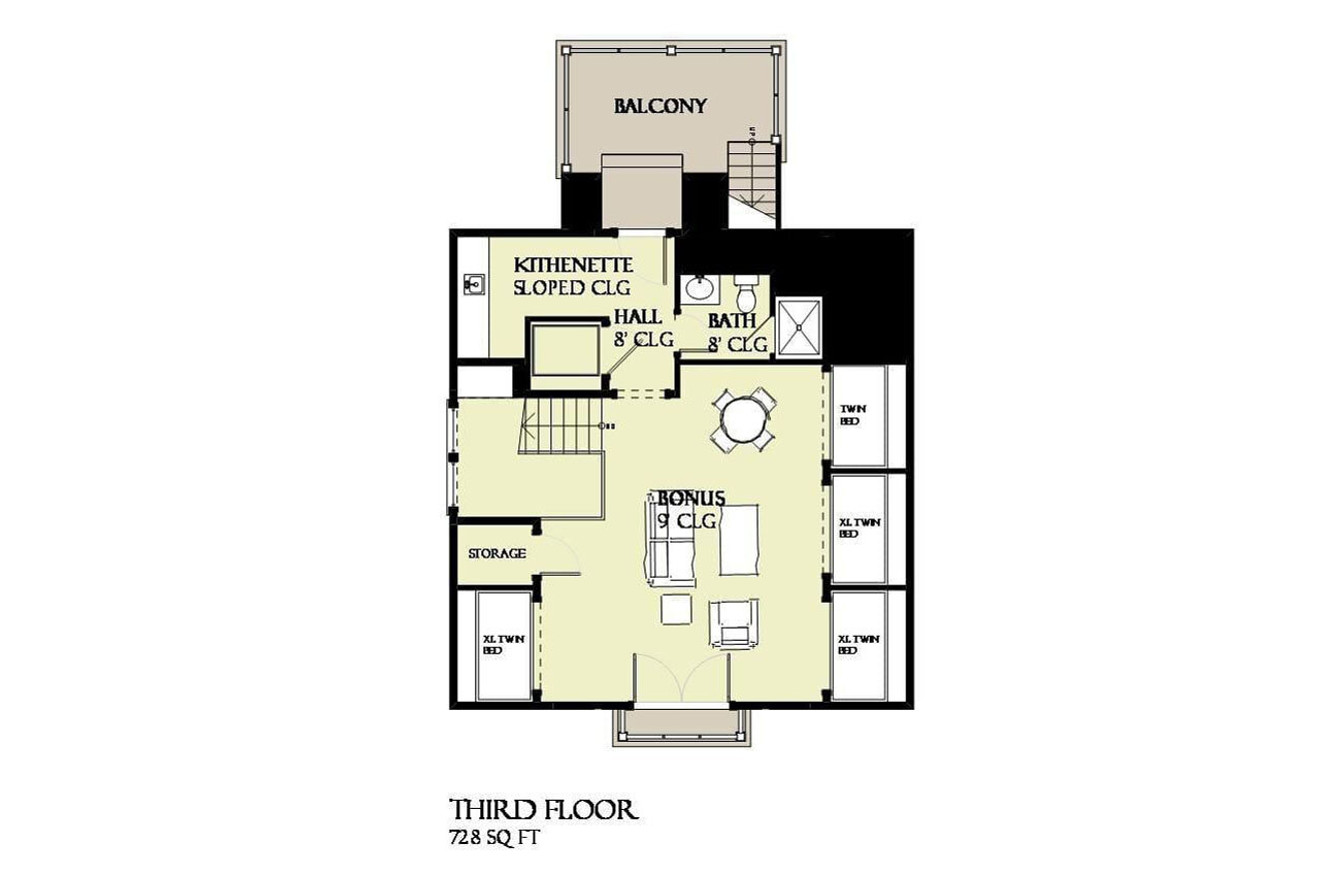

  • Cape Cod House Plan - Coral 51064 - Other Floor Plan
  • At a glance
  • Square Footage: Total Living 3470 Square Feet
  • Bedrooms 4 Bedrooms
  • Baths Full 3 Full Baths
  • Floors 3 Floors
  • Garage Bays Min 2 Car Garage

Floor plan

Cape Cod House Plan - Coral 51064 - 1st Floor Plan Icon_ionic-ios-expand
Secondary Image - Cape Cod House Plan - Coral 51064 - 2nd Floor Plan Icon_ionic-ios-expand
Cape Cod House Plan - Coral 51064 - Other Floor Plan Icon_ionic-ios-expand

Contact HPC Experts

Have questions? Help from our plan experts
is just a click away.

To help us answer your questions promptly, please copy and paste the following information in the fields below.

Plan Number: 51064
Plan Name: Coral
Your submission has been received!
item-icon

Free modification quote

Call Us 866-688-6970 or fill out our form.

Get Started
item-icon

Cost to build report

How Much Will This Plan Cost To Build?

Find Out
GetQuote

Free modification quote

Are you looking for additional plan options?

Get a Quote

Have questions? Prefer to order by phone? Give us a call: 1-866-688-6970

Adding to Cart The item has been added

Plan details

Basic Details

Building Details

Interior Details

Garage

What's Included in a Plan Set?

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan: Shows the location of all concrete footings and foundation details. If there is a basement, a basement plan is included which shows all basement details.

Floor Framing Plan: To be provided by local engineer or lumber yard.

Roof Framing Plan: Shows roof outlines, pitch, heel heights, and overhang sizes details, etc. Specific truss layouts by local engineer or lumber yard.

Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Exterior details for railings, shutters, flower boxes, brackets, columns where applicable on the design.

New to Plan Buying?

What You Need to Know About Purchasing Plans



You are about to embark on an exciting process, enjoy it!



Here is what you need to know about purchasing house plans from HPC:

 • Each designer and architect plans are created with their own unique style and content. Please be sure to read the "What's included in a Plan Set" tab, and if you don't see what you are looking for, be sure to give us a call.
 • The designs are not engineered. Check with the building department where the structure is being constructed to find out if an engineer's review is required. We can help facilitate engineering for your plan if you are unable to find a local professional who can assist you.
 • Your building department may also require a site plan of your lot be included with your submittal for a building permit. A local design

professional in your area should be able to help you with this as well as evaluating your chosen plan to make sure it meets the local building requirements for weather and seismic conditions.
 • Please read and understand your licensing agreement. This will clearly define what you can and can not do with your construction documents.
 • Electronic formats of packages sales (PDF & CAD Files) are final. Printed construction documents may be exchanged with an exchange fee within 30 days of purchase.
 • Unless purchasing an additional build license (one time additional or multi-build additional) you may build the structure one time. Ownership of the construction documents can not be transferred or sold.
 • Unless purchasing a printable package, you may not make additional copies of the plan without the permission of the designer.

Plan Packages Explained



Ready to purchase plans and unsure which construction package to choose? We hope the following can help you decide. Please note: Plan packages vary and may not be available on all plans.



1 Set Study Package


This is a single set of prints will allow you to completely review the plan, get accurate quotes for construction costs, and contemplate custom design changes you may wish to make. Study sets are marked Not For Construction and without the license necessary to legally build the home. Don't worry though, we allow a 100% upgrade credit towards a buildable licensed construction package within one year of your 1 Set Study Package purchase.



5 and 8 Set Print Packages


These are licensed print packages of the construction documents printed and shipped to you.



PDF Print Package


This PDF package is a non-modifiable, print only PDF file that saves time, gas, money, and paper! Many contractors and building jurisdictions are working with digital formats of the construction documents. The PDF print package allows for you or your contractor to distribute the construction documents to sub-contractors, use electronic submittals to apply for the building permit, and print the sets you need when you need them.



Plans Now

Don't wait - get your plans NOW! This digital plan package is a downloadable Print PDF Package (non-modifiable, print only). Includes a single build license - electronically signed and emailed to you immediately after placing your order - with permissions to make copies of the plan locally as needed.



PDF Master


An unlocked modifiable PDF file. Same conveniences as the PDF print package with the added benefit which allows your local professional to make engineering mark-ups or design changes using compatible software.



CAD Electronic Files


By using CAD compatible software that use .dwg or .dxf file formats enables you or a local professional to modify the construction documents and integrate those changes throughout the entire plan. Once the modifications or engineering is incorporated into your design, you can reproduce as many copies of the plan needed to build the structure.





Still unsure which package to choose? You may want to discuss this with your builder or give us a call.

How to Evaluate a Plan



When looking at plans, most often it's the exterior profile that will first grab your attention. You love the exterior, it's exactly what you envisioned, but what about the inside of the design? It's important to spend some time and digest the design's interior elements. Here are a few considerations to think about when evaluating if this is the right plan for you.



 • First off, think about how you live in your home.
 • Do you or your family prefer to have one or two places to gather all together, or do you prefer to have more private places within your home.
 • Consider how you move through the home in your day to day life. Visually walk through the front door, what do you walk through or by? Do the same from your back door and garage entrances.
 • Is your family life more formal or casual and do the living spaces of the design complement your lifestyle?
 • Will your existing furniture fit within the spaces?
 • If you have a family, do you want the master suite close to the secondary bedrooms or separated?
 • Do you entertain? Are there elements within the floor plan that allow for entertaining with ease?
 • How do you take care of laundry? Would you prefer the laundry room to be close by the kitchen, garage, or close to the bedrooms?
 • Storage space? Is there enough?
 • Consider your access to the outside? Do you want to extend your indoor living to the outside? Is there adequate porches or patios for how you want to enjoy your yard? Where will you place your grill or patio furniture?
 • The view? What are you going to see when you look out your windows? Need more privacy or need more accessibility to a view?
 • Make sure your garage will accommodate your cars, RV, or boat. Adequate storage? Do you want or need a door to the exterior beyond the opening garage doors? Utility sink? Space for an additional refrigerator or freezer?
 • Consider things about your current home/residence that you don't like. By pin pointing these areas of your current home that you don't care for, you can make sure they are addressed in the next.


After reviewing giving it careful consideration you may find that the plan would be perfect with a few design changes. HPC can certainly help you with that with our customization services.

The Customization Process



So you've found that almost perfect design, and find yourself saying, "if only". Whether it's changing the size of a room, adding space or features, or moving things around, we can help you take that almost perfect design and make it perfect for you.



It's exciting to create a plan to fit your exact needs and wants whether it's your home, garage or even a potential investment property.



When you locate your plan, select the "Get Started" button located on the plan detail page. Here you will be able to share with us the changes to the interior and/or the exterior of the design. You can even upload a sketch if you have one. Complete the necessary contact information and select "Submit Request".



HPC will then forward your request to a designer to evaluate your changes and provide a quote within two business days. HPC is a "true quote" plan website. That means HPC will not mark-up the modification quote, we want to help keep costs down for you!

Coral - 51064

Sketchpad House Plans

$2,800.00
(No reviews yet) Write a Review
SKU:
134 - Coral
Plan Number:
51064
Pricing Set Title:
Category K
Designer Plan Title:
Coral
Date Added:
12/19/2019
Date Modified:
06/10/2024
Designer:
sales@sketchpadhouseplans.com
Plan Name:
Coral
Structure Type:
Single Family
Best Seller (Rank #):
10000
Square Footage: Total Living:
3470
Square Footage: 1st Floor:
1481
Square Footage: 2nd Floor:
1261
Square Footage: 3rd Floor:
728
Floors:
3
FLOORS_filter:
3
Bedrooms:
4
BEDROOMS_filter:
4
Baths Full:
3
FULL BATHROOMS_filter:
3
Baths Half:
1
HALF BATHROOMS_filter:
1
Overall Exterior Depth:
62
Overall Exterior Width:
48
Main Floor Ceiling Height:
9'
Second Floor Ceiling Height:
9'
Available Foundations:
Crawl Space
Default Foundation:
Crawl Space
Available Walls:
2x6 Wood Frame
Default Wall:
2x6 Wood Frame
Ext Wall Material:
Cedar Shake Siding
Lot Slope:
Level Lot
Roof Framing:
Truss
Roof Pitch:
10/12
Primary Style:
Cape Cod
Collections:
Beach House Plans
Collections:
Unique House Plans
Collections:
Vacation Home Plans
Master Suite Features:
Exterior Access
Master Suite Features:
Main Floor Master Suite
Master Suite Features:
Private Toilet
Master Suite Features:
Separate From Other Bedrooms
Master Suite Features:
Separate Tub & Shower
Master Suite Features:
Sitting Room
Master Suite Features:
Walk In Closet
Interior Features:
Beverage Bar
Interior Features:
Bonus Room
Interior Features:
Casual or Open Style Living Room
Interior Features:
Family Room
Interior Features:
Fireplace/Wood Stove
Interior Features:
Great Room
Interior Features:
Storage
Kitchen Features:
Breakfast Nook/Dining Area
Kitchen Features:
Kitchen Island
Kitchen Features:
Large Kitchen
Kitchen Features:
Walk-In or Wall Pantry
Utility Room Features:
Close to Bedrooms
Utility Room Features:
Second Floor Utility Room
Garage Type:
Attached
Garage Orientation:
Rear Entry
Garage Bays Min:
2
Garage Bays Max:
2
GARAGE BAYS_filter:
2
Exterior & Porch Features:
Balcony
Exterior & Porch Features:
Extended Outdoor Living
Exterior & Porch Features:
Screened Porch
Family Plan:
Beach Walk
Styles:
Cape Cod House Plans
Collections:
4 Bedroom House Plans
Product Rank:
7632
Plan SKU:
Coral
Max Price:
3780.00
Min Price:
2800.00
Regions:
Midwest House Plans/Michigan Home Plans
