  • At a glance
  • Square Footage: Total Living 3139 Square Feet
  • Bedrooms 4 Bedrooms
  • Baths Full 3 Full Baths
  • Floors 2 Floors
  • Garage Bays Min 2 - 3 Car Garage

Floor plan

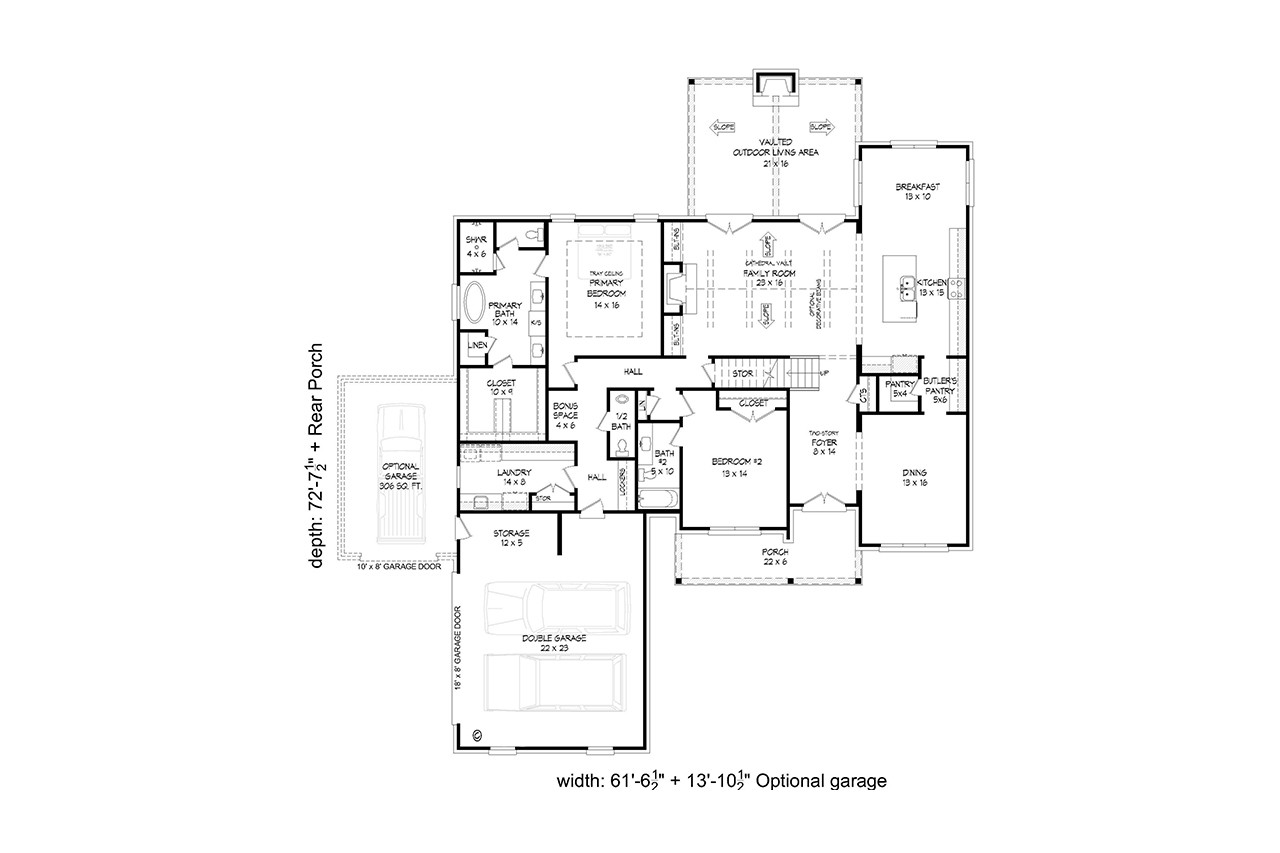

European House Plan - Graham Elev-B 42349 - 1st Floor Plan Icon_ionic-ios-expand

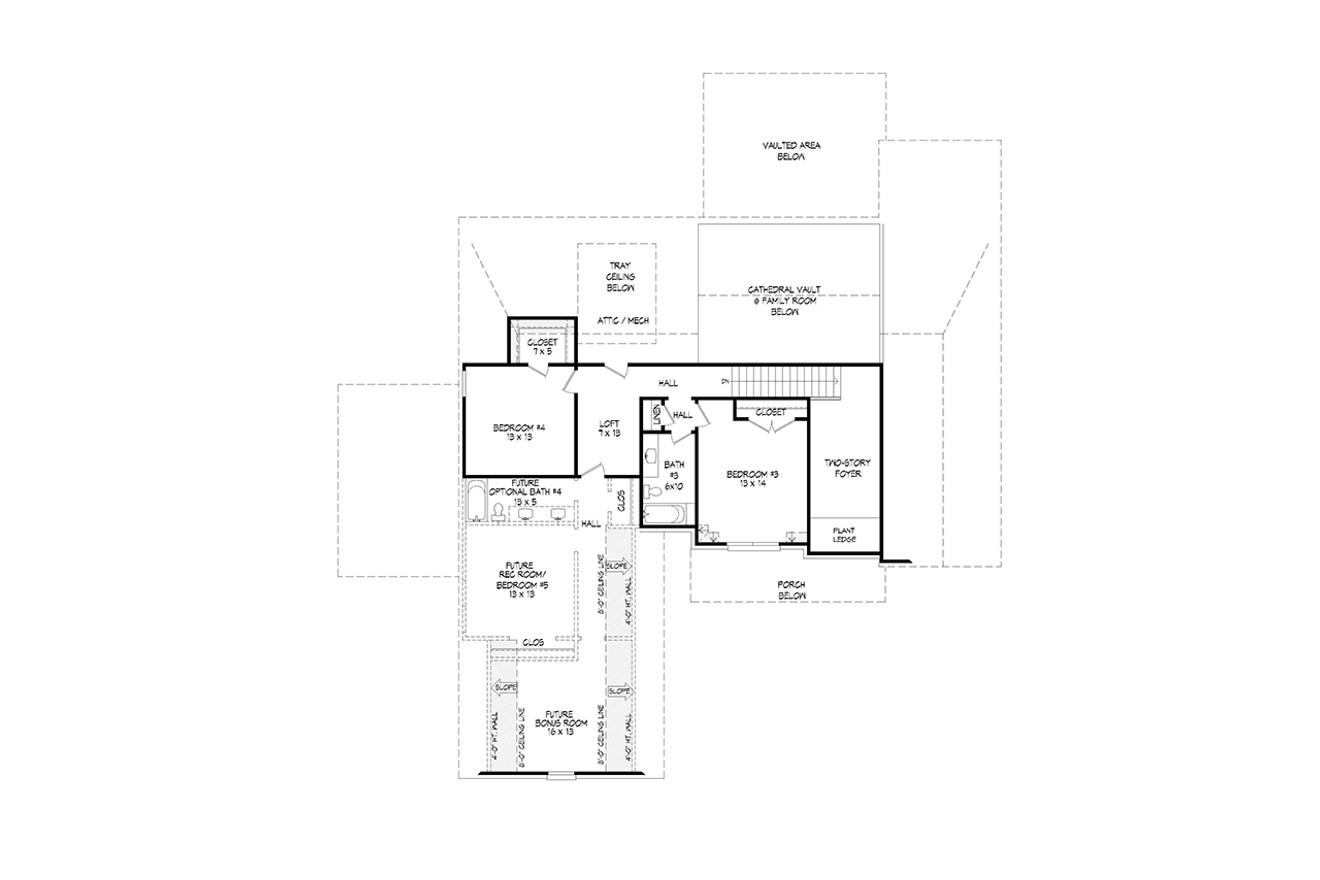

Secondary Image - European House Plan - Graham Elev-B 42349 - 2nd Floor Plan Icon_ionic-ios-expand
