  • At a glance
  • Square Footage: Total Living 2710 Square Feet
  • Bedrooms 4 Bedrooms
  • Baths Full 2 Full Baths
  • Floors 2 Floors
  • Garage Bays Min 2 Car Garage

Floor plan

Farmhouse House Plan - Douglas 79398 - 1st Floor Plan Icon_ionic-ios-expand

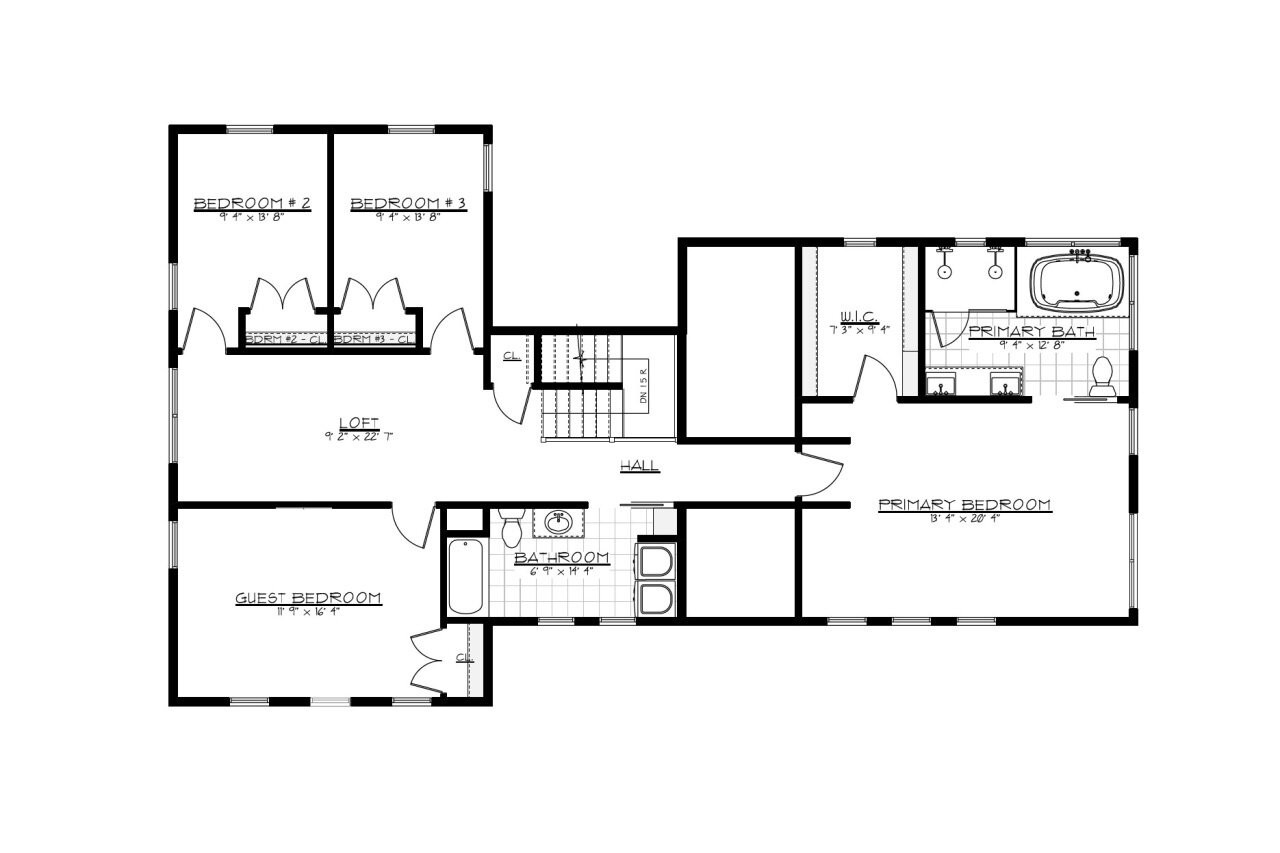

Farmhouse House Plan - Douglas 79398 - 2nd Floor Plan Icon_ionic-ios-expand

Contact HPC Experts

Have questions? Help from our plan experts
is just a click away.

To help us answer your questions promptly, please copy and paste the following information in the fields below.

Plan Number: 79398
Plan Name: Douglas
Your submission has been received!
item-icon

Free modification quote

Call Us 866-688-6970 or fill out our form.

Get Started
item-icon

Cost to build report

How Much Will This Plan Cost To Build?

Find Out
GetQuote

Free modification quote

Are you looking for additional plan options?

Get a Quote

Have questions? Prefer to order by phone? Give us a call: 1-866-688-6970

Adding to Cart The item has been added

Plan details

Basic Details

Building Details

Interior Details

Garage

What's Included in a Plan Set?

Each plan set is drawn at 1/4"=1' scale (typical, check scale) and includes the following drawings:
Title page: Rendered perspectives of the home, usually two views, and general construction notes, a drawing schedule and area schedule.
Main/First Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Roof Plan: Shows roof outlines, roof pitches, overhangs, conventional framing/trusses, beams, roof framing details, etc.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Section & Details sheet(s): Shows a cross-section of the home. Shows location and spacing of floor joists and supporting walls or beams, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc., and appear as needed throughout the prints.
Schedules sheet: area schedule (each floor, finished basement space, porches/deck, and individual unit sizes (if applicable). Window, interior door, and exterior door schedules that include width, height, and handing.

Available by request (additional charges apply) - request quote.
Electrical layout: receptacle and lighting layout as well as locations for special electrical items (appliance items, Electrical vehicle chargers, etc). No load calculations performed.
Plumbing layouts: fixtures dimensioned to centerlines and vent locations. Primarily for slab layouts.
Plot plan: based on survey by others. Must provide a CAD file of survey and necessary information for setbacks and lot coverage, etc.

New to Plan Buying?

What You Need to Know About Purchasing Plans



You are about to embark on an exciting process, enjoy it!



Here is what you need to know about purchasing house plans from HPC:

 • Each designer and architect plans are created with their own unique style and content. Please be sure to read the "What's included in a Plan Set" tab, and if you don't see what you are looking for, be sure to give us a call.
 • The designs are not engineered. Check with the building department where the structure is being constructed to find out if an engineer's review is required. We can help facilitate engineering for your plan if you are unable to find a local professional who can assist you.
 • Your building department may also require a site plan of your lot be included with your submittal for a building permit. A local design

professional in your area should be able to help you with this as well as evaluating your chosen plan to make sure it meets the local building requirements for weather and seismic conditions.
 • Please read and understand your licensing agreement. This will clearly define what you can and can not do with your construction documents.
 • Electronic formats of packages sales (PDF & CAD Files) are final. Printed construction documents may be exchanged with an exchange fee within 30 days of purchase.
 • Unless purchasing an additional build license (one time additional or multi-build additional) you may build the structure one time. Ownership of the construction documents can not be transferred or sold.
 • Unless purchasing a printable package, you may not make additional copies of the plan without the permission of the designer.

Plan Packages Explained



Ready to purchase plans and unsure which construction package to choose? We hope the following can help you decide. Please note: Plan packages vary and may not be available on all plans.



1 Set Study Package


This is a single set of prints will allow you to completely review the plan, get accurate quotes for construction costs, and contemplate custom design changes you may wish to make. Study sets are marked Not For Construction and without the license necessary to legally build the home. Don't worry though, we allow a 100% upgrade credit towards a buildable licensed construction package within one year of your 1 Set Study Package purchase.



5 and 8 Set Print Packages


These are licensed print packages of the construction documents printed and shipped to you.



PDF Print Package


This PDF package is a non-modifiable, print only PDF file that saves time, gas, money, and paper! Many contractors and building jurisdictions are working with digital formats of the construction documents. The PDF print package allows for you or your contractor to distribute the construction documents to sub-contractors, use electronic submittals to apply for the building permit, and print the sets you need when you need them.



Plans Now

Don't wait - get your plans NOW! This digital plan package is a downloadable Print PDF Package (non-modifiable, print only). Includes a single build license - electronically signed and emailed to you immediately after placing your order - with permissions to make copies of the plan locally as needed.



PDF Master


An unlocked modifiable PDF file. Same conveniences as the PDF print package with the added benefit which allows your local professional to make engineering mark-ups or design changes using compatible software.



CAD Electronic Files


By using CAD compatible software that use .dwg or .dxf file formats enables you or a local professional to modify the construction documents and integrate those changes throughout the entire plan. Once the modifications or engineering is incorporated into your design, you can reproduce as many copies of the plan needed to build the structure.





Still unsure which package to choose? You may want to discuss this with your builder or give us a call.

How to Evaluate a Plan



When looking at plans, most often it's the exterior profile that will first grab your attention. You love the exterior, it's exactly what you envisioned, but what about the inside of the design? It's important to spend some time and digest the design's interior elements. Here are a few considerations to think about when evaluating if this is the right plan for you.



 • First off, think about how you live in your home.
 • Do you or your family prefer to have one or two places to gather all together, or do you prefer to have more private places within your home.
 • Consider how you move through the home in your day to day life. Visually walk through the front door, what do you walk through or by? Do the same from your back door and garage entrances.
 • Is your family life more formal or casual and do the living spaces of the design complement your lifestyle?
 • Will your existing furniture fit within the spaces?
 • If you have a family, do you want the master suite close to the secondary bedrooms or separated?
 • Do you entertain? Are there elements within the floor plan that allow for entertaining with ease?
 • How do you take care of laundry? Would you prefer the laundry room to be close by the kitchen, garage, or close to the bedrooms?
 • Storage space? Is there enough?
 • Consider your access to the outside? Do you want to extend your indoor living to the outside? Is there adequate porches or patios for how you want to enjoy your yard? Where will you place your grill or patio furniture?
 • The view? What are you going to see when you look out your windows? Need more privacy or need more accessibility to a view?
 • Make sure your garage will accommodate your cars, RV, or boat. Adequate storage? Do you want or need a door to the exterior beyond the opening garage doors? Utility sink? Space for an additional refrigerator or freezer?
 • Consider things about your current home/residence that you don't like. By pin pointing these areas of your current home that you don't care for, you can make sure they are addressed in the next.


After reviewing giving it careful consideration you may find that the plan would be perfect with a few design changes. HPC can certainly help you with that with our customization services.

The Customization Process



So you've found that almost perfect design, and find yourself saying, "if only". Whether it's changing the size of a room, adding space or features, or moving things around, we can help you take that almost perfect design and make it perfect for you.



It's exciting to create a plan to fit your exact needs and wants whether it's your home, garage or even a potential investment property.



When you locate your plan, select the "Get Started" button located on the plan detail page. Here you will be able to share with us the changes to the interior and/or the exterior of the design. You can even upload a sketch if you have one. Complete the necessary contact information and select "Submit Request".



HPC will then forward your request to a designer to evaluate your changes and provide a quote within two business days. HPC is a "true quote" plan website. That means HPC will not mark-up the modification quote, we want to help keep costs down for you!

Douglas - 79398

Waite Residential Design Company

$877.50
(No reviews yet) Write a Review
SKU:
210 - 20-88H
Plan Number:
79398
Date Added:
02/28/2024
Date Modified:
03/19/2024
Designer:
nick@waiterdc.com
Designer Plan Title:
20-88H
Plan SKU:
20-88H
Plan Name:
Douglas
Max Price:
1552.50
Min Price:
877.50
Pricing Set Title:
Residence 2501 - 3000
Family Plan:
DG-06
Creation Date:
08/2019
Structure Type:
Single Family
Square Footage: Total Living:
2710
Square Footage: 1st Floor:
1092
Square Footage: 2nd Floor:
1618
Square Footage: Garage:
672
Square Footage: Porch:
185
Square Footage: Deck:
158
Floors:
2
FLOORS_filter:
2
Bedrooms:
4
BEDROOMS_filter:
4
Baths Full:
2
FULL BATHROOMS_filter:
2
Baths Half:
1
HALF BATHROOMS_filter:
1
Ridge Height:
29'11"
Overall Exterior Depth:
48.8
Overall Exterior Width:
60
Main Floor Ceiling Height:
8'
Second Floor Ceiling Height:
8'
Available Foundations:
Crawl Space
Available Foundations:
Concrete Slab
Available Foundations:
Basement
Available Foundations:
Daylight/Walk-out Basement
Default Foundation:
Basement
Available Walls:
2x4 Wood Frame
Available Walls:
2x6 Wood Frame
Default Wall:
2x6 Wood Frame
Ext Wall Material:
vinyl siding
Lot Slope:
Level Lot
Roof Framing:
Combination Stick/Truss
Roof Pitch:
10/12
Primary Style:
Farmhouse
Secondary Styles:
Cottage
Secondary Styles:
Country
Collections:
House Plans with Photos
Master Suite Features:
Luxurious Master Bathroom
Master Suite Features:
Second Floor Master Suite
Master Suite Features:
Separate Tub & Shower
Master Suite Features:
Walk In Closet
Master Suite Features:
Separate From Other Bedrooms
Interior Features:
Casual or Open Style Living Room
Interior Features:
Den, Office, Library, or Study
Interior Features:
Guest Room, Suite, or Apartment
Interior Features:
Loft
Interior Features:
Great Room
Kitchen Features:
Kitchen Island
Kitchen Features:
Walk-In or Wall Pantry
Utility Room Features:
Close to Bedrooms
Utility Room Features:
Second Floor Utility Room
Garage Type:
Attached
Garage Orientation:
Front Entry
Garage Bays Min:
2
Garage Bays Max:
2
GARAGE BAYS_filter:
2
Exterior & Porch Features:
Covered Porch
Exterior & Porch Features:
Deck
Search Keywords:
Flex Room
Styles:
Cottage House Plans
Styles:
Country House Plans
Collections:
2 Story House Plans
Collections:
4 Bedroom House Plans
Styles:
Farmhouse Plans
Product Rank:
2127
Regions:
Northeast House Plans/Maine Home Plans

Approaching the farmhouse, you're greeted by its classic charm and welcoming presence. A front entry two-car garage sits to one side, providing convenient parking and storage space. A covered front porch offers a cozy spot to enjoy the fresh air and take in the surrounding scenery. Traditional elements like gabled roofs and white trim add to the farmhouse's timeless appeal.

Stepping through the front door, you enter into the heart of the home – the great room. This spacious living area is flooded with natural light, creating a warm and inviting atmosphere. A fireplace anchors one wall, perfect for gathering around on cool evenings.

Adjacent to the great room is the farmhouse-style kitchen, complete with a large walk-in pantry. Ample counter space and modern appliances make meal preparation a breeze, while the generous pantry provides plenty of storage for all your cooking essentials.

A study or flex room is situated nearby, offering a versatile space that can be adapted to suit your needs. Whether used as a home office, playroom, or cozy reading nook, this room adds to the functionality of the main level.

A mudroom provides a convenient transition space between the garage and the main living areas, featuring storage cubbies and hooks for coats and bags. A powder room is also located on this level, offering added convenience for guests.

Ascending the staircase, you arrive at the second level, where additional living spaces await. A loft area provides a cozy retreat, perfect for lounging or enjoying quiet moments away from the hustle and bustle below.

The guest bedroom offers comfortable accommodations for visitors, while two secondary bedrooms provide plenty of space for family members or additional guests. A full bathroom, complete with a washer/dryer, serves these bedrooms, offering convenience and functionality.

At the end of the hall, you'll find the luxurious primary bedroom suite. This spacious retreat features a walk-in closet, providing ample storage space for clothing and accessories. The en-suite bathroom boasts a dual vanity, soaking tub, and separate shower, creating a spa-like oasis where you can unwind and relax after a long day.

Overall, this two-story farmhouse offers a perfect blend of classic charm and modern convenience. From its inviting exterior to its thoughtfully designed interior spaces, it provides a comfortable and stylish retreat for its residents to enjoy for years to come.

Farmhouse House Plan - Balsam 21838 - Front Exterior
bdrms 3 Floors 2 SQFT 1652 bath 2 / 1 Garage 0
Plan 21838 Balsam
View Details
wish-list-icon-white
info-white-icon

TAKE A LOOK AT THESE OTHER PLAN VERSIONS

These plans are spin-off designs and closely related to the original plan you found. One of these
may fit your design goals! Click View Details to get a closer look.

Farmhouse House Plan - Balsam 21838 - Front Exterior
bdrms 3 Floors 2 SQFT 1652 bath 2 / 1 Garage 0
Plan 21838 Balsam
View Details
wish-list-icon-white
info-white-icon

1 Set Package

One printed set of construction drawings. Includes a single build license.

1 Set Study Package

A single review set of the construction drawings marked Not For Construction and do not include a license to build. Upgrade to a licensed construction package or sign on for modifications within 1 year of purchase and received a 100% upgrade credit.

3 Sets

Three printed sets of construction drawings. Includes a single build license.

3 Set Package

Three printed sets of construction drawings. Includes a single-build license.

4 Sets

Four printed sets of construction drawings. Includes a single build license.

3 Sets + PDF Print

Three printed sets of construction drawings plus a Print PDF (non-modifiable). Includes a single build license.

4 Set Package

Four printed sets of construction drawings. Includes a single build license.

5 Set + Print PDF

Five printed sets of construction drawings plus a Print PDF (non-modifiable, print only). Includes a single build license.

5 Sets + Print PDF

Five printed sets of construction drawings plus a Print PDF (non-modifiable, print only). Includes a single build license.

5 Set Package

Five printed sets of construction drawings. Includes a single build license.

5 Set with PDF

Five printed sets of construction drawings plus a PDF copy of the construction drawings.

5 Sets with PDF

Five printed sets of construction drawings plus a PDF copy of the construction drawings.

6 Set Package

Six printed sets of construction drawings. Includes a single build license.

8 Set + Print PDF

Eight printed sets of construction drawings plus a Print PDF (non-modifiable, print only). Includes a single build license.

8 Set Package

Eight printed sets of construction drawings. Includes a single build license.

8 Sets with PDF

Eight printed sets of construction drawings plus a PDF copy of the construction drawings.

CAD + PDF

A digital plan package which includes both CAD (DWG) and PDF Files. Includes a single build license which allow the plans to be modified and reproduced locally.

CAD + PDF Unlimited

A digital plan package which includes both CAD (DWG) and PDF Files and includes an unlimited build license.

CAD Masters

A digital copy of the construction drawings in a DWG file format. Includes a single build license with permissions which allow the plan to be modified and reproduced locally. CAD Masters are emailed saving shipping costs and time.

CAD Package

A digital copy of the construction drawings in a DWG file format. Includes a single build license with permissions which allow the plan to be modified and reproduced locally. CAD Packages are emailed saving shipping costs and time.

CAD w/Multi-Use License

A digital copy of the construction drawings in a DWG file format. Includes a multiple build license with permissions which allow the plan to be modified and reproduced locally. CAD Packages are emailed saving shipping costs and time.

Concept Plan Package

Includes both PDF and DWG files of the Elevations, Floor Plan(s), and Roof Outline which can be used by a local design professional to complete the construction documents to site specific requirements, conditions and building practices. Includes a non-transferable unlimited build license.

Construction Package

Five printed sets of construction drawings that include a material list and a PDF (small size).

Master Builder CAD Set

A digital plan package which includes both the PDF Master and CAD Master (DWG) and includes an unlimited build license.

PDF Bid Set

A digital review set for bidding and personal study in a PDF format. Marked Not For Construction and does not include a license to build. Upgrade to a licensed construction package or proceed with plan customization services and receive a 100% credit (valid within 1 year of purchase).

PDF File

A digital copy of the construction drawings in a PDF format. Includes a single build license with modification permissions so a local professional with compatible software can make changes to the plan. PDF Files are emailed saving shipping costs and time.

PDF Master

A digital copy of the construction drawings in a PDF format. Includes a single build license with modification permissions so a local professional with compatible software can make changes to the plan. PDF Files are emailed saving shipping costs and time.

PDF Print Package

A digital copy of the construction drawings in a PDF format (non-modifiable, print only). Includes a single build license with permissions to make copies of the plan locally as needed. The PDF Print Package is emailed saving shipping costs and time.

PDF Print Package + 1 Set

One printed set of construction drawings plus a PDF Print Package (non-modifiable, print only). Includes a single build license.

PDF Print Package + 2 Sets

Two printed sets of construction drawings plus a PDF Print Package (non-modifiable, print only). Includes a single build license.

PDF Print Package + 3 Sets

Three printed sets of construction drawings plus a PDF Print Package (non-modifiable, print only). Includes a single build license.

PDF Print Package + 4 Sets

Four printed sets of construction drawings plus a PDF Print Package (non-modifiable, print only). Includes a single build license.

PDF Print Package + 5 Sets

Five printed sets of construction drawings plus a PDF Print Package (non-modifiable, print only). Includes a single build license.

PDF Study Set

A digital review set for bidding and personal study in a PDF format. Marked Not For Construction and does not include a license to build. Upgrade to a licensed construction package or proceed with plan customization services and receive a 100% credit (valid within 1 year of purchase).

PDF Unlimited

A digital copy of the construction drawings in a PDF format that includes an unlimited build license.

PDF w/Multi-Use License

A digital copy of the construction drawings in a PDF format. Includes a multiple build license with permissions which allow the plan to be modified and reproduced locally. This package is emailed saving shipping costs and time.

Plan Package

A digital plan package which includes the PDF Master, CAD Master (DWG), and Sketchup Pro Files (.layout). This package is emailed saving shipping costs and time.

Plans Now

Don’t wait – get your plans NOW! This digital plan package is a downloadable Print PDF Package (non-modifiable, print only). Includes a single build license – signed during check out – with permissions to make copies of the plan locally as needed.

Preliminary Set

One printed set of the elevations and floor plan(s) for study and review. Marked Not For Construction and does not include a license to build. Upgrade to a licensed construction package or proceed with plan customization services and receive a 100% credit (valid within 1 year of purchase).

Pricing Package

One printed set of the elevations and floor plan(s) plus a material list.

Reproducible Vellums

One printed set of construction drawings on transparent paper. Includes a single build license with permissions to modify and reproduce the plans. Modifications to this plan package are made by hand.

Review Set

A digital study set of the elevations and floor plan(s) only. The review set is not to scale. Upgrade to a licensed construction package or proceed with plan customization services and receive a 100% credit (valid within 1 year of purchase).

Study Set via Email

A digital review set for bidding and personal study in a PDF format. Marked Not For Construction and does not include a license to build. Upgrade to a licensed construction package or proceed with plan customization services and receive a 100% credit (valid within 1 year of purchase).

Study Set via email

A digital review set for bidding and personal study in a PDF format. Marked Not For Construction and does not include a license to build. Upgrade to a licensed construction package or proceed with plan customization services and receive a 100% credit (valid within 1 year of purchase).

5 Set Package Kit

Bundled savings! Includes 5 Print Sets of construction drawings, a PDF formatted to print 11’x17”, and a material list. Please note that the PDF may not be to scale.
