This house is the perfect combination of function and beauty. With three levels of finished space this house is perfect for entertaining or just relaxing. With a media room and entertainment area in the basement level, an open living space plus a deck with a pergola on the main level, and all bedrooms and full bathrooms upstairs, there is plenty of room to stretch out and enjoy the view. 2 car garage provides vehicle storage plus additional storage over the garage means your won’t be running out of space anytime soon.
Plan 54938
Cape Shore

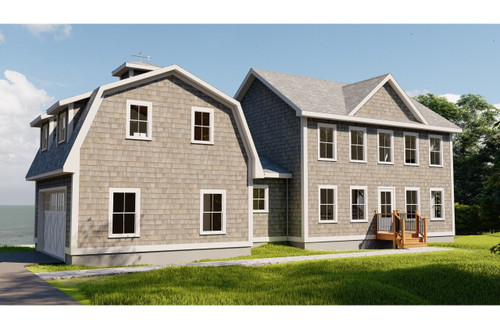

Photographs may show modifications made to plans. Copyright owned by designer.
- At a glance
-
2262 Square Feet
-
3 Bedrooms
-
2 Full Baths
-
3 Floors
-
2 Car Garage
- More about the plan
- Pricing
- Basic Details
- Building Details
- Interior Details
- Garage Details
- See All Details
Plan details
Basic Details
Building Details
Interior Details
Garage
What's Included in a Plan Set?
Title page: Rendered perspectives of the home, usually two views, and general construction notes, a drawing schedule and area schedule.

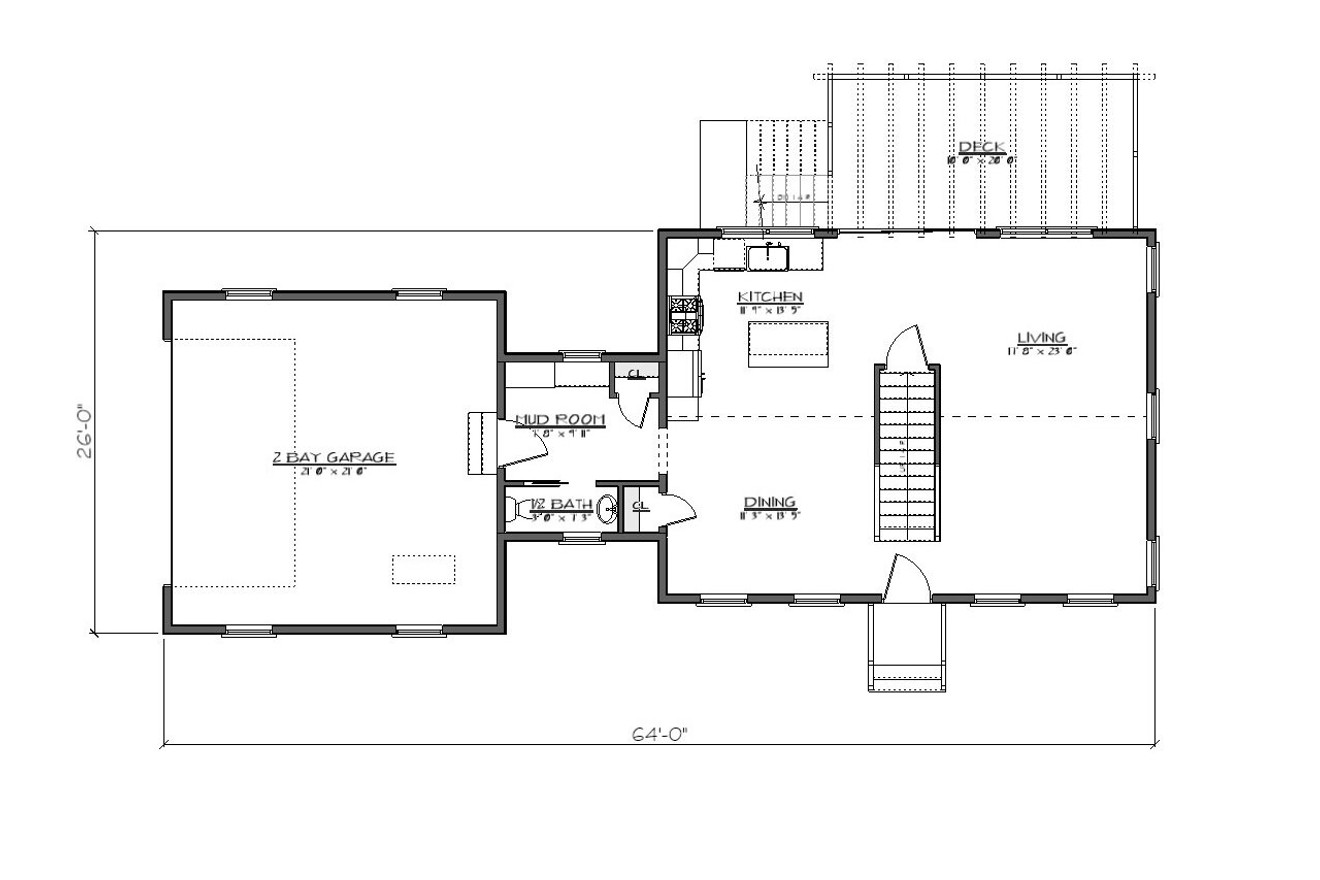

Main/First Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

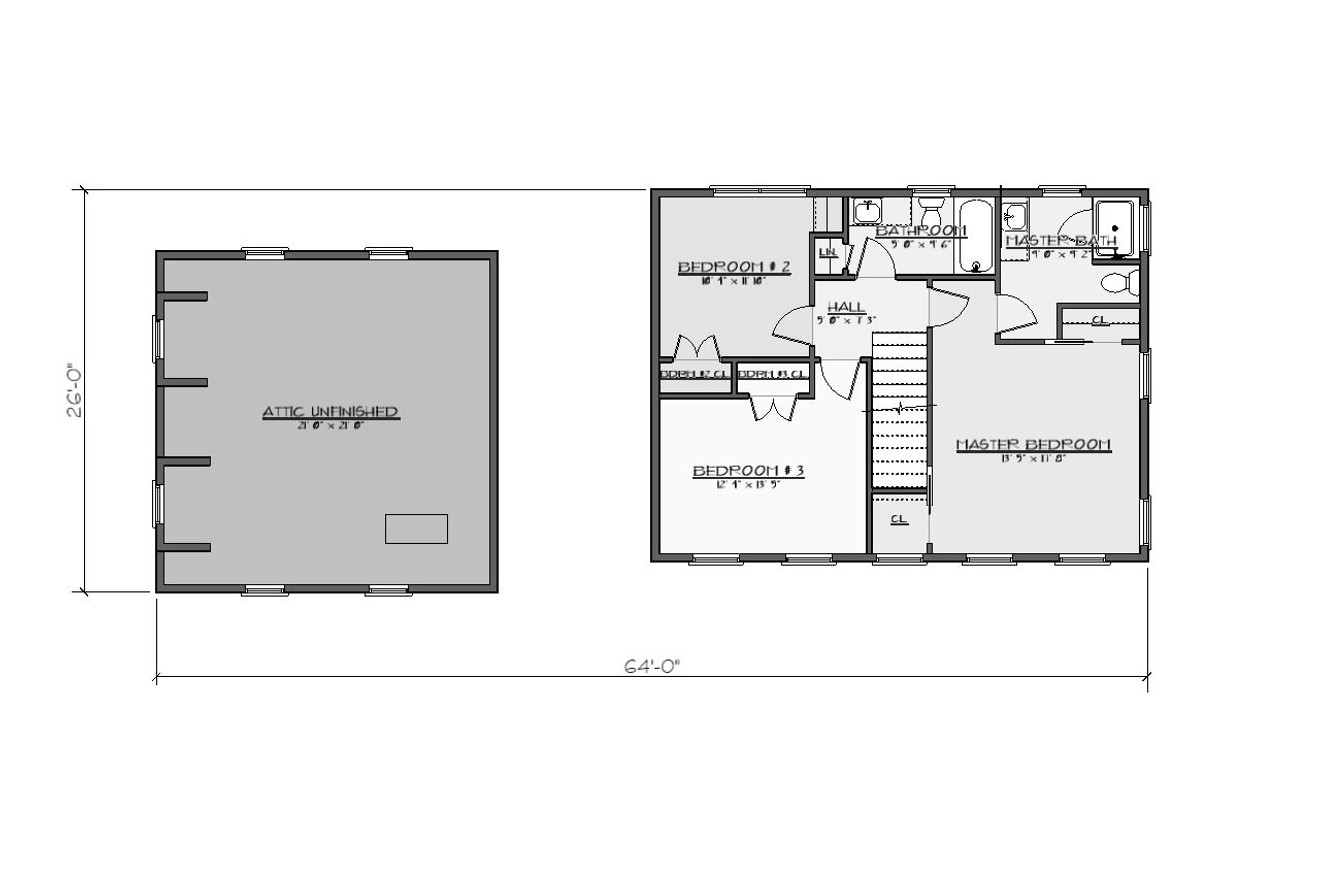

Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

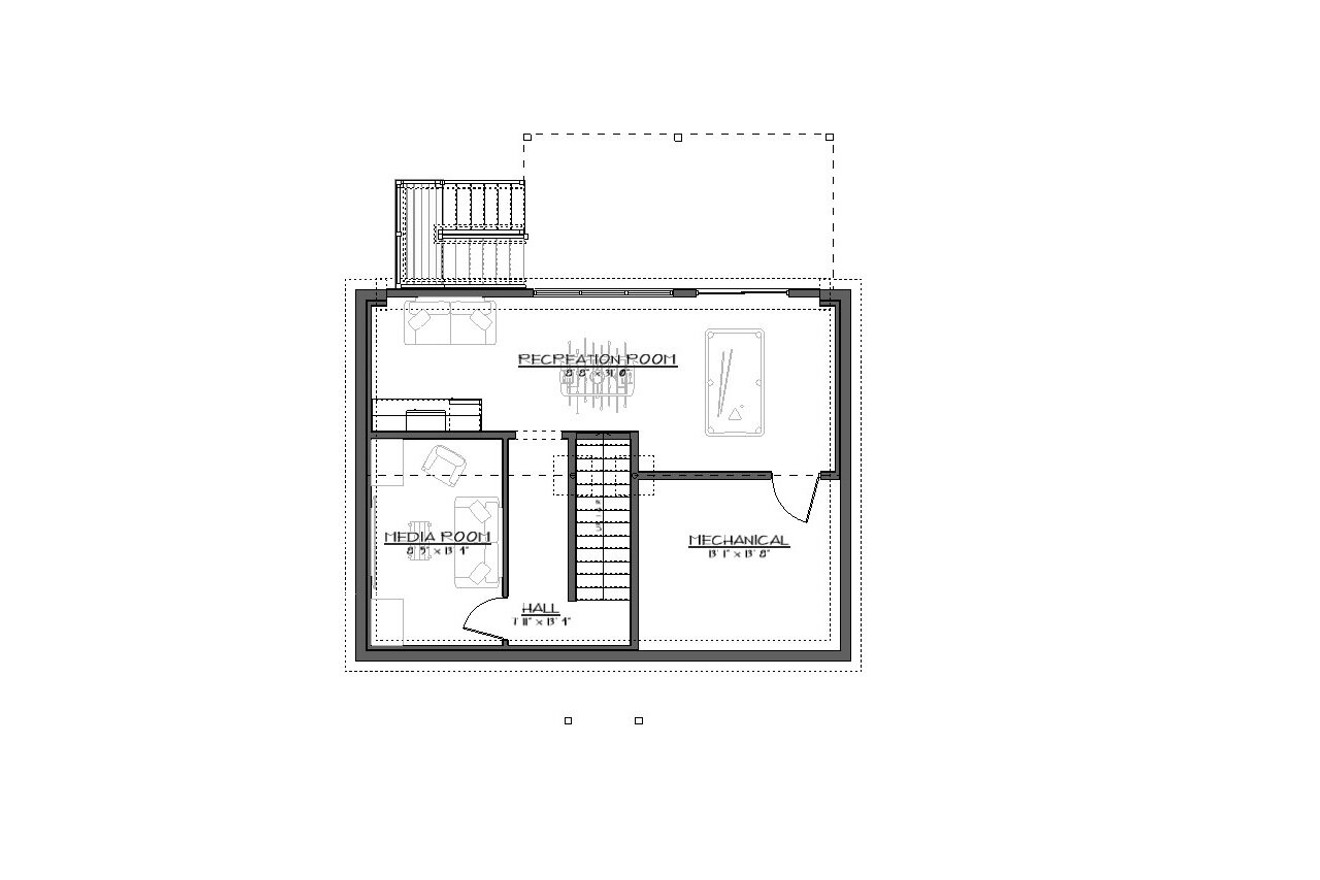

Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Roof Plan: Shows roof outlines, roof pitches, overhangs, conventional framing/trusses, beams, roof framing details, etc.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Section & Details sheet(s): Shows a cross-section of the home. Shows location and spacing of floor joists and supporting walls or beams, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc., and appear as needed throughout the prints.
Schedules sheet: area schedule (each floor, finished basement space, porches/deck, and individual unit sizes (if applicable). Window, interior door, and exterior door schedules that include width, height, and handing.
Available by request (additional charges apply) - request quote.
Electrical layout: receptacle and lighting layout as well as locations for special electrical items (appliance items, Electrical vehicle chargers, etc). No load calculations performed.
Plumbing layouts: fixtures dimensioned to centerlines and vent locations. Primarily for slab layouts.
Plot plan: based on survey by others. Must provide a CAD file of survey and necessary information for setbacks and lot coverage, etc.
New to Plan Buying?
Cape Shore - 54938
Waite Residential Design Company
$0.00
- SKU:
- 210 - 20-043H
- Plan Number:
- 54938
- Date Added:
- 07/20/2023
- Date Modified:
- 02/20/2024
- Designer:
- nick@waiterdc.com
- Designer Plan Title:
- 20-043H
- Plan SKU:
- 20-043H
- Plan Name:
- Cape Shore
- Pricing Set Title:
- Residence 2001 - 2500
- Creation Date:
- 06/2020
- Structure Type:
- Single Family
- Square Footage: Total Living:
- 2262
- Square Footage: 1st Floor:
- 888
- Square Footage: 2nd Floor:
- 768
- Square Footage: Basement:
- 606
- Square Footage: Deck:
- 200
- Floors:
- 3
- FLOORS_filter:
- 3
- Bedrooms:
- 3
- BEDROOMS_filter:
- 3
- Baths Full:
- 2
- FULL BATHROOMS_filter:
- 2
- Baths Half:
- 1
- HALF BATHROOMS_filter:
- 1
- Ridge Height:
- 34'9"
- Overall Exterior Depth:
- 26
- Overall Exterior Width:
- 64
- Main Floor Ceiling Height:
- 8'
- Second Floor Ceiling Height:
- 8'
- Available Foundations:
- Crawl Space
- Available Foundations:
- Concrete Slab
- Available Foundations:
- Basement
- Default Foundation:
- Basement
- Available Walls:
- 2x4 Wood Frame
- Available Walls:
- 2x6 Wood Frame
- Default Wall:
- 2x6 Wood Frame
- Ext Wall Material:
- Shingles
- Lot Slope:
- Downhill Sloping Lot
- Lot Type:
- Corner Lot
- Roof Framing:
- Truss
- Roof Pitch:
- 8/12
- Primary Style:
- Colonial
- Secondary Styles:
- Classic
- Master Suite Features:
- Shower Only
- Master Suite Features:
- Second Floor Master Suite
- Interior Features:
- Casual or Open Style Living Room
- Interior Features:
- Media Room
- Interior Features:
- Recreation Room/Game Room
- Interior Features:
- Storage
- Interior Features:
- Walk-Out/Daylight Basement
- Kitchen Features:
- Kitchen Island
- Kitchen Features:
- Breakfast Nook/Dining Area
- Utility Room Features:
- Mudroom or Mudhall
- Garage Type:
- Attached
- Garage Orientation:
- Side Entry
- Garage Bays Min:
- 2
- Garage Bays Max:
- 2
- GARAGE BAYS_filter:
- 2
- Garage Features:
- Attic Space
- Exterior & Porch Features:
- Deck
- Collections:
- 3 Bedroom House Plans
- Styles:
- Colonial House Plans
- Styles:
- Classic House Plans
- Collections:
- Sloped Lot House Plans
- Product Rank:
- 1893
- Square Footage: Garage:
- 484
- Square Footage: Storage:
- 387
- Max Price:
- 1150.00
- Min Price:
- 650.00
Original Design Climate Zone: 6a
Original Design adheres to IRC 2015 & IECC 2015
3d Model available upon request
