Shephard Deluxe II
Photographs may show modifications made to plans. Copyright owned by designer.
- At a glance
-
2200
Square Feet
-
3
Bedrooms
-
3
Full Baths
-
3
Floors
- More about the plan
- Pricing
- Basic Details
- Building Details
- Interior Details
- Garage Details
- See All Details
Contact HPC Experts
Have questions? Help from our plan experts
is just a click away.
To help us answer your questions promptly, please copy and paste the following information in the fields below.
Let’s be social
Connect with us for the latest from HPC
Plan details
Basic Details
LIVING SQ FT:
2200 sq ft

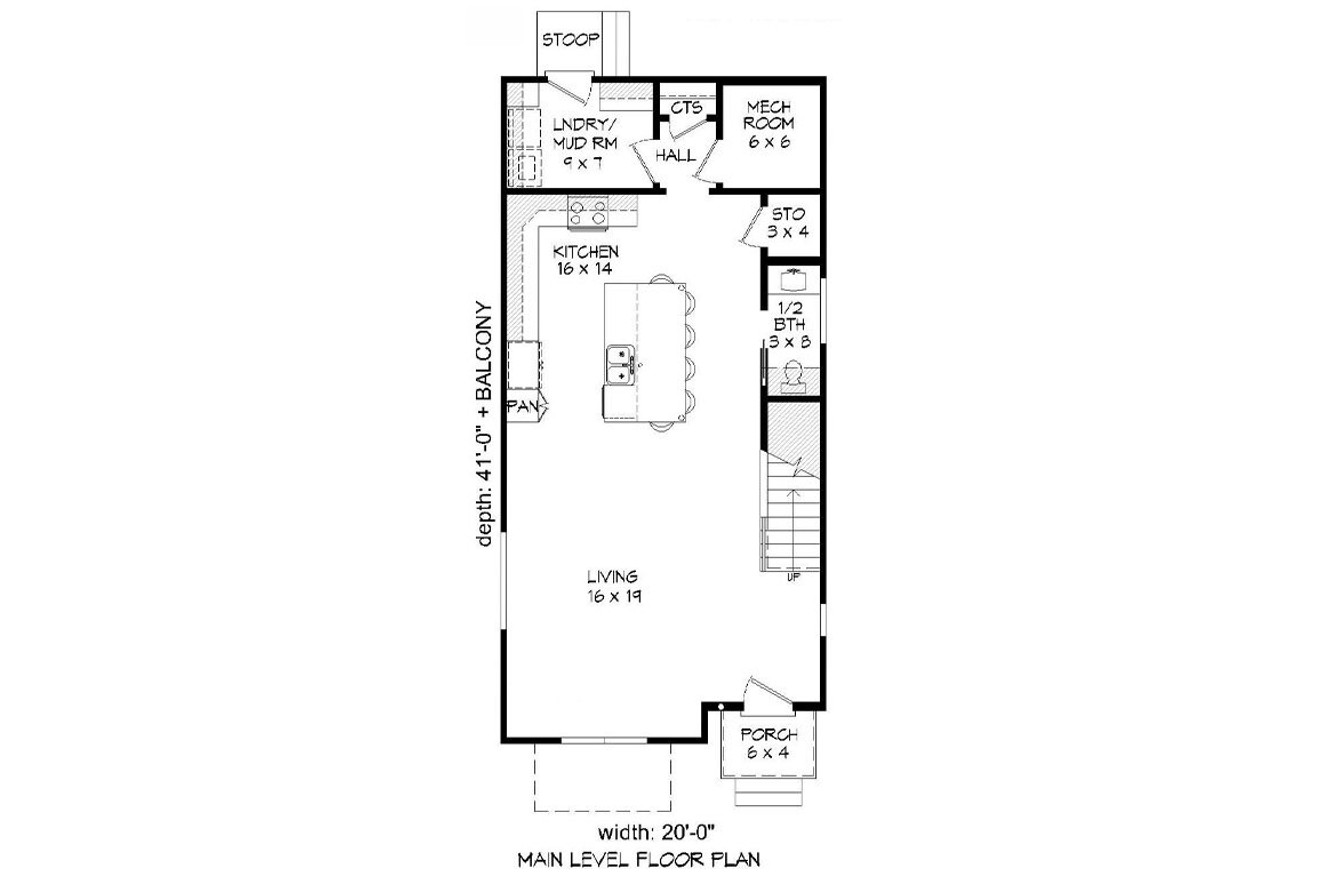

1ST FLOOR SQ FT:
805 sq ft

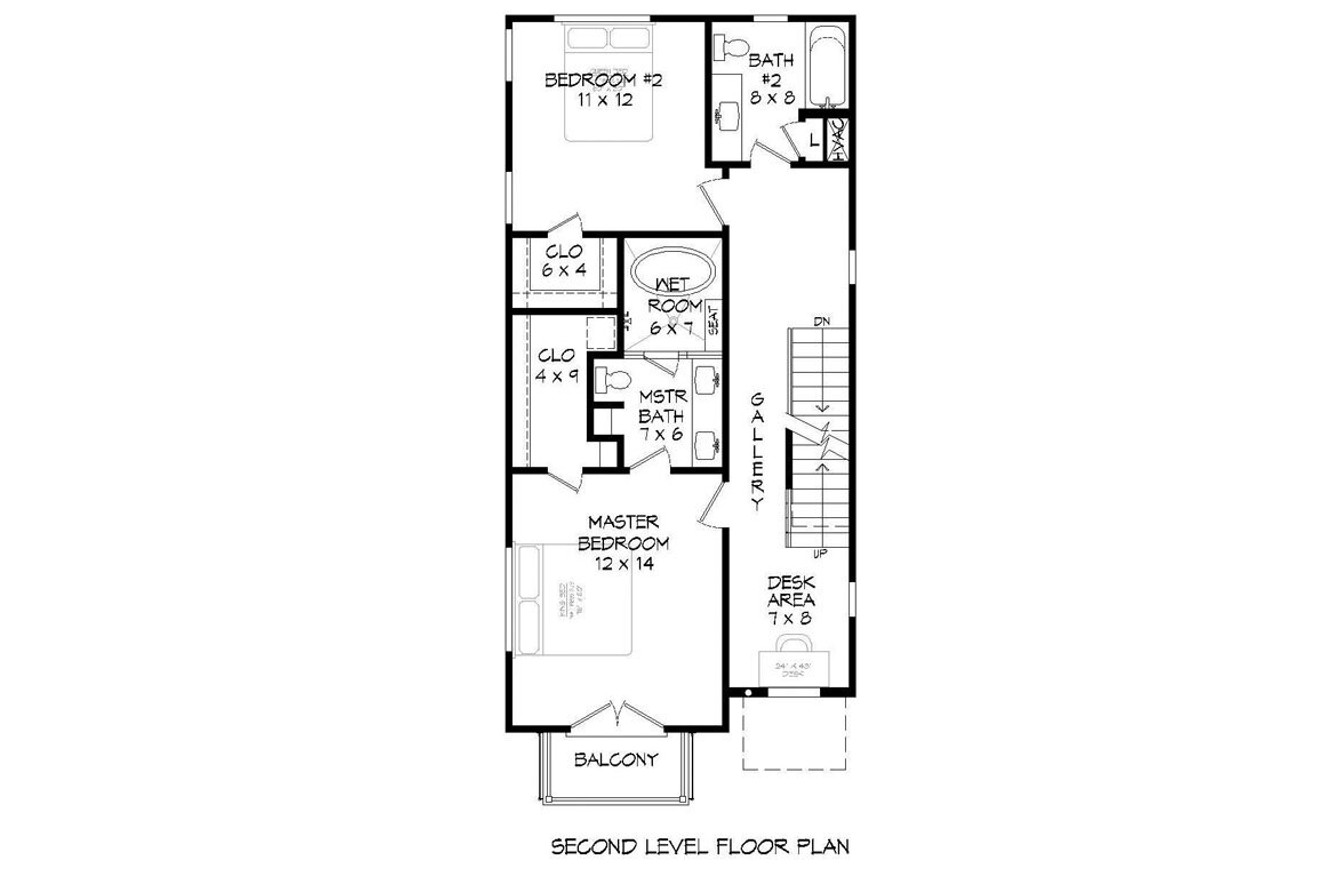

2ND FLOOR SQ FT:
805 sq ft
PORCH SQ FT:
94 sq ft
3RD FLOOR SQ FT:
590 sq ft
MEZZANINE SQ FT:
190 sq ft
DIMENSIONS:
20'-0"W × 41'-0"D
BUILDING HEIGHT:
30'-4"
BEDROOMS:
3
FULL BATHS:
3
HALF BATHS:
1
FLOORS:
3
PRIMARY STYLE:
Modern
SECONDARY STYLES:
Contemporary
COLLECTIONS:
New Urban House Plans, Townhouse Plans, Plans Now, 3 Bedroom House Plans, Narrow Lot House Plans
Building Details
PRIMARY FOUNDATION:
Concrete Slab
ALTERNATE FOUNDATIONS:
Crawl Space, Basement, Daylight/Walk-out Basement
BUILDING LOT TYPE:
Front View, Narrow Lot (<45'), Level Lot
ROOF FRAMING:
Truss
PRIMARY WALL TYPE:
2x4 Wood Frame
ALTERNATE WALL TYPES:
2x6 Wood Frame
EXTERIOR WALL MATERIAL:
Siding, Brick
EXTERIOR & PORCH FEATURES:
Balcony, Covered Patio, Covered Porch
Interior Details
MAIN FLOOR CEILING HEIGHT:
9'-0"
SECOND FLOOR CEILING HEIGHT:
8'
KITCHEN FEATURES:
Eating Bar or Peninsula, Kitchen Island, Walk-In or Wall Pantry
UTILITY ROOM FEATURES:
Close to Kitchen or Garage, Main Floor Utility Room
MASTER SUITE FEATURES:
Exterior Access, Second Floor Master Suite, Separate Tub & Shower, Walk In Closet, Wet Room
INTERIOR FEATURES:
Beverage Bar, Bonus Room, Great Room, Storage
Garage
What's Included in a Plan Set?

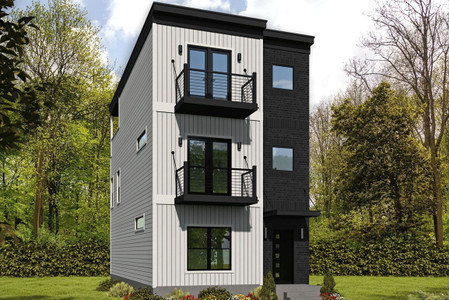

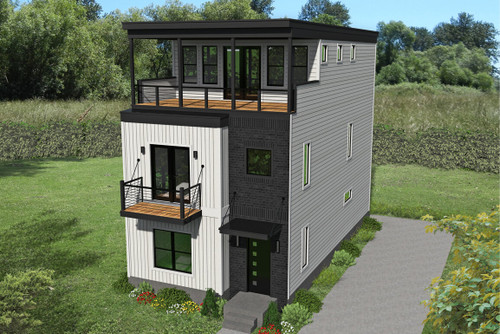

Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
New to Plan Buying?
Shephard Deluxe II - 76135
Legacy Home Plans
- SKU:
- 107 - 0805-805-590-284
- Plan Number:
- 76135
- Pricing Set Title:
- F (2001-2250)
- Designer Plan Title:
- 0805-805-590-284
- Date Added:
- 07/18/2019
- Date Modified:
- 01/08/2025
- Designer:
- orders@legacyhomeplans.com
- Plan Name:
- Shephard Deluxe II
- Note Plan Packages: Plans Now:
- PDF Download!
- Structure Type:
- Single Family
- Best Seller (Rank #):
- 10000
- Square Footage: Total Living:
- 2200
- Square Footage: 1st Floor:
- 805
- Square Footage: 2nd Floor:
- 805
- Square Footage: Porch:
- 94
- Square Footage: 3rd Floor:
- 590
- Square Footage: Mezzanine:
- 190
- Floors:
- 3
- FLOORS_filter:
- 3
- Bedrooms:
- 3
- BEDROOMS_filter:
- 3
- Baths Full:
- 3
- FULL BATHROOMS_filter:
- 3
- Baths Half:
- 1
- HALF BATHROOMS_filter:
- 1
- Ridge Height:
- 30'4"
- Overall Exterior Depth:
- 41
- Overall Exterior Width:
- 20
- Main Floor Ceiling Height:
- 9'
- Second Floor Ceiling Height:
- 8'
- Available Foundations:
- Concrete Slab
- Default Foundation:
- Concrete Slab
- Available Walls:
- 2x4 Wood Frame
- Available Walls:
- 2x6 Wood Frame
- Default Wall:
- 2x4 Wood Frame
- Ext Wall Material:
- Siding, Brick
- Lot Type:
- Front View
- Lot Type:
- Narrow Lot (
- Lot Slope:
- Level Lot
- Roof Framing:
- Truss
- Primary Style:
- Modern
- Secondary Styles:
- Contemporary
- Collections:
- New Urban House Plans
- Collections:
- Townhouse Plans
- Master Suite Features:
- Exterior Access
- Master Suite Features:
- Second Floor Master Suite
- Master Suite Features:
- Separate Tub & Shower
- Master Suite Features:
- Walk In Closet
- Master Suite Features:
- Wet Room
- Interior Features:
- Beverage Bar
- Interior Features:
- Bonus Room
- Interior Features:
- Great Room
- Interior Features:
- Storage
- Kitchen Features:
- Eating Bar or Peninsula
- Kitchen Features:
- Kitchen Island
- Kitchen Features:
- Walk-In or Wall Pantry
- Utility Room Features:
- Close to Kitchen or Garage
- Utility Room Features:
- Main Floor Utility Room
- Exterior & Porch Features:
- Balcony
- Exterior & Porch Features:
- Covered Patio
- Exterior & Porch Features:
- Covered Porch
- Family Plan:
- 0749-749-532-287
- Styles:
- Modern House Plans
- Styles:
- Contemporary House Plans
- Product Rank:
- 8780
- Collections:
- Plans Now
- Collections:
- 3 Bedroom House Plans
- Collections:
- Narrow Lot House Plans
- Creation Date:
- 03/2019
- Plan SKU:
- 0805-805-590-284
- Available Foundations:
- Crawl Space
- Available Foundations:
- Basement
- Available Foundations:
- Daylight/Walk-out Basement
- Max Price:
- 1900.00
- Min Price:
- 1015.00
- Regions:
- Southeast House Plans/Tennessee Home Plans
