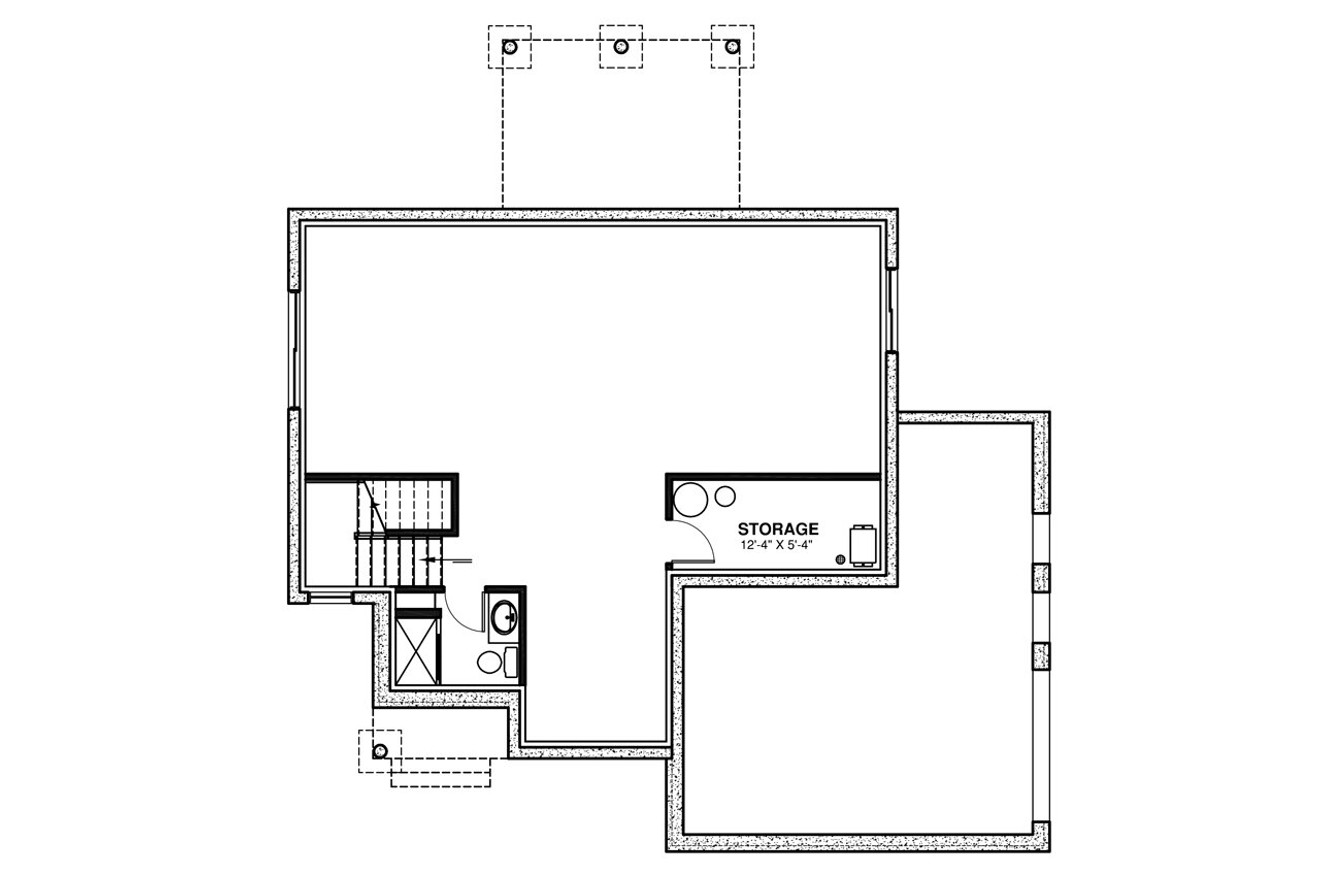

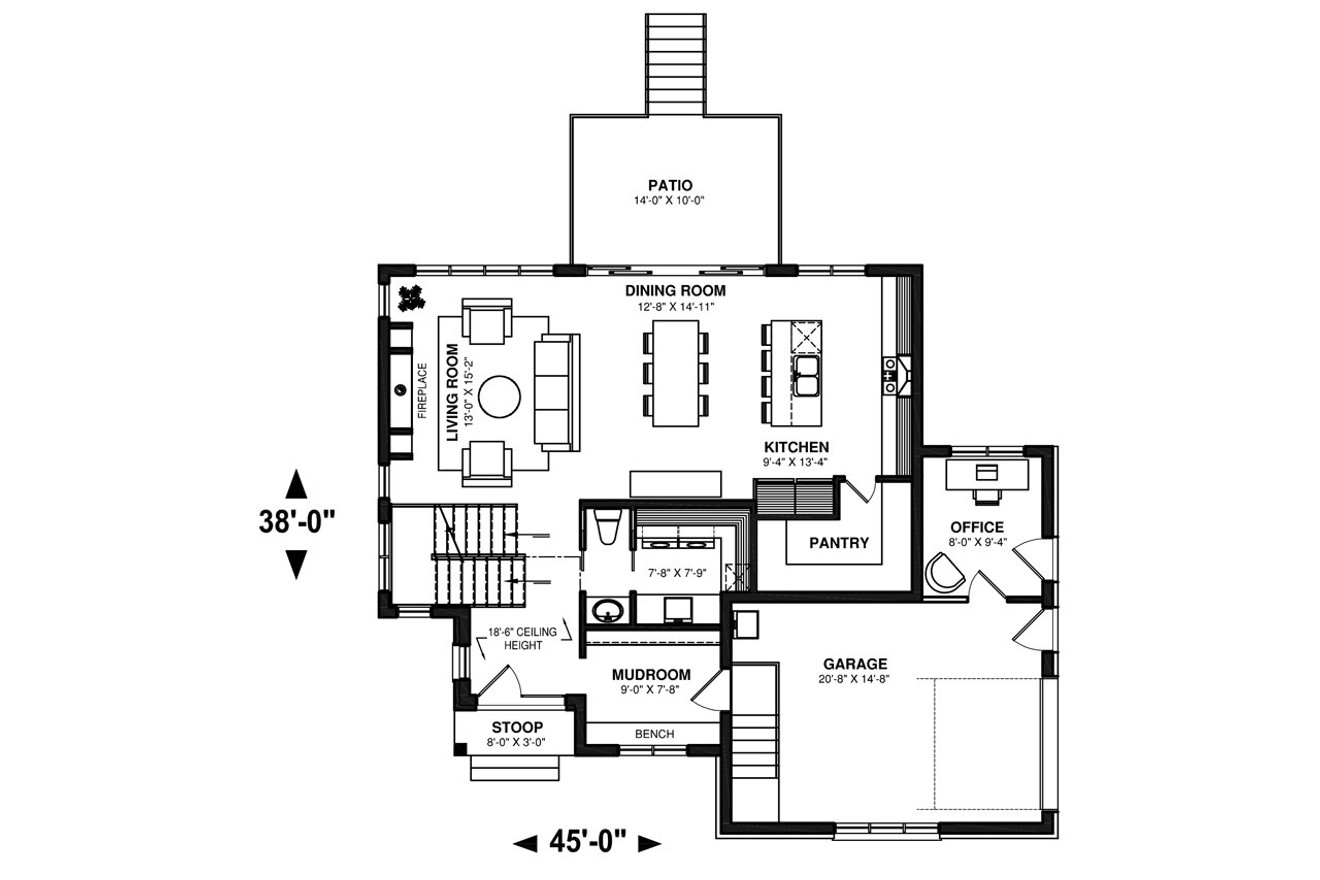

The Sunny Haven 3 is a 3 bedroom house plan designed with an informal, open floor plan. The first floor is filled with the great room where the living room, dining room, and kitchen are all open to each other. A mudroom connects the home to the attached 1 car, side entry garage which has access to the home office. Upstairs are all three bedrooms. The master suite has a private bathroom with a separate tub and shower and a large walk-in closet. The two secondary bedrooms each have nice walk-in closets and share a second full bathroom. To avoid running dirty clothes downstairs and through the rest of the home, there is a small room with a laundry chute. The basement level offers another full bathroom plus a storage closet and lots of flexibility to finish the space to fit the homeowners' needs.
Plan 40533
Sunny Haven 3
Photographs may show modifications made to plans. Copyright owned by designer.
- At a glance
-
2113 Square Feet
-
3 Bedrooms
-
2 Full Baths
-
2 Floors
-
1 Car Garage
- More about the plan
- Pricing
- Basic Details
- Building Details
- Interior Details
- Garage Details
- See All Details
Plan details
Basic Details
Building Details
Interior Details
Garage
What's Included in a Plan Set?
Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
New to Plan Buying?
Sunny Haven 3 - 40533
Drummond House Plans
$1,655.00
- SKU:
- 122 - 3615-V2 Sunny Haven 3
- Plan Number:
- 40533
- Pricing Set Title:
- Code E - 1800 to 2199
- Designer Plan Title:
- 3615-V2 Sunny Haven 3
- Date Added:
- 06/04/2021
- Date Modified:
- 01/09/2025
- Designer:
- jlanglois@drummondhouseplans.com
- Plan Name:
- Sunny Haven 3
- Note Plan Packages: PDF Print Package:
- Best Value!
- Family Plan:
- 3615-V1 Sunny Haven 2
- Structure Type:
- Single Family
- Best Seller (Rank #):
- 10000
- Square Footage: Total Living:
- 2113
- Square Footage: Garage:
- 330
- Square Footage: 1st Floor:
- 1056
- Square Footage: 2nd Floor:
- 1057
- Floors:
- 2
- FLOORS_filter:
- 2
- Bedrooms:
- 3
- BEDROOMS_filter:
- 3
- Baths Full:
- 2
- FULL BATHROOMS_filter:
- 2
- Baths Half:
- 1
- HALF BATHROOMS_filter:
- 1
- Ridge Height:
- 33'6"
- Overall Exterior Depth:
- 38
- Overall Exterior Width:
- 45
- Main Floor Ceiling Height:
- 9'
- Second Floor Ceiling Height:
- 8'
- Available Foundations:
- Basement
- Default Foundation:
- Basement
- Available Walls:
- 2x6 Wood Frame
- Default Wall:
- 2x6 Wood Frame
- Ext Wall Material:
- Siding/Brick
- Lot Type:
- Corner Lot
- Lot Slope:
- Side Sloping Lot
- Roof Framing:
- Truss
- Snow Roof Load:
- 55.00
- Roof Pitch:
- 10/12
- Primary Style:
- Modern
- Secondary Styles:
- Craftsman
- Secondary Styles:
- Farmhouse
- Collections:
- House Plans with Photos
- Master Suite Features:
- Second Floor Master Suite
- Master Suite Features:
- Separate Tub & Shower
- Master Suite Features:
- Walk In Closet
- Interior Features:
- Casual or Open Style Living Room
- Interior Features:
- Den, Office, Library, or Study
- Interior Features:
- Fireplace/Wood Stove
- Interior Features:
- Great Room
- Interior Features:
- Storage
- Kitchen Features:
- Breakfast Nook/Dining Area
- Kitchen Features:
- Eating Bar or Peninsula
- Kitchen Features:
- Kitchen Island
- Kitchen Features:
- Walk-In or Wall Pantry
- Utility Room Features:
- Close to Kitchen or Garage
- Utility Room Features:
- Main Floor Utility Room
- Utility Room Features:
- Mudroom or Mudhall
- Garage Type:
- Attached
- Garage Orientation:
- Side Entry
- Garage Bays Min:
- 1
- Garage Bays Max:
- 1
- GARAGE BAYS_filter:
- 1
- Exterior & Porch Features:
- Covered Porch
- Exterior & Porch Features:
- Deck
- Collections:
- 3 Bedroom House Plans
- Styles:
- Modern House Plans
- Styles:
- Craftsman House Plans
- Collections:
- 2 Story House Plans
- Collections:
- Sloped Lot House Plans
- Styles:
- Farmhouse Plans
- Product Rank:
- 8582
- Plan SKU:
- 3615-V2 Sunny Haven 3
- Max Price:
- 2655.00
- Min Price:
- 1655.00
- Regions:
- Canadian House Plans/Quebec Home Plans
