Plan 84732

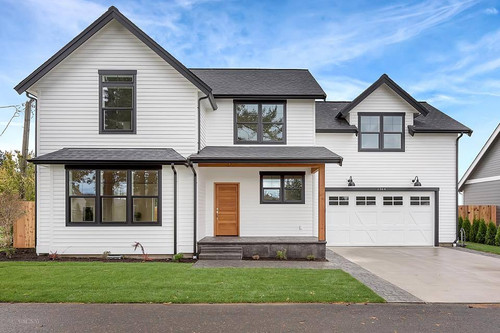

Photographs may show modifications made to plans. Copyright owned by designer.
- At a glance
-
2107 Square Feet
-
3 Bedrooms
-
2 Full Baths
-
2 Floors
-
2 Car Garage
- More about the plan
- Pricing
- Basic Details
- Building Details
- Interior Details
- Garage Details
- See All Details
Plan details
Basic Details
Building Details
Interior Details
Garage
What's Included in a Plan Set?
Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

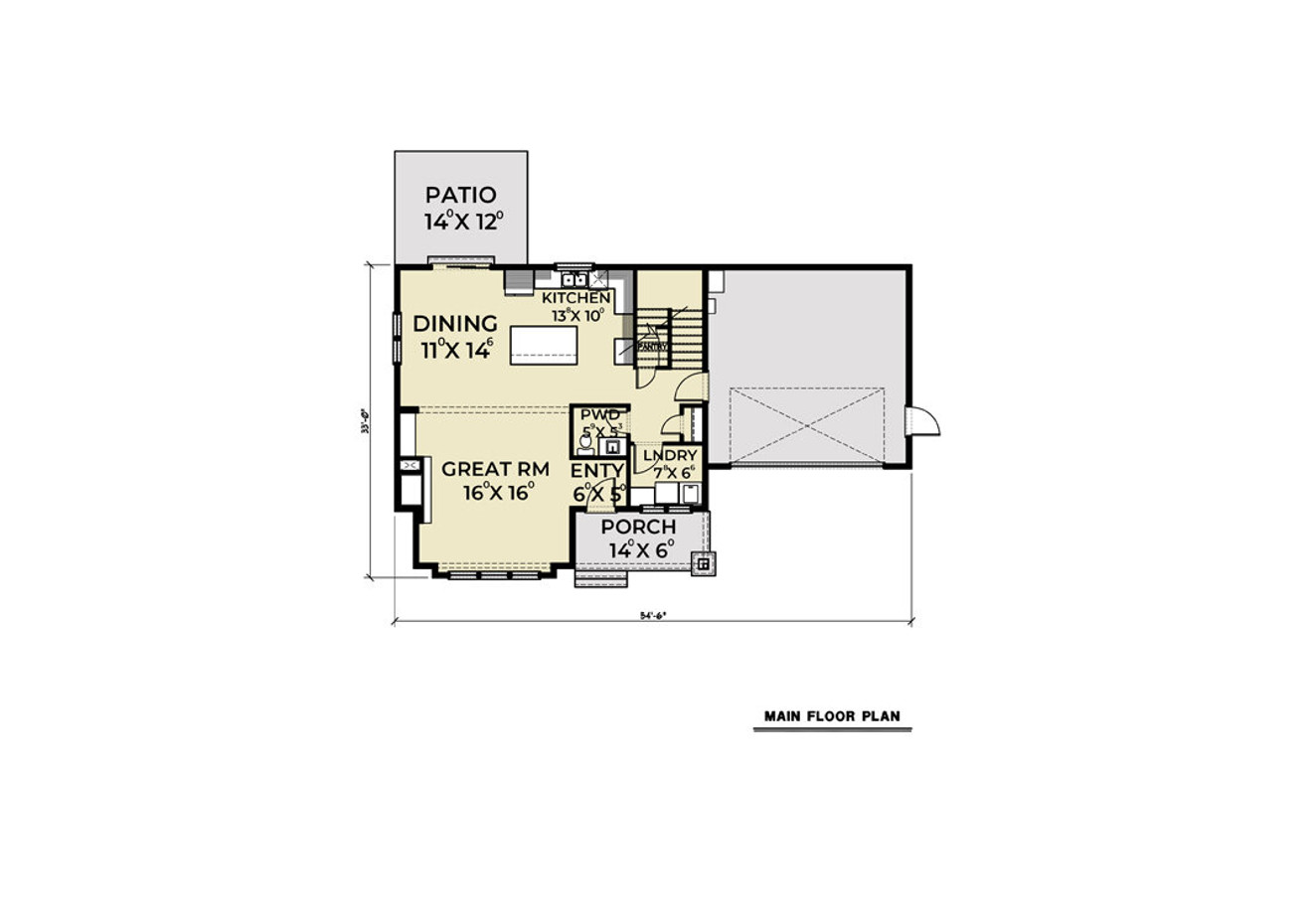

Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

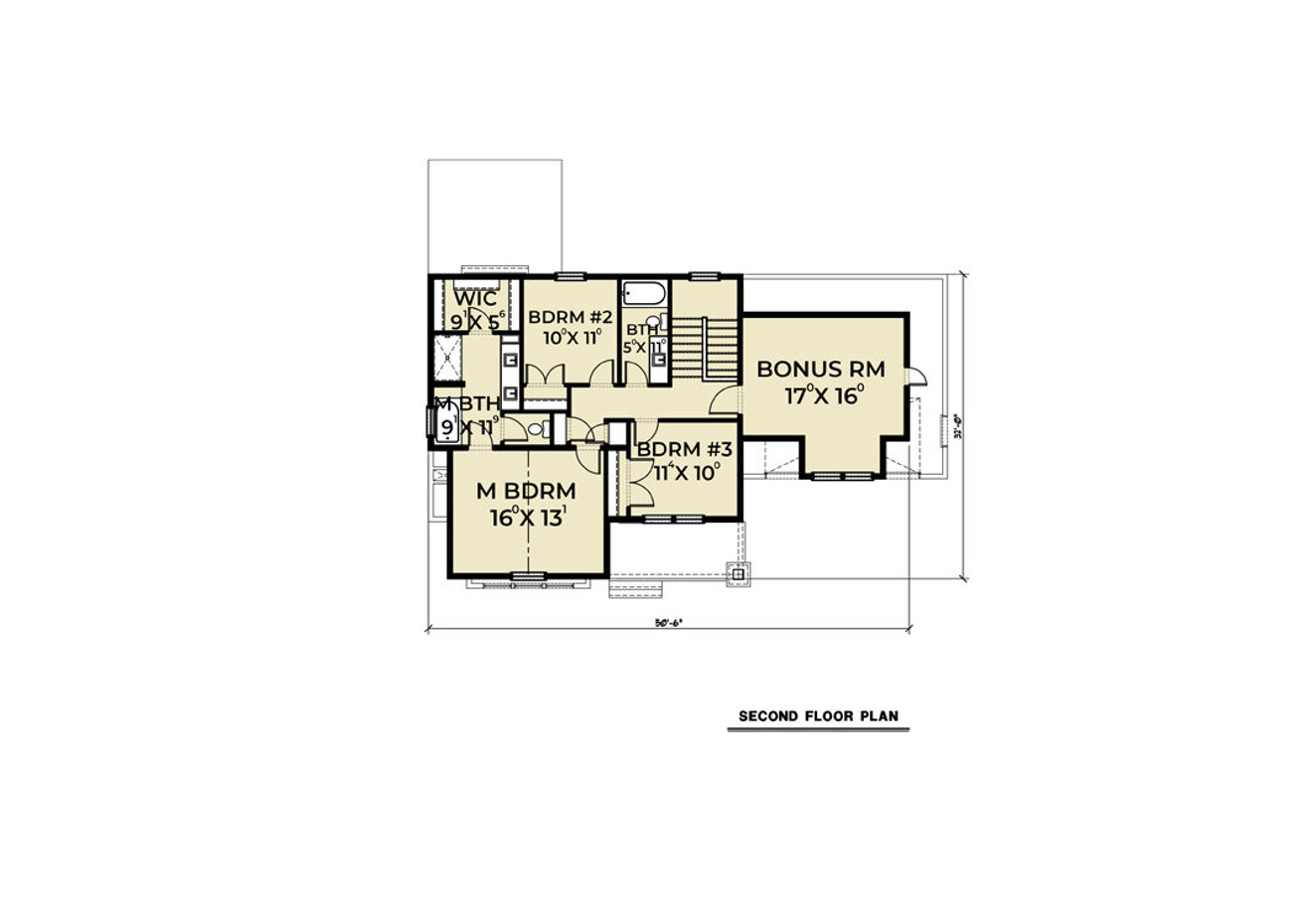

Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 3/4" = 1' scale, and appear as needed throughout the prints.
Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
New to Plan Buying?
84732
JWR Design Inc.
$0.00
- SKU:
- 145 - 16-180 Contemporary Farmhouse 806
- Plan Number:
- 84732
- Pricing Set Title:
- 0 - 3000 Sq Ft
- Designer Plan Title:
- 16-180 Contemporary Farmhouse 806
- Date Added:
- 06/23/2022
- Date Modified:
- 12/13/2023
- Designer:
- jwrplans@jwrdesign.com
- Structure Type:
- Single Family
- Best Seller (Rank #):
- 10000
- Square Footage: Total Living:
- 2107
- Square Footage: Bonus:
- 272
- Square Footage: Garage:
- 463
- Square Footage: 1st Floor:
- 973
- Square Footage: 2nd Floor:
- 862
- Square Footage: Patio:
- 168
- Floors:
- 2
- FLOORS_filter:
- 2
- Bedrooms:
- 3
- BEDROOMS_filter:
- 3
- Baths Full:
- 2
- FULL BATHROOMS_filter:
- 2
- Baths Half:
- 1
- HALF BATHROOMS_filter:
- 1
- Ridge Height:
- 28'11"
- Overall Exterior Depth:
- 33
- Overall Exterior Width:
- 54.6
- Main Floor Ceiling Height:
- 9'1"
- Second Floor Ceiling Height:
- 8'1"
- Available Foundations:
- Crawl Space
- Default Foundation:
- Crawl Space
- Available Walls:
- 2x6 Wood Frame
- Default Wall:
- 2x6 Wood Frame
- Ext Wall Material:
- Siding
- Lot Slope:
- Level Lot
- Roof Framing:
- Truss
- Roof Pitch:
- 8/12
- Primary Style:
- Farmhouse
- Secondary Styles:
- Country
- Secondary Styles:
- Modern
- Collections:
- Builder House Plans
- Collections:
- House Plans with Photos
- Master Suite Features:
- Private Toilet
- Master Suite Features:
- Second Floor Master Suite
- Master Suite Features:
- Separate Tub & Shower
- Master Suite Features:
- Walk In Closet
- Interior Features:
- Bonus Room
- Interior Features:
- Casual or Open Style Living Room
- Interior Features:
- Great Room
- Kitchen Features:
- Breakfast Nook/Dining Area
- Kitchen Features:
- Eating Bar or Peninsula
- Kitchen Features:
- Kitchen Island
- Kitchen Features:
- Walk-In or Wall Pantry
- Utility Room Features:
- Close to Kitchen or Garage
- Utility Room Features:
- Main Floor Utility Room
- Garage Type:
- Attached
- Garage Orientation:
- Front Entry
- Garage Bays Min:
- 2
- Garage Bays Max:
- 2
- GARAGE BAYS_filter:
- 2
- Exterior & Porch Features:
- Covered Patio
- Exterior & Porch Features:
- Covered Porch
- Collections:
- 3 Bedroom House Plans
- Styles:
- Country House Plans
- Styles:
- Modern House Plans
- Collections:
- 2 Story House Plans
- Product Rank:
- 3432
- Styles:
- Farmhouse Plans
- Plan SKU:
- 16-180 Contemporary Farmhouse 806
- Max Price:
- 2250.00
- Min Price:
- 875.00
