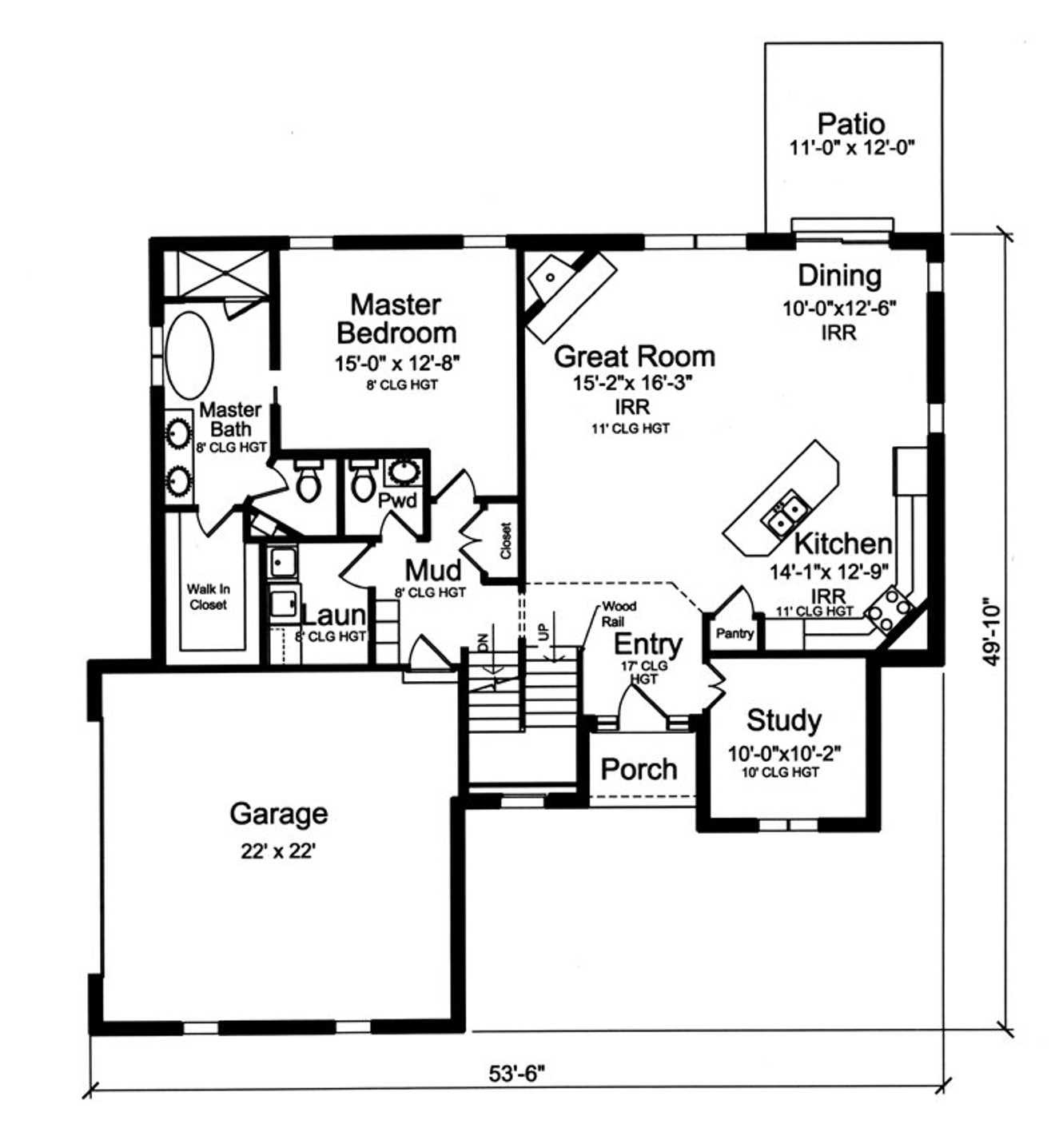

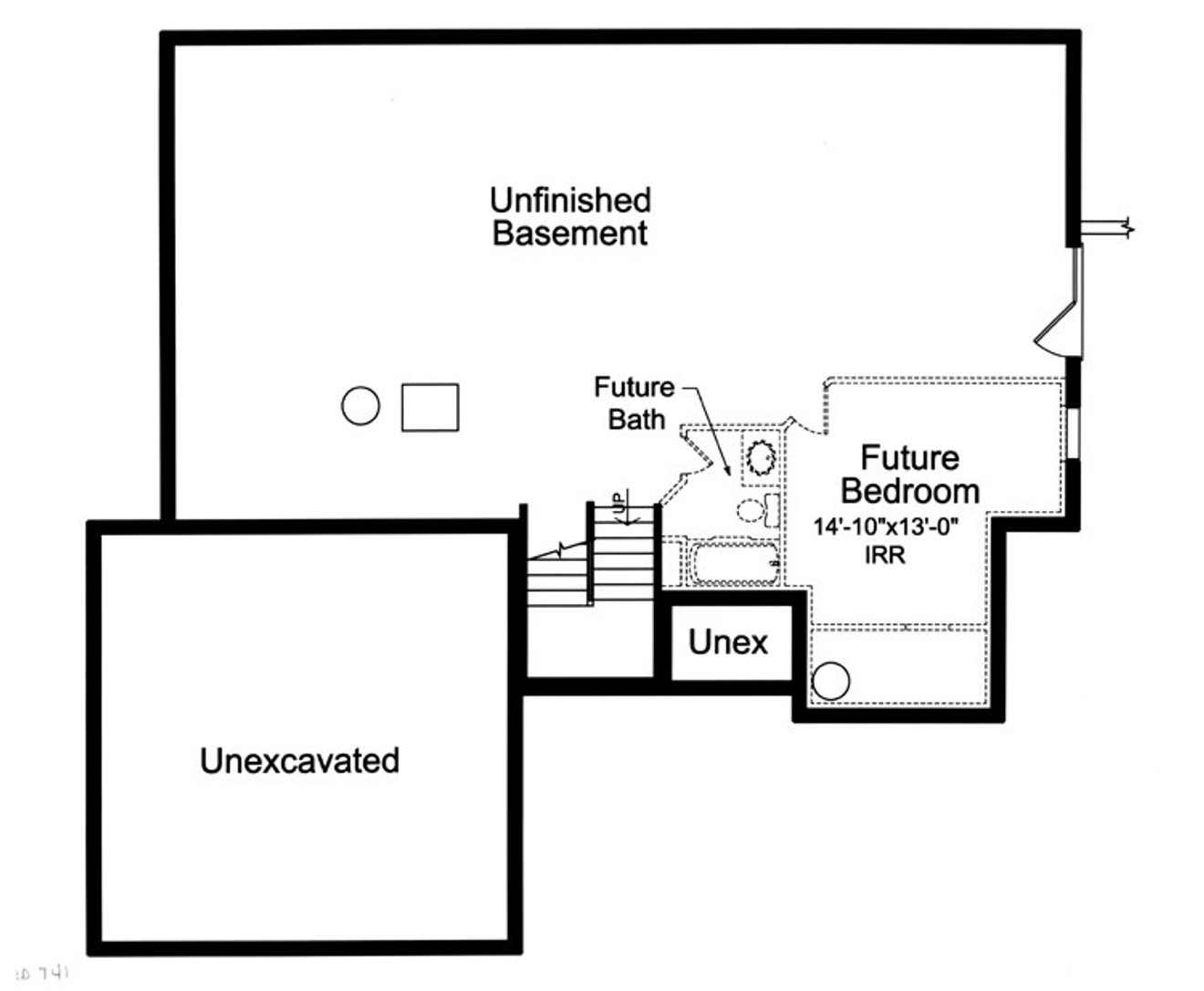

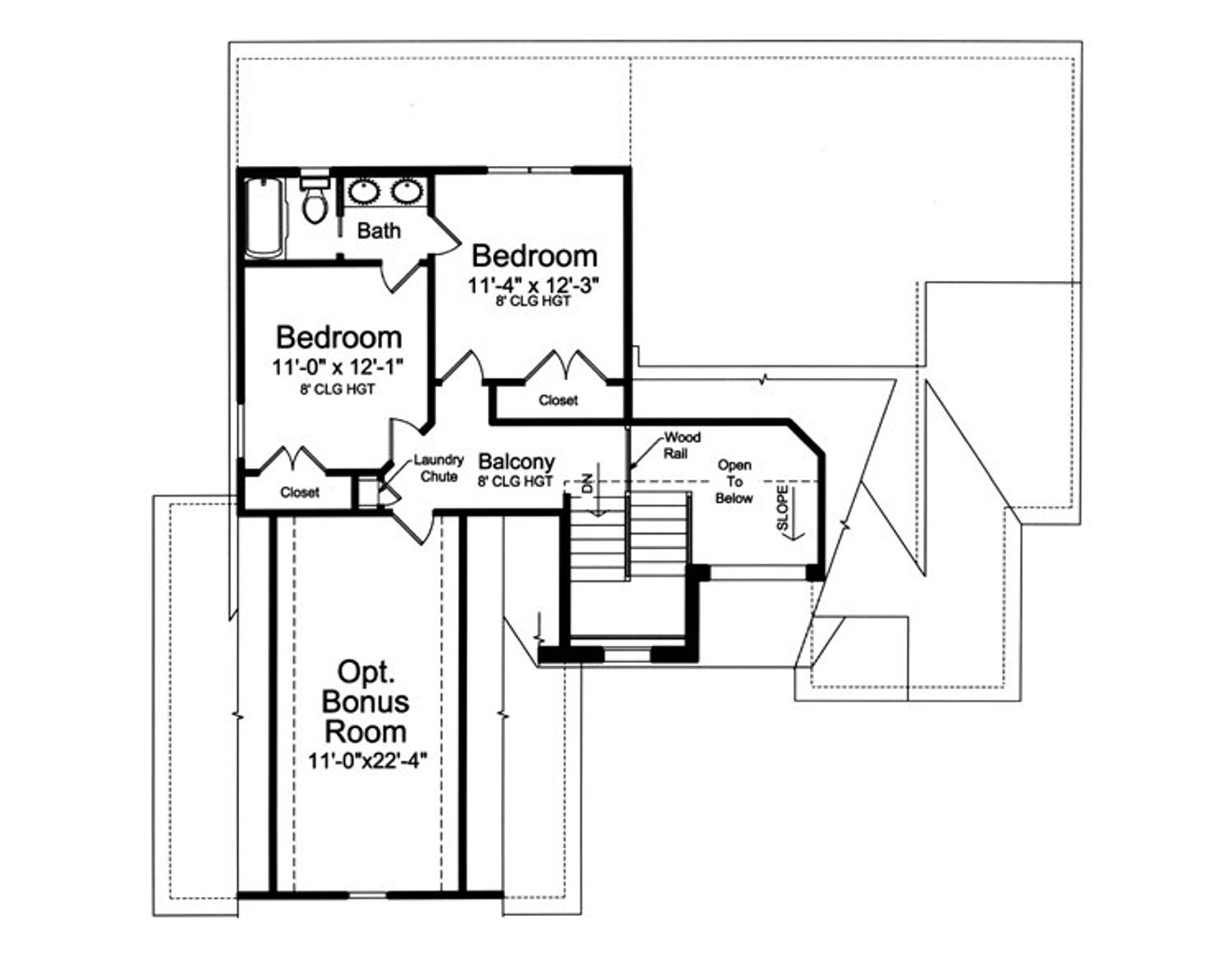

An open concept Great Room enjoys a corner gas fireplace and rear yard view. The Dining Area offers access to the rear yard and an 8 foot island with seating defines the Kitchen. The combined area boasts an 11' ceiling height while a private Study offers a cozy retreat for work or quiet reading. The first floor Master Suite showcases a stand-alone tub, shower, double bowl vanity and large walk-in closet. Split stairs lead to a second floor balcony that overlooks the Foyer and two additonal bedrooms that share a Jack & Jill bath. A large attic space above the garage provides storage and a basement foundation with a side yard access is standard on this plan.
Plan 22491
Loraine
Photographs may show modifications made to plans. Copyright owned by designer.
- At a glance
-
2065
Square Feet
-
3
Bedrooms
-
2
Full Baths
-
2
Floors
-
2
Car Garage
- More about the plan
- Pricing
- Basic Details
- Building Details
- Interior Details
- Garage Details
- See All Details
Contact HPC Experts
Have questions? Help from our plan experts
is just a click away.
To help us answer your questions promptly, please copy and paste the following information in the fields below.
Let’s be social
Connect with us for the latest from HPC
Plan details
Basic Details
Building Details
Interior Details
Garage
What's Included in a Plan Set?
a) Designs Loads
b) Concrete
c) Foundations
d) Structural Steel
e) Carpentry
f) Masonry
g) Other Misc. specs.
Front, Rear and Side Elevations @1/4” scale
Foundation plan (1/4” scale) indicating beam and column sizes along with lower level framing
Reinforced foundation and footing details
First & Second Floor plan (1/4” scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas.
Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods.
Roof plan (1/8”) indicating pitches and wall heights as well as truss profiles indicating hell heights and raised ceiling areas
Wall section indicating standard materials and detailing for typical wall construction.
Information regarding:
a) Floor joists
b) Exterior wall framing
c) Wall heights
d) Insulation
Roof framing is indicated as manufactured engineered roof trusses. Truss profiles are included.
New to Plan Buying?
Loraine - 22491
Studer Designs
$820.00
- SKU:
- 116 - SRD 741
- Plan Number:
- 22491
- Pricing Set Title:
- B - 2001 - 3000 sq ft
- Designer Plan Title:
- SRD 741
- Date Added:
- 02/08/2022
- Date Modified:
- 01/10/2024
- Designer:
- studer@studerdesigns.com
- Plan Name:
- Loraine
- Note Plan Packages: Plans Now:
- PDF Download!
- Family Plan:
- SRD 694
- Structure Type:
- Single Family
- Best Seller (Rank #):
- 10000
- Square Footage: Total Living:
- 2065
- Square Footage: Basement:
- 1570
- Square Footage: Bonus:
- 258
- Square Footage: Garage:
- 492
- Square Footage: 1st Floor:
- 1570
- Square Footage: 2nd Floor:
- 495
- Square Footage: Porch:
- 32
- Square Footage: Total Under Roof:
- 2815
- Floors:
- 2
- FLOORS_filter:
- 2
- Bedrooms:
- 3
- BEDROOMS_filter:
- 3
- Baths Full:
- 2
- FULL BATHROOMS_filter:
- 2
- Baths Half:
- 1
- HALF BATHROOMS_filter:
- 1
- Ridge Height:
- 27'2"
- Overall Exterior Depth:
- 49.10
- Overall Exterior Width:
- 53.6
- Main Floor Ceiling Height:
- 8'1"
- Second Floor Ceiling Height:
- 8'1"
- Available Foundations:
- Daylight/Walk-out Basement
- Default Foundation:
- Daylight/Walk-out Basement
- Available Walls:
- 2x4 Wood Frame
- Default Wall:
- 2x4 Wood Frame
- Ext Wall Material:
- Brick & Stone
- Lot Type:
- Corner Lot
- Lot Slope:
- Side Sloping Lot
- Roof Framing:
- Truss
- Snow Roof Load:
- 30.00
- Roof Pitch:
- 8/12
- Primary Style:
- Traditional
- Secondary Styles:
- Cape Cod
- Secondary Styles:
- Classic
- Collections:
- Builder House Plans
- Collections:
- 1.5 Story House Plans
- Master Suite Features:
- Main Floor Master Suite
- Master Suite Features:
- Private Toilet
- Master Suite Features:
- Separate From Other Bedrooms
- Master Suite Features:
- Separate Tub & Shower
- Master Suite Features:
- Walk In Closet
- Master Suite Features:
- Walk-In Shower
- Interior Features:
- Bonus Room
- Interior Features:
- Casual or Open Style Living Room
- Interior Features:
- Fireplace/Wood Stove
- Interior Features:
- Great Room
- Interior Features:
- Loft
- Interior Features:
- Walk-Out/Daylight Basement
- Kitchen Features:
- Breakfast Nook/Dining Area
- Kitchen Features:
- Eating Bar or Peninsula
- Kitchen Features:
- Kitchen Island
- Kitchen Features:
- Walk-In or Wall Pantry
- Utility Room Features:
- Close to Bedrooms
- Utility Room Features:
- Main Floor Utility Room
- Utility Room Features:
- Mudroom or Mudhall
- Garage Type:
- Attached
- Garage Orientation:
- Side Entry
- Garage Bays Min:
- 2
- Garage Bays Max:
- 2
- GARAGE BAYS_filter:
- 2
- Exterior & Porch Features:
- Covered Porch
- Collections:
- 3 Bedroom House Plans
- Styles:
- Traditional House Plans
- Styles:
- Cape Cod House Plans
- Styles:
- Classic House Plans
- Collections:
- 2 Story House Plans
- Collections:
- Sloped Lot House Plans
- Product Rank:
- 5743
- Creation Date:
- 06/2021
- Plan SKU:
- SRD 741
- Max Price:
- 1775.00
- Min Price:
- 820.00
- Regions:
- Northeast House Plans/Kentucky Home Plans
