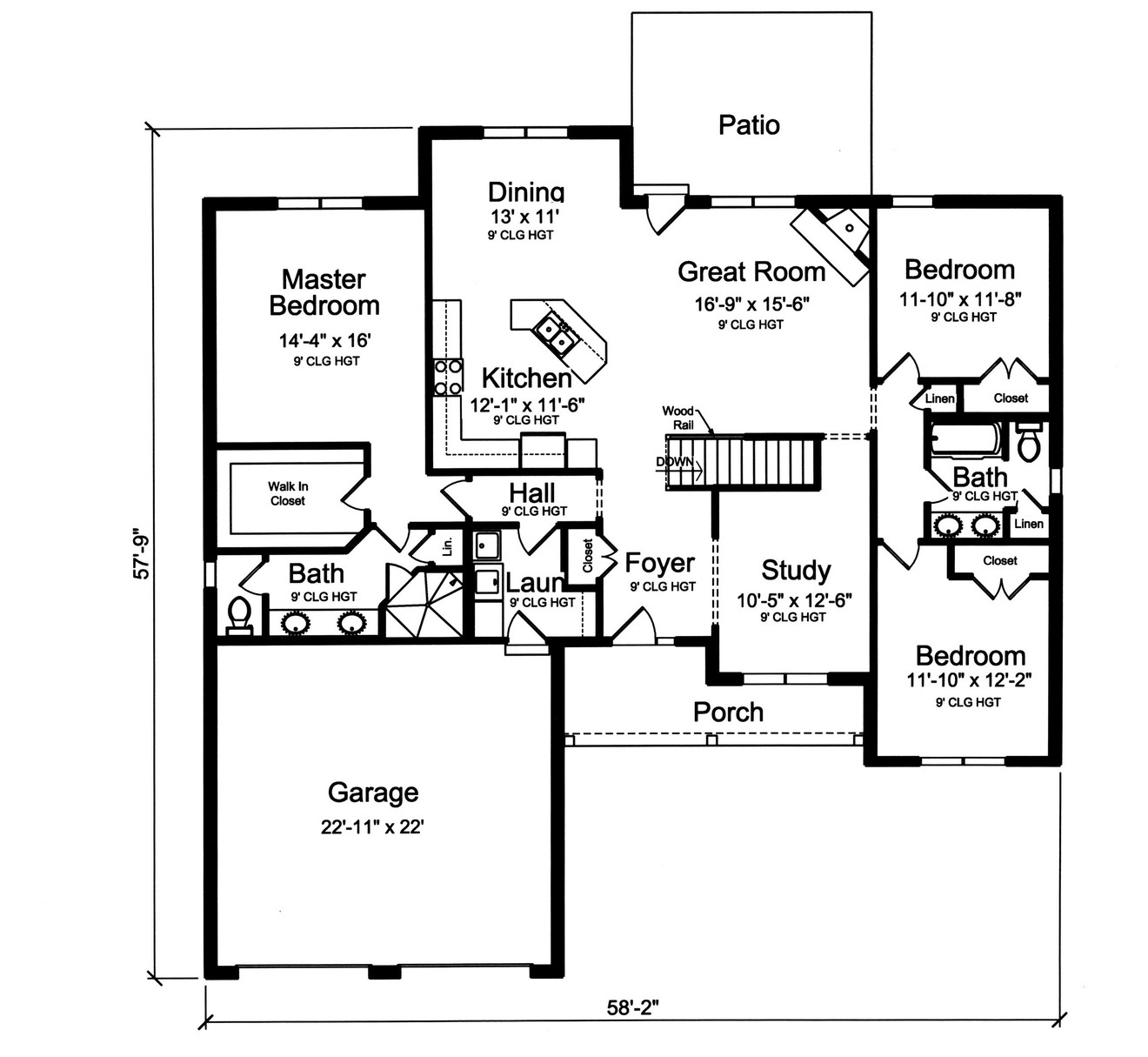

  • Traditional House Plan - Carmel 22374 - 1st Floor Plan
  • Traditional House Plan - Carmel 22374 - Basement Floor Plan
  • At a glance
  • Square Footage: Total Living 1971 Square Feet
  • Bedrooms 3 Bedrooms
  • Baths Full 2 Full Baths
  • Floors 1 Floors
  • Garage Bays Min 2 Car Garage
