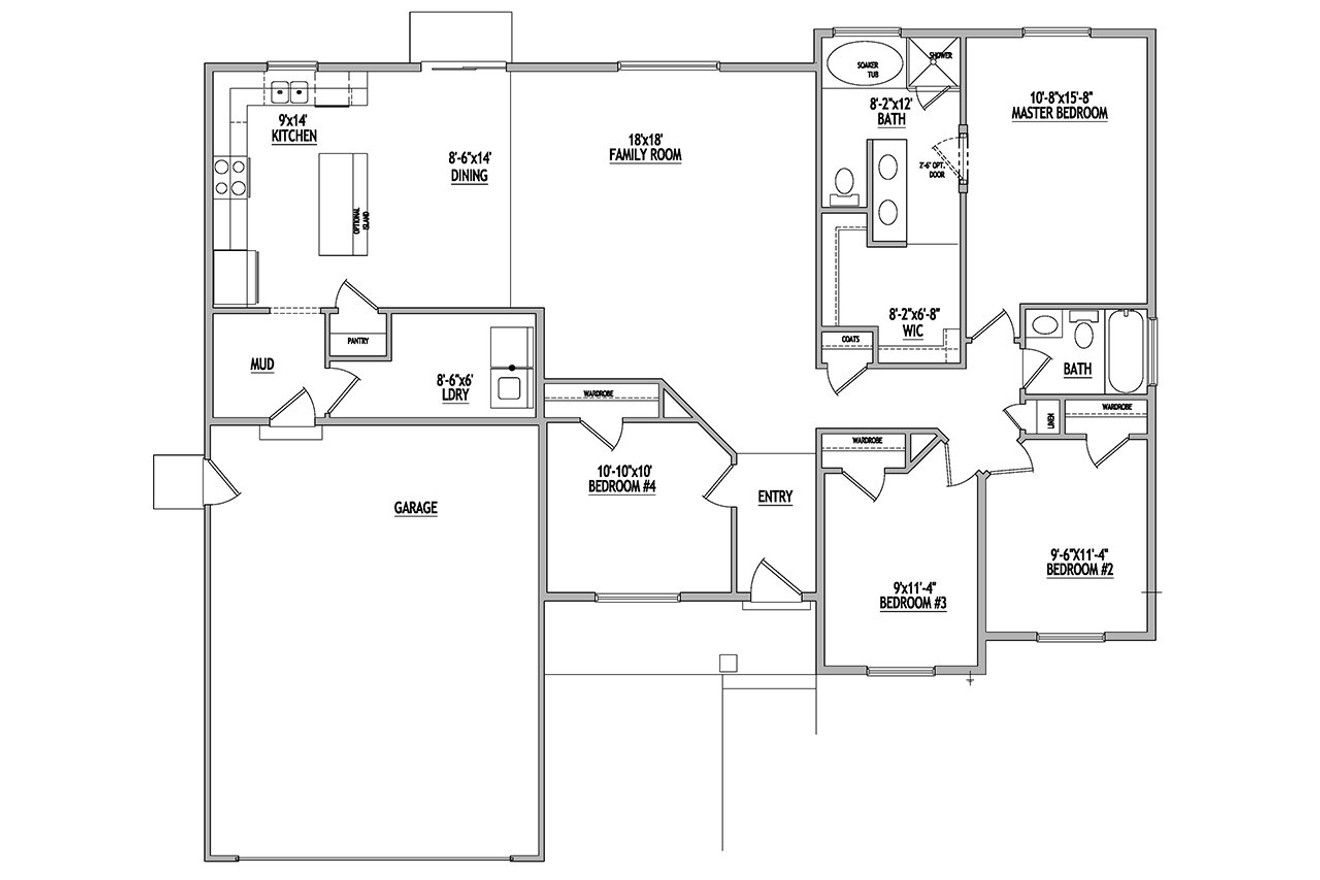

  • Ranch House Plan - 65656 - 1st Floor Plan
  • At a glance
  • Square Footage: Total Living 1677 Square Feet
  • Bedrooms 4 Bedrooms
  • Baths Full 2 Full Baths
  • Floors 1 Floors
  • Garage Bays Min 2 Car Garage

Floor plan
