Plan 99086
Photographs may show modifications made to plans. Copyright owned by designer.
- At a glance
-
1610
Square Feet
-
3
Bedrooms
-
2
Full Baths
-
2
Floors
-
2
Car Garage
- More about the plan
- Pricing
- Basic Details
- Building Details
- Interior Details
- Garage Details
- See All Details
Contact HPC Experts
Have questions? Help from our plan experts
is just a click away.
To help us answer your questions promptly, please copy and paste the following information in the fields below.
Let’s be social
Connect with us for the latest from HPC
Plan details
Basic Details
LIVING SQ FT:
1610 sq ft
1ST FLOOR SQ FT:
1070 sq ft
2ND FLOOR SQ FT:
540 sq ft
GARAGE SQ FT:
440 sq ft
PORCH SQ FT:
24 sq ft
DIMENSIONS:
41'-0"W × 48'-0"D
BUILDING HEIGHT:
28'-8"
BEDROOMS:
3
FULL BATHS:
2
HALF BATHS:
1
FLOORS:
2
PRIMARY STYLE:
Craftsman
SECONDARY STYLES:
Traditional
COLLECTIONS:
3 Bedroom House Plans, 2 Story House Plans, Narrow Lot House Plans, Small House Plans
Building Details
PRIMARY FOUNDATION:
Basement
ALTERNATE FOUNDATIONS:
Crawl Space, Concrete Slab
BUILDING LOT TYPE:
Narrow Lot (<45'), Level Lot
PRIMARY ROOF PITCH:
8/12
ROOF FRAMING:
Truss
SNOW ROOF LOAD:
30 psf.
PRIMARY WALL TYPE:
2x6 Wood Frame
EXTERIOR WALL MATERIAL:
Shake, Siding, Stone
EXTERIOR & PORCH FEATURES:
Covered Porch, Deck
Interior Details
MAIN FLOOR CEILING HEIGHT:
9'-0"
SECOND FLOOR CEILING HEIGHT:
8'
KITCHEN FEATURES:
Breakfast Nook/Dining Area, Kitchen Island
UTILITY ROOM FEATURES:
Close to Bedrooms, Main Floor Utility Room
MASTER SUITE FEATURES:
Main Floor Master Suite, Separate From Other Bedrooms, Shower Only, Walk In Closet
INTERIOR FEATURES:
Casual or Open Style Living Room, Fireplace/Wood Stove, Great Room
Garage
GARAGE:
2 Cars
GARAGE TYPE:
Attached
GARAGE ORIENTATION:
Front Entry
What's Included in a Plan Set?
Front Rendering: A rendering of the front elevation along with general construction notes.
Elevations: Shows the front, sides, and rear, including wall and window heights, exterior materials, soffit heights, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, roof, wall, and floor structure from above (if any), ceiling heights, etc.

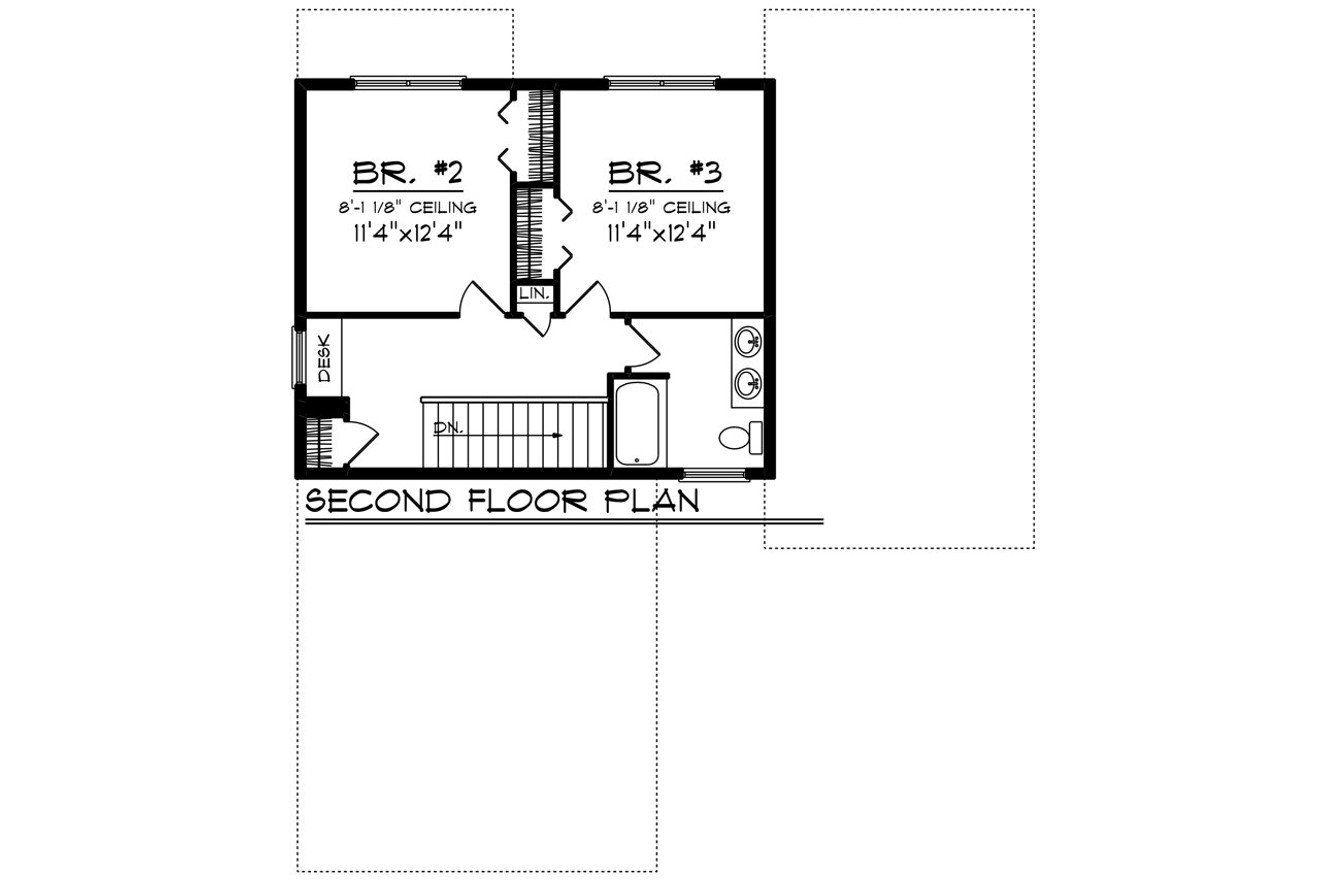

Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor roof structure as well.
Foundation Plan: Shows the location of all concrete walls and footings, beams supporting the floor structure and structure above, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Roof Plan: Shows roof outlines, lines of bearing walls below, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Stairway, kitchen elevations, and wall section details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Electrical Plan: A schematic layout of all lighting, switches and electrical outlets drawn at 1/8" = 1'. Electrical general notes are provided as well.
New to Plan Buying?
99086
Ahmann Design Inc
$1,022.00
- SKU:
- 113 - 56016
- Plan Number:
- 99086
- Pricing Set Title:
- 1501 - 1750
- Designer Plan Title:
- 56016
- Date Added:
- 10/04/2018
- Date Modified:
- 01/13/2025
- Designer:
- sales@ahmanncompanies.com
- Structure Type:
- Single Family
- Best Seller (Rank #):
- 10000
- Square Footage: Total Living:
- 1610
- Square Footage: Garage:
- 440
- Square Footage: 1st Floor:
- 1070
- Square Footage: 2nd Floor:
- 540
- Square Footage: Porch:
- 24
- Floors:
- 2
- FLOORS_filter:
- 2
- Bedrooms:
- 3
- BEDROOMS_filter:
- 3
- Baths Full:
- 2
- FULL BATHROOMS_filter:
- 2
- Baths Half:
- 1
- HALF BATHROOMS_filter:
- 1
- Ridge Height:
- 28'8"
- Overall Exterior Depth:
- 48
- Overall Exterior Width:
- 41
- Main Floor Ceiling Height:
- 9'
- Second Floor Ceiling Height:
- 8'
- Available Foundations:
- Crawl Space
- Available Foundations:
- Concrete Slab
- Available Foundations:
- Basement
- Default Foundation:
- Basement
- Available Walls:
- 2x6 Wood Frame
- Default Wall:
- 2x6 Wood Frame
- Ext Wall Material:
- Shake, Siding, Stone
- Lot Type:
- Narrow Lot (
- Lot Slope:
- Level Lot
- Roof Framing:
- Truss
- Snow Roof Load:
- 30.00
- Roof Pitch:
- 8/12
- Primary Style:
- Craftsman
- Secondary Styles:
- Traditional
- Master Suite Features:
- Main Floor Master Suite
- Master Suite Features:
- Separate From Other Bedrooms
- Master Suite Features:
- Shower Only
- Master Suite Features:
- Walk In Closet
- Interior Features:
- Casual or Open Style Living Room
- Interior Features:
- Fireplace/Wood Stove
- Interior Features:
- Great Room
- Kitchen Features:
- Breakfast Nook/Dining Area
- Kitchen Features:
- Kitchen Island
- Utility Room Features:
- Close to Bedrooms
- Utility Room Features:
- Main Floor Utility Room
- Garage Type:
- Attached
- Garage Orientation:
- Front Entry
- Garage Bays Min:
- 2
- Garage Bays Max:
- 2
- GARAGE BAYS_filter:
- 2
- Exterior & Porch Features:
- Covered Porch
- Exterior & Porch Features:
- Deck
- Collections:
- 3 Bedroom House Plans
- Styles:
- Craftsman House Plans
- Styles:
- Traditional House Plans
- Collections:
- 2 Story House Plans
- Collections:
- Narrow Lot House Plans
- Collections:
- Small House Plans
- Product Rank:
- 5909
- Plan SKU:
- 56016
- Max Price:
- 2017.00
- Min Price:
- 1022.00
- Regions:
- Midwest House Plans/Iowa Home Plans
