Plan 35828

Photographs may show modifications made to plans. Copyright owned by designer.

At a glance
3681 Square Feet
2 Floors
3 - 6 Car Garage

Floor plan

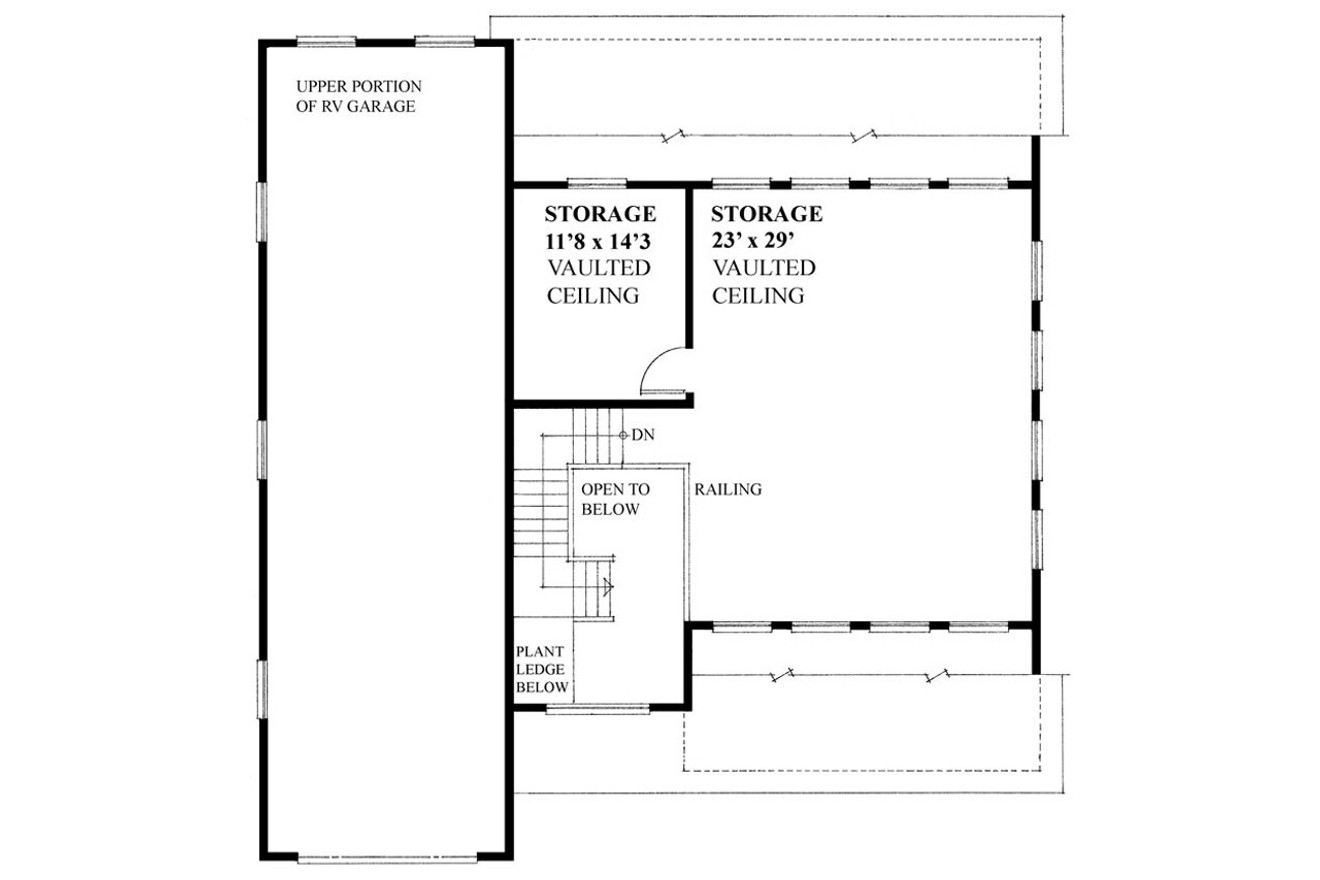

Secondary Image - Craftsman House Plan - 35828 - 2nd Floor Plan

Free modification quote

Call Us 866-688-6970 or fill out our form.

Get Started

Cost to build report

How Much Will This Plan Cost To Build?

Find Out

Plan packages What’s Included in a Plan Set?

PDF Master

Options Selected Price

Select a Foundation type

Concrete Slab

Standard

Select a Wall type

2x6 Wood Frame

Standard

Subtotal of Plan Package and Options

$0.00

Plans Now: Optional None Shipping product

Current Stock:

Free modification quote

Are you looking for additional plan options?

Get a Quote

Have questions? Prefer to order by phone? Give us a call: 1-866-688-6970

Adding to Cart The item has been added

Plan details

Basic Details

Building Details

Interior Details

Garage

What's Included in a Plan Set?

Working drawing packages usually comprises of the following drawing components:
Cover sheet with rendering and art floor plans.
General notes and specifications.
Site plan at 1/8″=1′-0″ or 1/4″= 1′-0″.
Foundation plan at 1/4″=1′-0″. (Some plans have foundation options, client to specify at time of order.)
Main floor plan at 1/4″=1′-0″.
Second floor plan at 1/4″=1′-0″, if applicable.
Structural floor / roof information indicated either on the floor plans or separate framing plans for complicated designs.
Electrical floor plans.
Minimum of two cross sections at 1/4″=1′-0″.
Details as required.
All four elevations at 1/4″=1′-0″.
Generic detail sheet.

Plans are engineered by a structural engineer, but not stamped or sealed.

Ground snow load 40 psf. (or composite roof live load 32 psf, dead load 10 psf for total roof design load 42 psf)Floor live load 40 psf.

Balcony live load 60 psf and dead load 10 psf for total design load of 70 psf.

Assumed soil bearing capacity 1560 psf.

Electrical fixtures / switches / smoke alarms by location only on floor plans.

Plumbing fixtures by location only on floor plans.

Windows are called out as generic nominal sizes on floor plans, opening directions indicated on elevations.

Items not included with plans:
Interior cabinet elevations.
Window schedules.

Situations beyond the scope of these drawings and issues which can be handled locally:
Unusual site conditions, High wind speeds. Seismic, shear walls, holddowns, nailing patterns and Local Energy Code compliance.

New to Plan Buying?

What You Need to Know About Purchasing Plans

You are about to embark on an exciting process, enjoy it!

Here is what you need to know about purchasing house plans from HPC:

• Each designer and architect plans are created with their own unique style and content. Please be sure to read the "What's included in a Plan Set" tab, and if you don't see what you are looking for, be sure to give us a call.
• The designs are not engineered. Check with the building department where the structure is being constructed to find out if an engineer's review is required. We can help facilitate engineering for your plan if you are unable to find a local professional who can assist you.
• Your building department may also require a site plan of your lot be included with your submittal for a building permit. A local design

professional in your area should be able to help you with this as well as evaluating your chosen plan to make sure it meets the local building requirements for weather and seismic conditions.
• Please read and understand your licensing agreement. This will clearly define what you can and can not do with your construction documents.
• Electronic formats of packages sales (PDF & CAD Files) are final. Printed construction documents may be exchanged with an exchange fee within 30 days of purchase.
• Unless purchasing an additional build license (one time additional or multi-build additional) you may build the structure one time. Ownership of the construction documents can not be transferred or sold.
• Unless purchasing a printable package, you may not make additional copies of the plan without the permission of the designer.

Plan Packages Explained

Ready to purchase plans and unsure which construction package to choose? We hope the following can help you decide. Please note: Plan packages vary and may not be available on all plans.

1 Set Study Package

This is a single set of prints will allow you to completely review the plan, get accurate quotes for construction costs, and contemplate custom design changes you may wish to make. Study sets are marked Not For Construction and without the license necessary to legally build the home. Don't worry though, we allow a 100% upgrade credit towards a buildable licensed construction package within one year of your 1 Set Study Package purchase.

5 and 8 Set Print Packages

These are licensed print packages of the construction documents printed and shipped to you.

PDF Print Package

This PDF package is a non-modifiable, print only PDF file that saves time, gas, money, and paper! Many contractors and building jurisdictions are working with digital formats of the construction documents. The PDF print package allows for you or your contractor to distribute the construction documents to sub-contractors, use electronic submittals to apply for the building permit, and print the sets you need when you need them.

Plans Now

Don't wait - get your plans NOW! This digital plan package is a downloadable Print PDF Package (non-modifiable, print only). Includes a single build license - electronically signed and emailed to you immediately after placing your order - with permissions to make copies of the plan locally as needed.

PDF Master

An unlocked modifiable PDF file. Same conveniences as the PDF print package with the added benefit which allows your local professional to make engineering mark-ups or design changes using compatible software.

CAD Electronic Files

By using CAD compatible software that use .dwg or .dxf file formats enables you or a local professional to modify the construction documents and integrate those changes throughout the entire plan. Once the modifications or engineering is incorporated into your design, you can reproduce as many copies of the plan needed to build the structure.

Still unsure which package to choose? You may want to discuss this with your builder or give us a call.

How to Evaluate a Plan

When looking at plans, most often it's the exterior profile that will first grab your attention. You love the exterior, it's exactly what you envisioned, but what about the inside of the design? It's important to spend some time and digest the design's interior elements. Here are a few considerations to think about when evaluating if this is the right plan for you.

• First off, think about how you live in your home.
• Do you or your family prefer to have one or two places to gather all together, or do you prefer to have more private places within your home.
• Consider how you move through the home in your day to day life. Visually walk through the front door, what do you walk through or by? Do the same from your back door and garage entrances.
• Is your family life more formal or casual and do the living spaces of the design complement your lifestyle?
• Will your existing furniture fit within the spaces?
• If you have a family, do you want the master suite close to the secondary bedrooms or separated?
• Do you entertain? Are there elements within the floor plan that allow for entertaining with ease?
• How do you take care of laundry? Would you prefer the laundry room to be close by the kitchen, garage, or close to the bedrooms?
• Storage space? Is there enough?
• Consider your access to the outside? Do you want to extend your indoor living to the outside? Is there adequate porches or patios for how you want to enjoy your yard? Where will you place your grill or patio furniture?
• The view? What are you going to see when you look out your windows? Need more privacy or need more accessibility to a view?
• Make sure your garage will accommodate your cars, RV, or boat. Adequate storage? Do you want or need a door to the exterior beyond the opening garage doors? Utility sink? Space for an additional refrigerator or freezer?
• Consider things about your current home/residence that you don't like. By pin pointing these areas of your current home that you don't care for, you can make sure they are addressed in the next.

After reviewing giving it careful consideration you may find that the plan would be perfect with a few design changes. HPC can certainly help you with that with our customization services.

The Customization Process

So you've found that almost perfect design, and find yourself saying, "if only". Whether it's changing the size of a room, adding space or features, or moving things around, we can help you take that almost perfect design and make it perfect for you.

It's exciting to create a plan to fit your exact needs and wants whether it's your home, garage or even a potential investment property.

When you locate your plan, select the "Get Started" button located on the plan detail page. Here you will be able to share with us the changes to the interior and/or the exterior of the design. You can even upload a sketch if you have one. Complete the necessary contact information and select "Submit Request".

HPC will then forward your request to a designer to evaluate your changes and provide a quote within two business days. HPC is a "true quote" plan website. That means HPC will not mark-up the modification quote, we want to help keep costs down for you!

35828

Regan Swallow

$745.00

(No reviews yet) Write a Review

SKU:: 126 - Plan 3681
UPC:
Plan Number:: 35828
Pricing Set Title:: Plan 3681
Designer Plan Title:: Plan 3681
Date Added:: 05/30/2019
Date Modified:: 01/31/2024
Designer:: homes@reganswallowdesign.com
Family Plan:: Plan 2353
Structure Type:: Garage
Best Seller (Rank #):: 10000
Square Footage: Total Living:: 3681
Square Footage: Garage:: 1176
Square Footage: 1st Floor:: 2629
Square Footage: 2nd Floor:: 1052
Square Footage: Porch:: 46
Square Footage: RV Garage:: 935
Square Footage: Workshop:: 285
Floors:: 2
FLOORS_filter:: 2
Ridge Height:: 27'6"
Overall Exterior Depth:: 55
Overall Exterior Width:: 52.6
Main Floor Ceiling Height:: 9'
Second Floor Ceiling Height:: 8'
Available Foundations:: Concrete Slab
Default Foundation:: Concrete Slab
Available Walls:: 2x6 Wood Frame
Default Wall:: 2x6 Wood Frame
Ext Wall Material:: Siding
Lot Slope:: Level Lot
Roof Framing:: Truss
Snow Roof Load:: 32.00
Roof Pitch:: 12/12
Primary Style:: Craftsman
Secondary Styles:: Traditional
Garage Bays Min:: 3
Garage Bays Max:: 6
GARAGE BAYS_filter:: 3
Garage Features:: RV Garage
Garage Features:: Storage
Garage Features:: Workshop or Workbench
Exterior & Porch Features:: Covered Porch
Styles:: Craftsman House Plans
Styles:: Traditional House Plans
Collections:: 2 Story House Plans
Collections:: Garage, Garage w/Living, Carports
Product Rank:: 3232
Plan SKU:: Plan 3681
Max Price:: 745.00
Min Price:: 745.00
Regions:: Canadian House Plans/British Columbia Home Plans

Plan Description

The RV garage portion of this modern garage has a sixteen-foot-high ceiling accessed though a fourteen-foot-high by twelve-foot-wide overhead door. The double car garage has a nine-foot-high ceiling with two eight-foot-high by nine-foot-wide overhead doors. The covered porch opens into the vaulted entry with direct access to the workshop. The workshop provides easy access to both the RV and double car garage areas. The second level is a blank canvas ready to be transformed into a future apartment, exercise room or private home office.

Roof Framing: Combination of I-joist & Trusses
