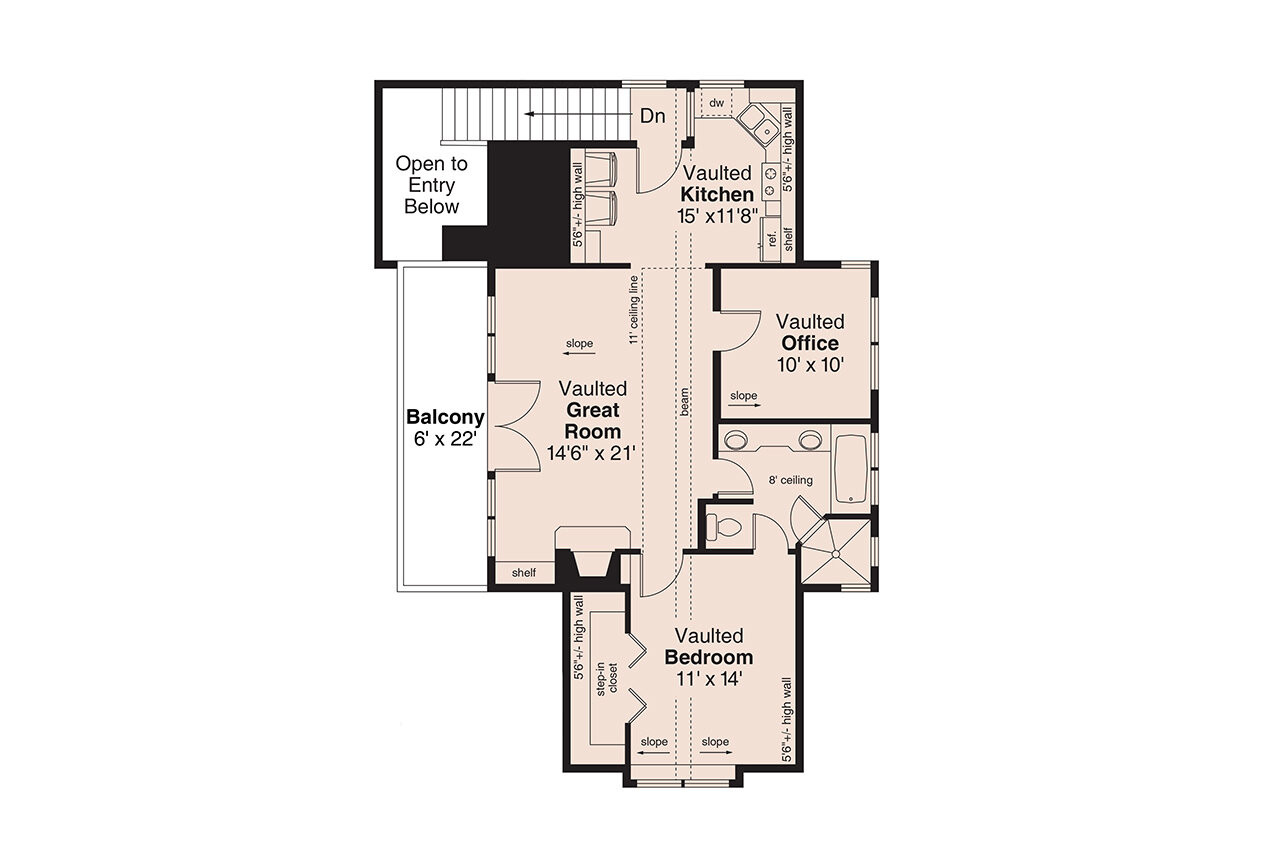

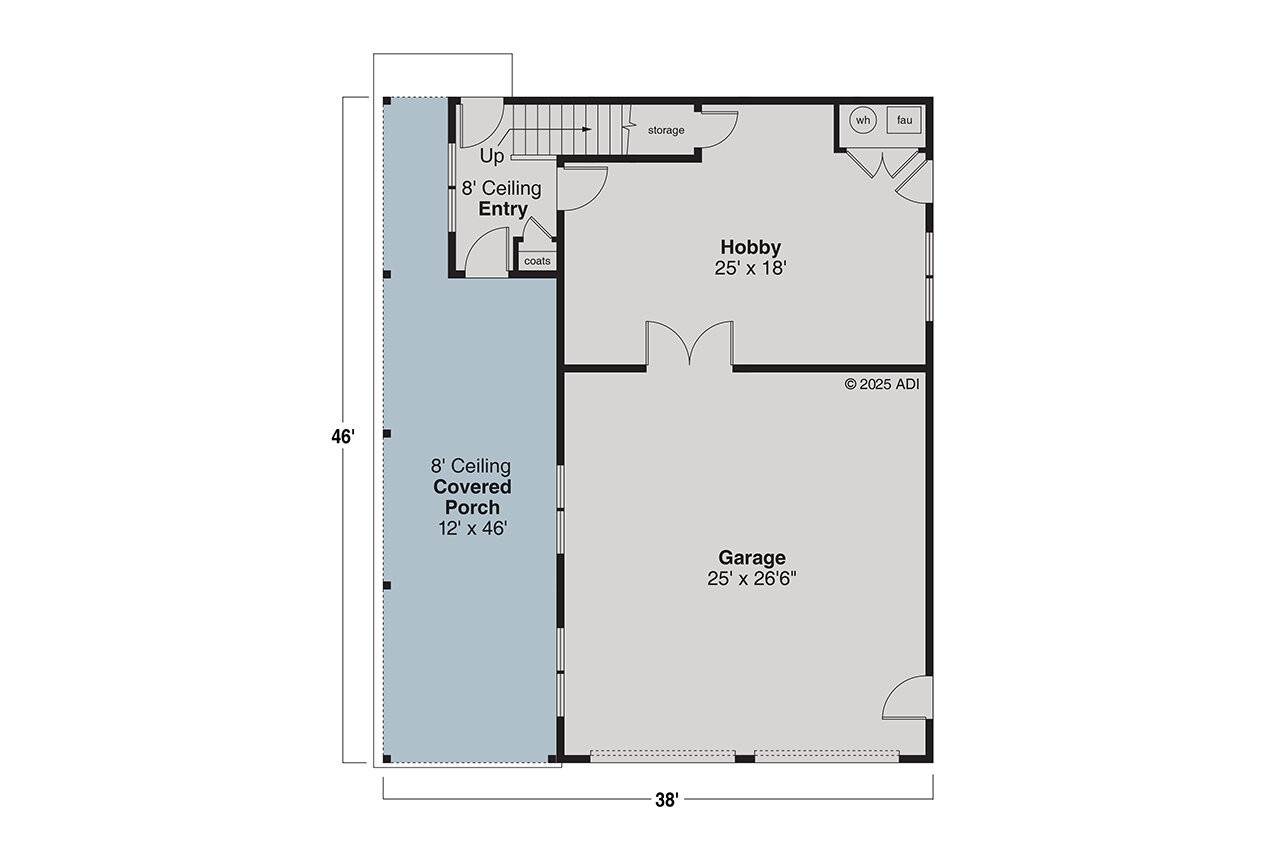

This Craftsman style 2 car garage plan has two 10' wide and 8' tall garage doors. Behind the garage is a generously sized hobby room with stairs that lead to the apartment above. At the top of the stairs is a small landing and door that leads into the vaulted kitchen with a washer and dryer tucked to the right along with space for a wine cooler. The vaulted great room features a fireplace and a set of double doors that lead to the balcony. Also upstairs is a vaulted office and bedroom along with a full bathroom including a soaking tub.
Plan 62272
Photographs may show modifications made to plans. Copyright owned by designer.
- At a glance
-
2236
Square Feet
-
1
Bedrooms
-
1
Full Baths
-
2
Floors
-
2
Car Garage
- More about the plan
- Pricing
- Basic Details
- Building Details
- Interior Details
- Garage Details
- See All Details
Contact HPC Experts
Have questions? Help from our plan experts
is just a click away.
To help us answer your questions promptly, please copy and paste the following information in the fields below.
Let’s be social
Connect with us for the latest from HPC
Plan details
Basic Details
Building Details
Interior Details
Garage
What's Included in a Plan Set?
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Concept Plan Packages:
Includes PDF and DWG files of the:
Elevations
Floor Plan (s)
Roof Outline
The concept plan package can save you valuable time and resources by providing the essentials of the design allowing for a local designer, architect, or engineer to complete the construction documents to the building practices, requirements, and site conditions in your area. Concept plans include an unlimited build license (non-transferable).
New to Plan Buying?
62272
Associated Designs
$0.00
- SKU:
- 101 - 20-119
- Plan Number:
- 62272
- Pricing Set Title:
- Garage CAT 4
- Designer Plan Title:
- 20-119
- Date Added:
- 03/08/2016
- Date Modified:
- 01/24/2024
- Designer:
- info@associateddesigns.com; jessica@associateddesigns.com
- Note Plan Packages: PDF Print Package:
- Best Value!
- Note Plan Packages: Plans Now:
- PDF Download!
- Family Plan:
- 20-080
- Structure Type:
- Garage
- Best Seller (Rank #):
- 1
- Square Footage: Total Living:
- 2236
- Square Footage: Deck:
- 458
- Square Footage: Garage:
- 1290
- Square Footage: 2nd Floor:
- 946
- Floors:
- 2
- FLOORS_filter:
- 2
- Bedrooms:
- 1
- BEDROOMS_filter:
- 1
- Baths Full:
- 1
- FULL BATHROOMS_filter:
- 1
- Ridge Height:
- 23'8"
- Overall Exterior Depth:
- 30
- Overall Exterior Width:
- 31
- Main Floor Ceiling Height:
- 9'
- Available Foundations:
- Concrete Slab
- Default Foundation:
- Concrete Slab
- Available Walls:
- 2x6 Wood Frame
- Default Wall:
- 2x6 Wood Frame
- Ext Wall Material:
- Siding/Shingle
- Lot Slope:
- Level Lot
- Roof Framing:
- Stick
- Snow Roof Load:
- 65.00
- Roof Pitch:
- 8/12
- Primary Style:
- Craftsman
- Secondary Styles:
- Country
- Collections:
- Accessory Structures
- Interior Features:
- Den, Office, Library, or Study
- Interior Features:
- Great Room
- Utility Room Features:
- Close to Kitchen or Garage
- Utility Room Features:
- Second Floor Utility Room
- Garage Orientation:
- Front Entry
- Garage Bays Min:
- 2
- Garage Bays Max:
- 2
- GARAGE BAYS_filter:
- 2
- Garage Features:
- Kitchenette
- Garage Features:
- Storage
- Garage Features:
- w/Living Space
- Garage Features:
- Workshop or Workbench
- Styles:
- Craftsman House Plans
- Styles:
- Country House Plans
- Collections:
- Plans Now
- Collections:
- 2 Story House Plans
- Collections:
- Garage, Garage w/Living, Carports
- Product Rank:
- 6513
- Plan SKU:
- 20-119
- Max Price:
- 1325.00
- Min Price:
- 450.00
