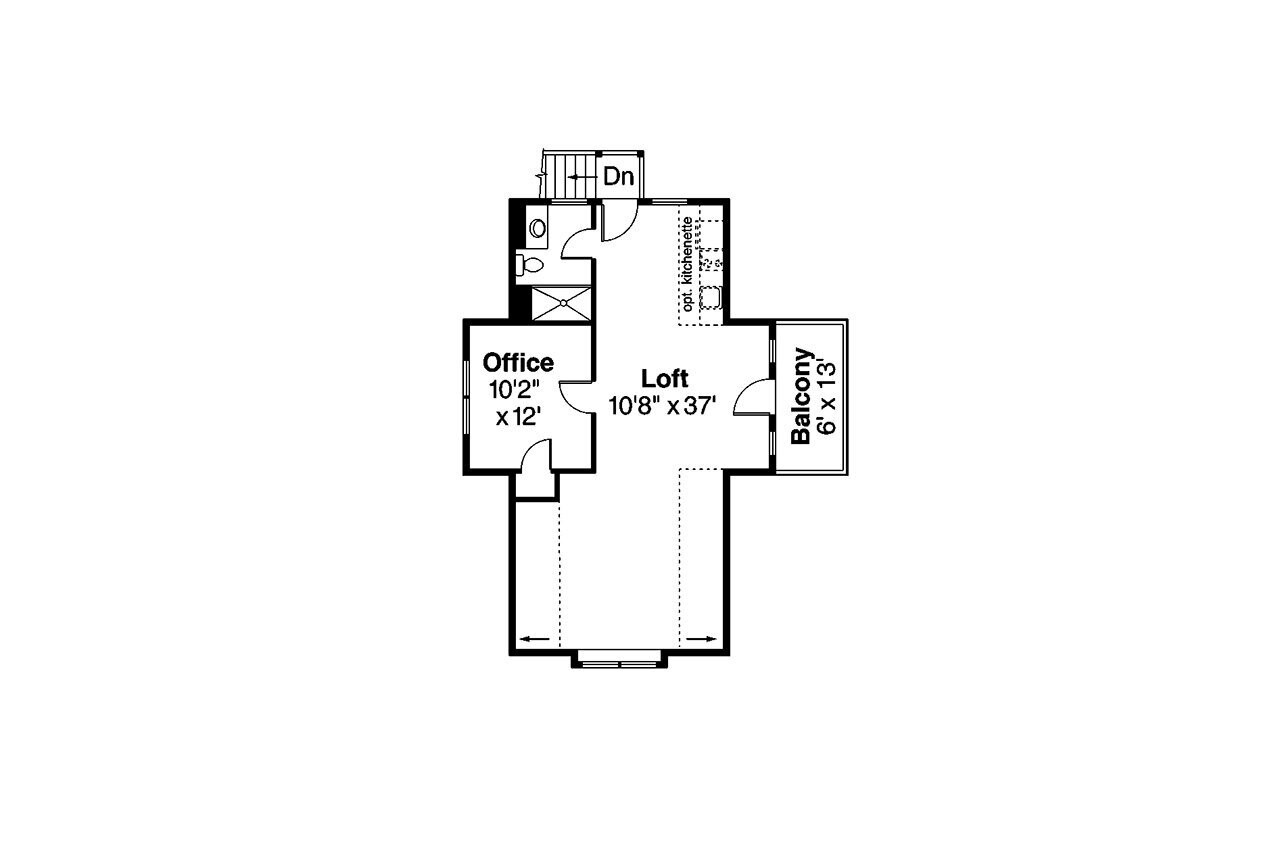

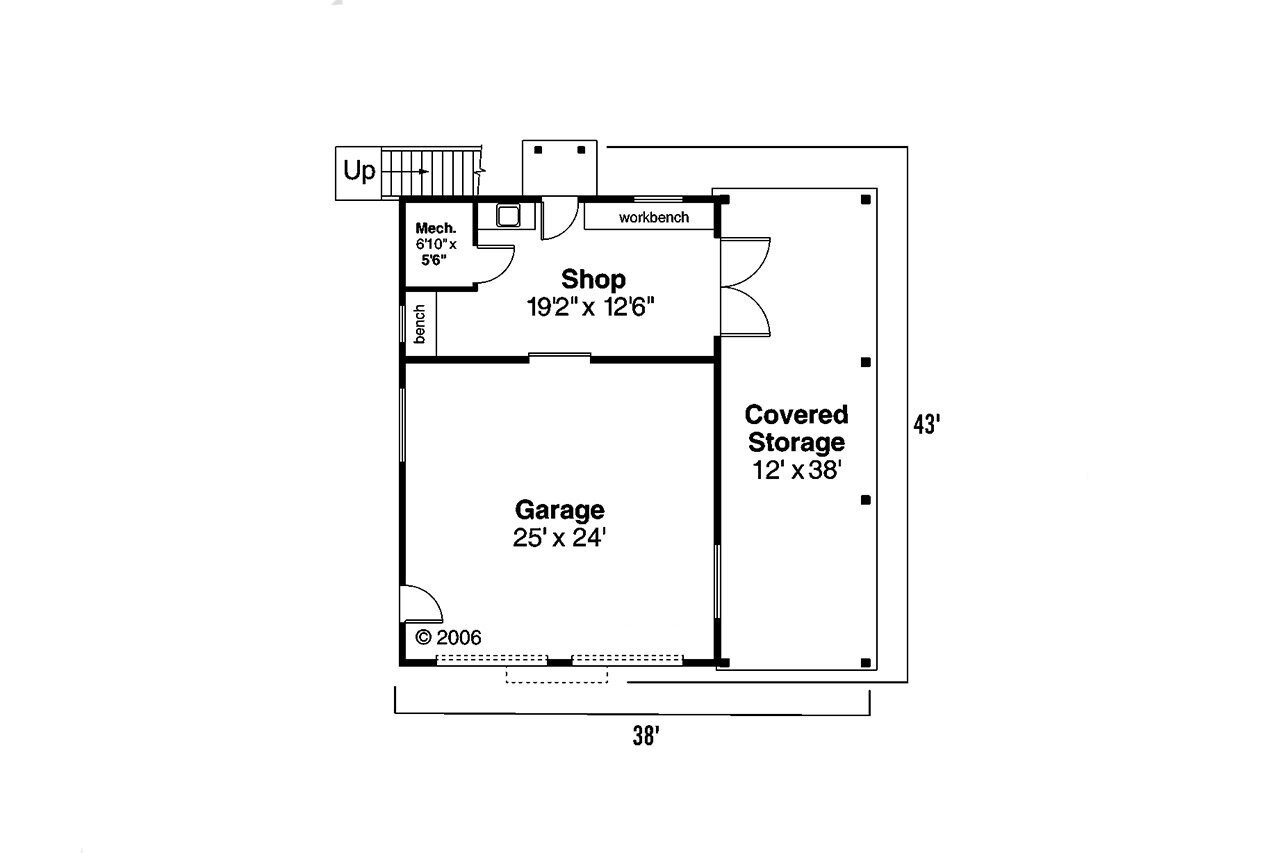

This Craftsman garage plan can park up to two cars. Both doors are the same size at 9' wide and 8' tall. In the back is a shop with sink and a mechanical room. On the second floor there is a loft with space for a sink, cook top and refrigerator. There is also an office and full bathroom on the second floor.
Plan 60082
Photographs may show modifications made to plans. Copyright owned by designer.
- At a glance
-
1792
Square Feet
-
1
Bedrooms
-
1
Full Baths
-
2
Floors
-
2
Car Garage
- More about the plan
- Pricing
- Basic Details
- Building Details
- Interior Details
- Garage Details
- See All Details
